Ixia Optixia lsm10gxm8ng-01 8-Port Sfp+ Ngy 10GE Fusion Load Module

ZOMBIE COMPONENTSTHE LARGEST IXIA RESELLER ONLINE

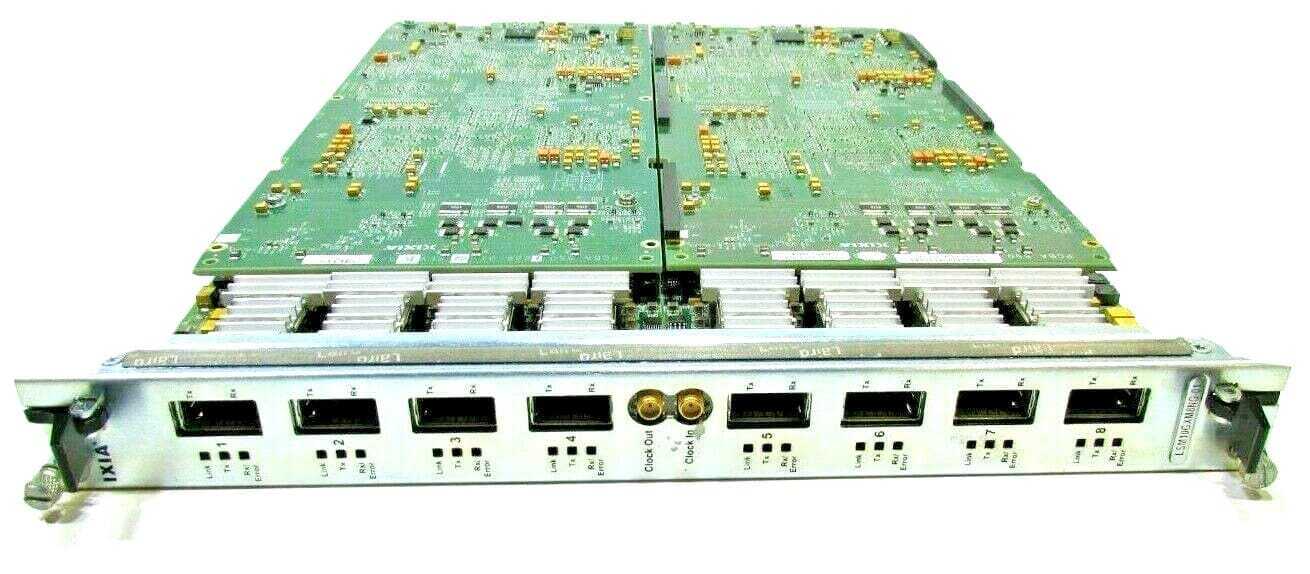

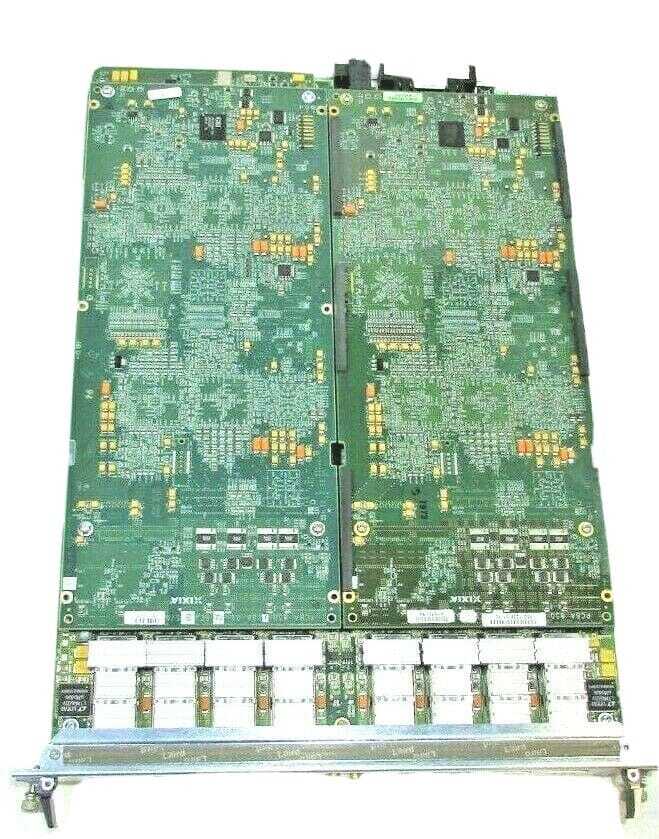

Ixia Optixia LSM10GXM8NG-01 8-port SFP+ NGY 10GE FUSION Load Module

LSM10GXM8NG-01
IXIA LSM10GXM8NG Fusion-Enabled 10GE Load Modules

LSM10GXM2NG, LSM10GXM4NG, and LSM10GXM8NG Load Modules

The architectural breakthrough of Ixia’s 10 Gigabit Ethernet (10GE) LSM10GXM test load modules delivers an industry-leading, high-density, and affordable layer 2 through 7, 10GE IP test solution. Under Ixia’s Fusion program, LSM10GXM2NG, LSM10GXM4NG, and LSM10GXM8NG load modules are capable running IxN2XTM applications as well as IxNetwork™, IxLoadT™, and other Ixia applications.

This unprecedented cross-platform compatibility provides an extraordinary value proposition to existing N2X™ users in supporting both Ixia applications and IxN2X applications on a high density platform. Also, it allows the user-base presently employing N2X and XM platforms to leverage their hardware across both. In conjunction with IxNetwork, IxLoad, Test Conductor, and other Ixia applications, IxN2X provides support for a wide breadth of protocols and application testing

Ixia's LSM10GXM2NG, LSM10GXM4NG, and LSM10GXM8NG load modules deliver high control-plane performance and scalability for both layer 3 routing protocol emulation and upper layer 4 through 7 stateful traffic testing.

Key Features

Ability to run IxN2X, IxNetwork, IxLoad, and other Ixia applications on a single hardware platform

Makes the existing IxN2X systems extensible with XM chassis, LSM10GXM4NG, and LSM10GXM8NG load modules, and timing distribution module (TDM)

Seamless IxN2X application support with no changes to APIs

IxN2X Test Conductor plug-in for automation support

Comprehensive L2-7 testing

Access to Ixia’s superior L4-7 capability

Award-winning, field-proven, high-density 10G hardware based on NGY family architecture

Industry's highest-density 10GE test solution (96 ports per 10U chassis)

2, 4, and 8 port variants

LSM10GXM8NG

LSM10GXM4NG

LSM10GXM2NG

Processor per port/user per port

512MB of capture memory

Performance compared to legacy N2X modules:

8-port 50% increase to N2X XR-2

4-port comparable to N2X XS-2

2-port comparable to N2X XS-2

Specifications

Feature
IxN2X Mode
Ixia Native Mode

Load modules

LSM10GXM8NG
LSM10GXM4NG
LSM10GXM2NG

LSM10GXM8NG
LSM10GXM4NG
LSM10GXM2NG

Number of ports per module

8 / 4 / 2

8 / 4 / 2

Number of chassis slots per module

1

1

Maximum ports per chassis:





– XM12 High Performance

96 / 48 / 24

96 / 48 / 24

-XM2 Desktop

16 / 8 / 4

16 / 8 / 4

Supported transceivers(optical and copper)

XFP

XFP

Per-port CPU speed and memory

800MHz /1GHz, 1GB [1]

800MHz /1GHz, 1GB [1]

Per-port capture buffer

512MB

512MB

Interface protocols

10GE LAN

10GE LAN/WAN

Latency resolution

10ns

20ns

Layer 2/3 routing protocol emulation

Yes

Yes

Layer 4-7 application traffic testing

Yes

Yes

Operating temp. range

41°F to 95°F (5°C to 35°C), ambient air [2]

Application Support

IxN2X Mode
Ixia Native Mode

IxN2X: Integrated L2-3 data/control plane performance and functional testing with synchronous Ethernet and routing/bridging protocol emulation

Tcl API: Custom user script development for L2-7 testing

IxExplorer™: L2-3 wire-speed traffic generation and analysis including FCoE

IxAutomate: Automated test environment for L2-3 data/control plane testing, includes RFC-based test suites

IxNetwork: Integrated L2-3 data/control plane performance and functional testing. Data center Ethernet (FCoE) and routing/bridging emulation includes: BGP4/4+, OSPFv2/v3, IS-ISv4/v6, RIP/RIPng, RSVP-TE, LDP, L2 MPLS VPNs, L3 MPLS VPNs, VPLS, IGMPv1/v2/v3, MLDv1/v2, PIM-SMv4/v6, STP, RSTP, EIGRP, and MSTP.

IxLoad: L4-7 performance testing

Tcl API: Custom user script development for L2-7 testing



Fusion Program

The following diagram shows how to extend IxN2X systems for use with XM chassis and LSM10GXM4NG and LSM10GXM8NG load modules, as well as with Ixia native applications on the same setup, simultaneously (on separate modules).

The TDM distributes timing and events:

Acts as the timing master for all components

Distributes events between XM chassis and IxN2X chassis

Enables simultaneous operation of Ixia applications and IxN2X applications (not on the same module)



IXOS Compatibility:

 Windows
9.01 (current release), 9.00 (current release), 8.51 EA Patch 1 (current release), 8.51 EA, 8.50 EA, 8.42 EA Patch 1, 8.42 EA, 8.41 EA, 8.40 EA Patch 2, 8.40 EA Patch 1, 8.40 EA, 8.31 EA, 8.30 EA Patch 1, 8.30 EA, 8.21 EA, 8.20 GA, 8.20 EA Patch 1, 8.20 EA, 8.13 EA, 8.12 EA, 8.10 EA Patch 1, 8.03 EA Patch 1, 8.03 EA, 8.01 GA, 8.01 EA Patch 1, 8.01 EA, 8.00 EA, 6.91 EA Patch 1, 6.91 EA, 6.90 GA, 6.90 EA, 6.80 GA, 6.80 EA SP1, 6.80 EA, 6.70 GA, 6.70 EA Patch 2, 6.70 EA Patch 1, 6.70 EA, 6.62 EA, 6.60 GA, 6.60 EA SP1, 6.60 EA Patch 1, 6.60 EA, 6.50 GA, 6.50 EA SP1, 6.50 EA Patch2, 6.50 EA Patch1, 6.50 EA Patch 1v, 6.50 EA, 6.40 GA, 6.40 EA, 6.30 GA, 6.30 EA SP2 Patch 1, 6.30 EA SP2, 6.30 EA SP1 Patch2, 6.30 EA SP1 Patch1, 6.30 EA SP1, 6.30 EA, 6.20 EA SP1, 6.20 EA P1, 6.20 EA, 6.10 GA P2, 6.10 GA P1, 6.10 GA, 6.10 EA SP2 Patch1, 6.10 EA SP2 (current release), 6.10 EA, 6.00 EA Patch1, 6.00 EA Patch 2, 6.00 EA, 5.70 GA (current release), 5.70 EA SP2, 5.70 EA SP1 Patch1, 5.70 EA SP1, 5.70 EA Patch1, 5.70 EA



ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	20.0000 lbs
Dimensions	24 × 20 × 6 in
Brand	Ixia
Condition	Seller refurbished
Condition Description	LIKE NEW *** 60 DAY RETURNS *** COMES WITH TEST REPORT
MPN	LSM10GXM8NG-01
