Ixia Optixia lsm1000xmvr12-01, 12-Pt Dual Media Gigabit Ethernet Load Module

ZOMBIE COMPONENTSTHE LARGEST IXIA RESELLER ONLINE

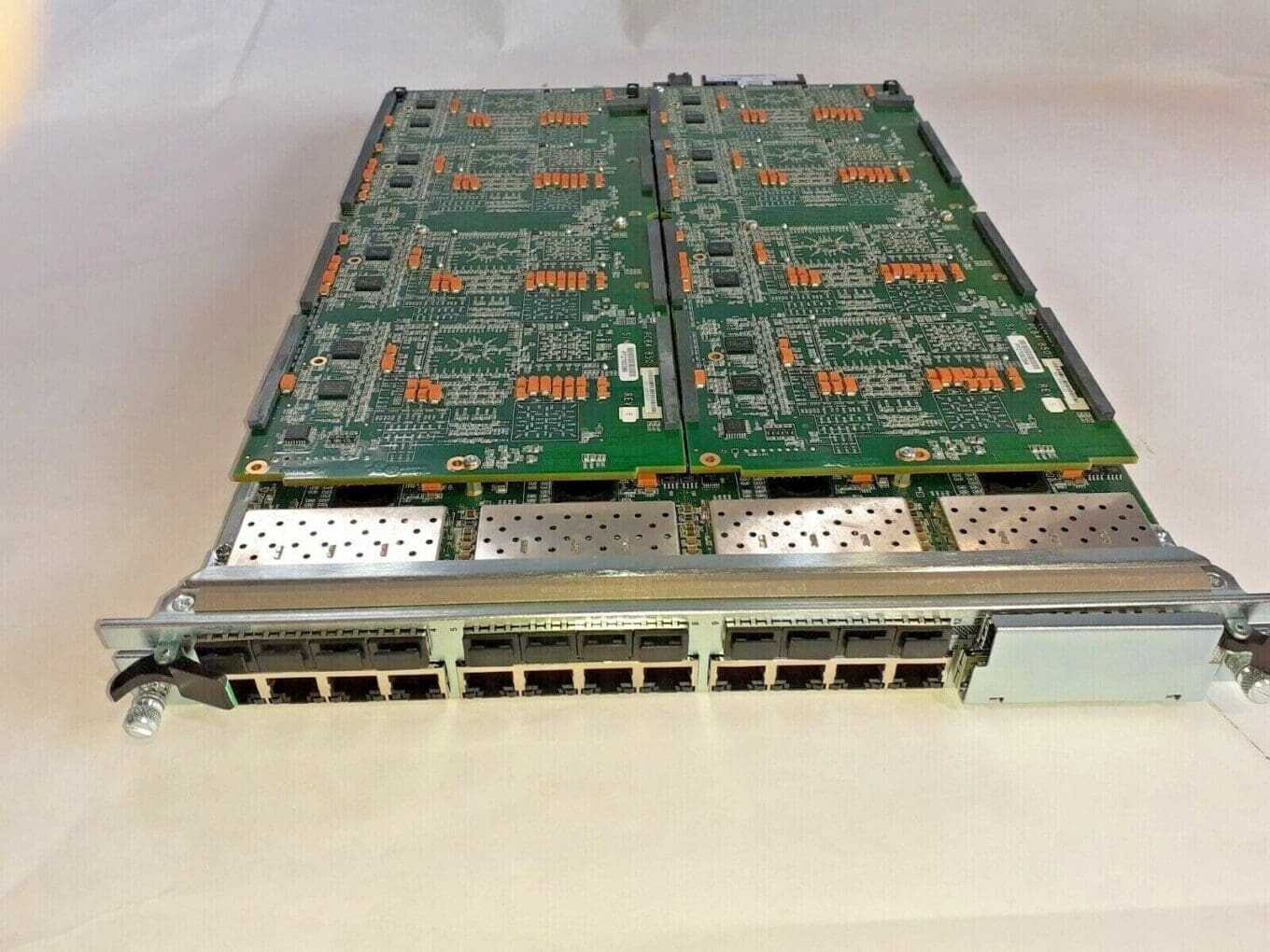

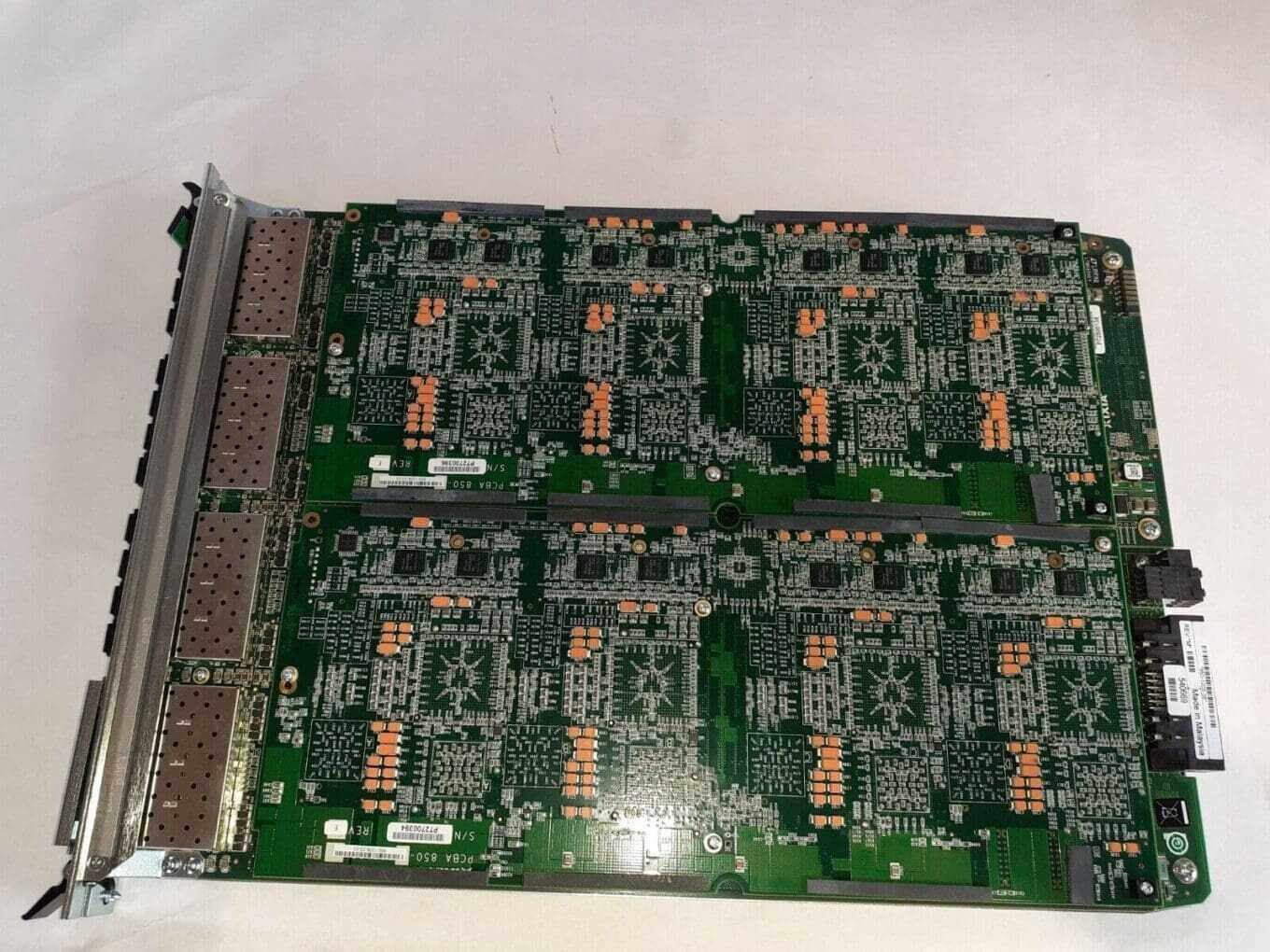

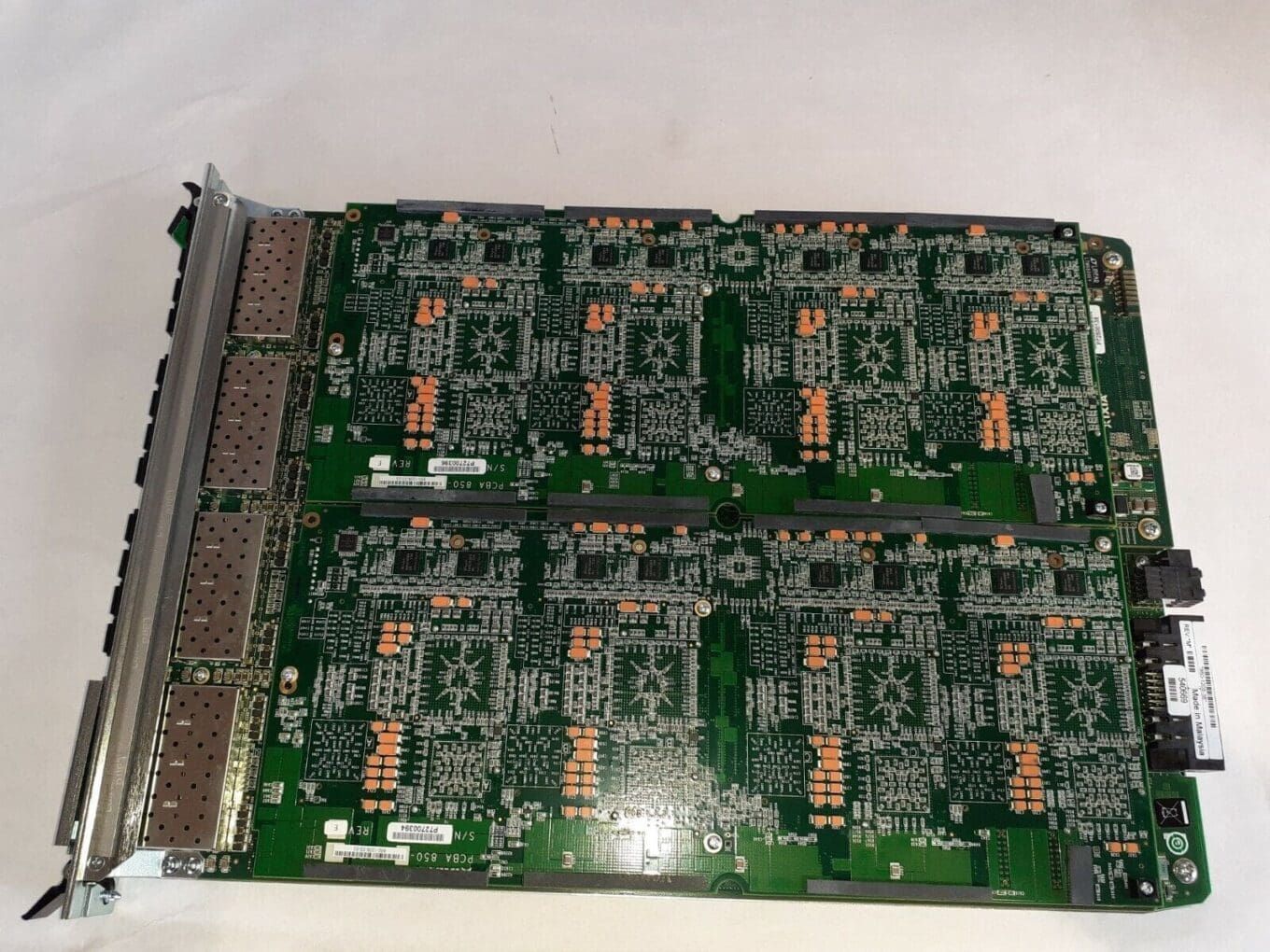

Ixia Optixia LSM1000XMVR12-01, 12-pt Dual Media Gigabit Ethernet
Load Module

Specifications
Load ModuleLSM1000XMVR16-01
LSM1000XMVR12-01
LSM1000XMVR8-01
LSM1000XMVR4-01
Connector TypeRJ45 or SFP

Connection SpeedAuto-negotiable 10/100/1000 Mbps Ethernet over copper and Gigabit/100FX Ethernet over fiber

Port CPU / Memory400MHz / 256MB

Number of Ports16 / 12 / 8 / 4

Maximum Ports per Chassis192

Layer 2-3 Routing Protocol and EmulationYes

Layer 4-7 Application Traffic TestingNo

Capture Buffer per Port8MB

Number of Transmit Flows per Port (sequential values)Billions

Number of Transmit Flows per Port (arbitrary values)32K

Number of Trackable Receive Flows per Port64K

Number of Stream Definitions per Port256 in Packet Stream Mode (sequential) or Advanced Stream (interleaved) modes. Each Stream Definition can generate millions of unique traffic flows.

Transmit EngineWire-speed packet generation with timestamps, sequence numbers, data integrity signature, and packet group signatures

Receive EngineWire-speed packet filtering, capturing, real-time latency for each packet group, data integrity, and sequence checking

User Defined Field (UDF) FeaturesFixed, increment or decrement by user-defined step, value lists, range lists, cascade, random, and chained

Table UDF FeatureComprehensive packet editing function for emulating large numbers of sophisticated flows. Up to 32K table UDF entries are supported on the LSM1000XMVR ports.

Filters48-bit source/destination address, 2×128-bit user-definable pattern and offset, frame length range, CRC error, data integrity error, sequence checking error (small, big, reverse)

Data Field (per stream)Fixed, increment (Byte/Word), decrement (Byte/Word), random, repeating, user-specified up to 13K bytes

Statistics and Rates (Counter Size: 64-Bit)Link State, Line Speed, Frames Sent, Valid Frames Received, Bytes Sent/Received, Fragments, Undersize, Oversize, CRC Errors, VLAN Tagged Frames, User-Defined Stat 1, User- Defined Stat 2, Capture Trigger (UDS 3), Capture filter (UDS 4), User-Defined Stat 5, User-Defined Stat 6, 8 QoS counters, Data Integrity Frames, Data Integrity Errors, Sequence Checking Frames, Sequence Checking Errors, ARP, and Ping requests and replies

Error GenerationCRC (Good/Bad/None), Undersize, Oversize

Packet Flow StatisticsReal-time statistics to track up to 64K packet flows with throughput and latency measurements on the LSM1000XMVR16/12/8/4 load modules.

Latency Measurements20 ns resolution

IPv4, IPV6, UDP, TCPHardware checksum generation

Frame Length ControlsFixed, random, weighted random, or increment by user-defined step, random, weighted random

Operating Temperature Range41°F to 86°F (5°C to 30°C), ambient air [1]

ApplicationsIxNetwork: Integrated Layer 2-3 data/control plane performance and functional testing, supporting routing, bridging, MPLS, and multicast protocols.
IxAutomate: Automation environment providing pre-built tests for Layer 2-3 data and control plane testing
IxExplorer: : Layer 2-3 wire-speed traffic generation and analysis

Flexible Packet Generation
Each Ixia GE XMVR test port is capable of generating precisely controlled network traffic at up to wire speed of the network interface using Ixia’s IxExplorer test application. Up to millions of packet flows can be configured on each port with fully customizable packet header fields. Flexible header control is available for Ethernet, IPv4/v6, IPX, ARP, TCP, UDP, VLANs, QinQ, MPLS, GRE, and many others. Payload contents can also be customized with incrementing/decrementing, fixed, random, or user-defined information. Frame sizes can be fixed, varied according to a pattern, or randomly assigned across a weighted range. Rate control can be flexibly defined in frames per second, bits per second, percentage of line rate, or inter-packet gap time.

Real-Time Latency
Packets representing different traffic profiles can be associated with Packet Group Identifiers (PGIDs). The receiving port measures the minimum, maximum, and average latency in real time for each packet belonging to different groups. Measurable latencies include:Instantaneous latency and inter-arrival time where each packet is associated with one group ID
Latency bins, where PGIDs can be associated with a latency range
Latency over time, where multiple PGIDs can be placed in “time buckets” with fixed durations
First and last time stamps, where each PGID can store the timestamps of first and last received packets


Transmit Scheduler
Two modes of transmission are available – Packet Stream and Advanced Stream Scheduler:
Packet Stream Scheduler In Packet Stream Scheduler mode, the transmit engine allows configuration of up to 256 unique sequential stream groupings on each port. Multiple streams can be defined in sequence, each containing multiple packet flows defined by unique characteristics. After transmission of all packets in the first stream, control is passed to the next defined stream in the sequence. After reaching the last stream in the sequence, transmission may either cease, or control may be passed on to any other stream in the sequence. Therefore, multiple streams are cycled through, representing different traffic profiles to simulate real network traffic.
Advanced Stream Scheduler In Advanced Stream Scheduler mode, the transmission of stream groupings is interleaved per port. For example, assume a port is configured with three streams. If Stream 1 is defined with IP packets at 20% of line rate, Stream 2 is defined with TCP packets at 50% of line rate, and Stream 3 is defined with MPLS packets at 30% of line rate, data on the port will be transmitted at an aggregate utilization of 100% with interleaved IP, TCP, and MPLS packets.
Extensive Statistics
Real-time 64-bit frame counts and rates
Spreadsheet presentation format for convenient manipulation of statistics counters
Eight Quality of Service counters (supporting 802.1p, DSCP, and IPv4 TOS measurements)
Six user-defined statistics that use a trigger condition
Extended statistics for ARP, ICMP, and DHCP
Transmit stream statistics for frame counts and rate
External logging to file for statistics and alerts
Audible and visual alerts with user-definable thresholds

Data Capture
Each port is equipped with 8 MB of capture memory, capable of storing tens of thousands of packets in real time. The capture buffer can be configured to store packets based on user-defined trigger and filter conditions. Decodes for IPv4, IPv6, UDP, ARP, BGP-4, IS-IS, OSPF, TCP, DHCP, IPX, RIP, IGMP, CISCO ISL, VLAN, and MPLS are provided.

Data Integrity
As packets traverse through networks, IP header contents may change resulting in the recalculation of packet CRC values. To validate device performance, the data integrity function of Gigabit Ethernet XMVR modules allows packet payload contents to be verified with a unique CRC that is independent of the packet CRC. This ensures that the payload is not disturbed as the device changes header fields.

Sequence and Duplicate Packet Checking
Sequence numbers can be inserted at a user-defined offset in the payload of each transmitted packet. Upon receipt of the packets by the Device under Test (DUT), out-of sequence errors or duplicated packets are reported in real time at wire-speed rates. The user can define a sequence error threshold to distinguish between small versus big errors, and the receive port can measure the amount of small, big, reversed, and total errors. Alternatively, the user can use the duplicate packet detection mode to observe that multiple packets with the same sequence number are received and analyzed.

Routing/Bridging Protocol Emulation
Ixia's Gigabit Ethernet XMVR modules support performance and functionality testing using routing/bridging protocol emulation via the IxNetwork and IxAutomate applications. Protocols supported include IPv4/IPv6 routing (BGP-4, OSPF, IS-IS, and RIP), MPLS (RSVP-TE, LDP, L2 MPLS VPNs, L3 MPLS VPNs, and VPLS), multicast (IGMP, MLD, and PIM-SM), and bridging (STP, RSTP, MSTP). Medium scalable scenarios can be created emulating up to 100 routers advertising thousands of routes per test port. Up to wire-speed Layer 2/3 traffic can be automatically created to target routes and MPLS tunnels.

Tcl API
Ixia's Gigabit Ethernet XMVR modules are supported by a comprehensive Tcl Application Programming Interface (API). This API allows users to develop custom scripts, and integrate the modules into automated test environments.
Product Ordering Information
944-0010 LSM1000XMVR16-01
16-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps Ethernet Load Module for Optixia XM Series Chassis, CPU per port, 256MB processor memory; reduced performance and scalability – supports routing protocols. Does not include SFP transceivers.
944-0033 LSM1000XMVR12-01
12-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps Ethernet Load Module for Optixia XM Series Chassis, CPU per port, 256MB processor memory; reduced performance and scalability – supports routing protocols. Does not include SFP transceivers.
944-0031 LSM1000XMVR8-01
8-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps Ethernet Load Module for Optixia XM Series Chassis, CPU per port, 256MB processor memory; reduced performance and scalability – supports routing protocols. Does not include SFP transceivers.
944-0029 LSM1000XMVR4-01
4-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps Ethernet Load Module for Optixia XM Series Chassis, CPU per port, 256MB processor memory; reduced performance and scalability – supports routing protocols. Does not include SFP transceivers.
SFP-LX
SFP Transceiver – 1310nm LX
SFP-SX
SFP Transceiver – 850nm SX
SFP-CU
SFP Transceiver – RJ-45 Copper converts a 1000Base-X optical Ethernet port into a 1000Base-T copper Ethernet port.[1] The maximum operating temperature for these load modules lowers the maximum operating temperature to these limits when used in an XM2 or XM12 chassis.

ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	20.0000 lbs
Dimensions	24 × 20 × 6 in
Brand	Ixia
Condition	Seller refurbished
Condition Description	LIKE NEW *** 60 DAY RETURNS *** COMES WITH TEST REPORT
MPN	LSM1000XMVR12-01
