Ixia fcmgxm4s-01, 4-Port Fibre Chnl Load Module, With 2GBPS, 4GBPS, 8GBPS, Sfp+

ZOMBIE COMPONENTSTHE LARGEST IXIA RESELLER ONLINE

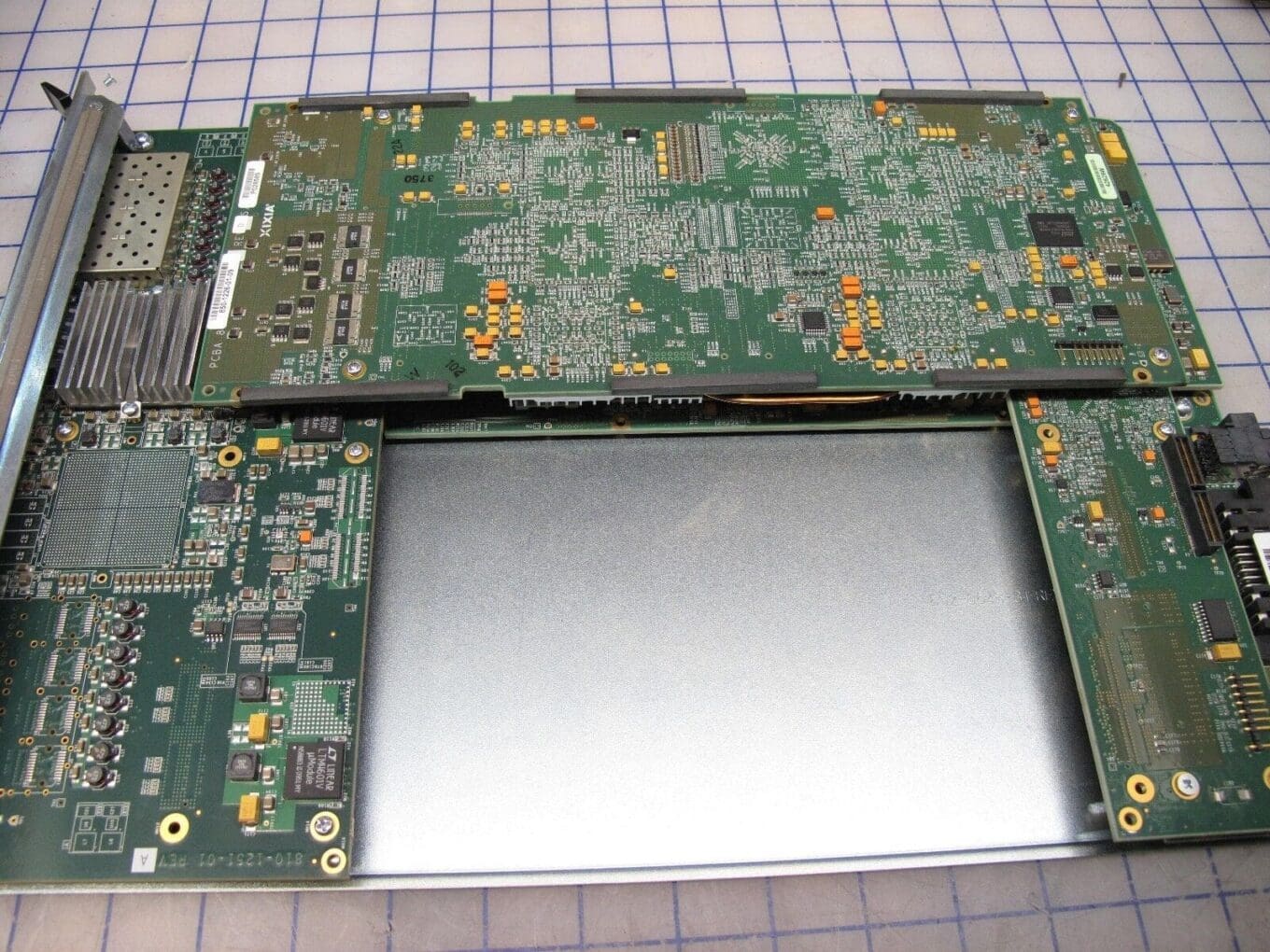

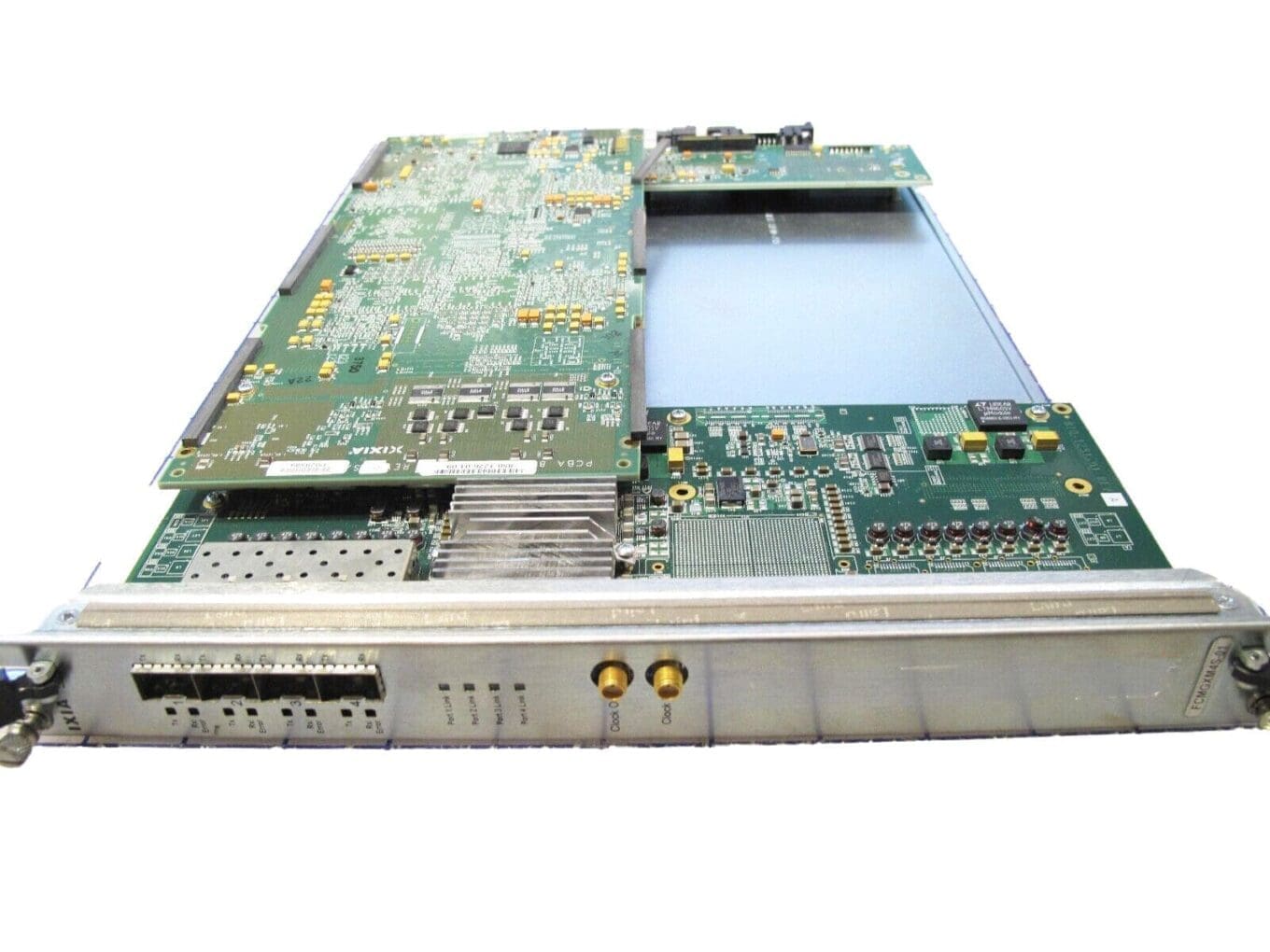

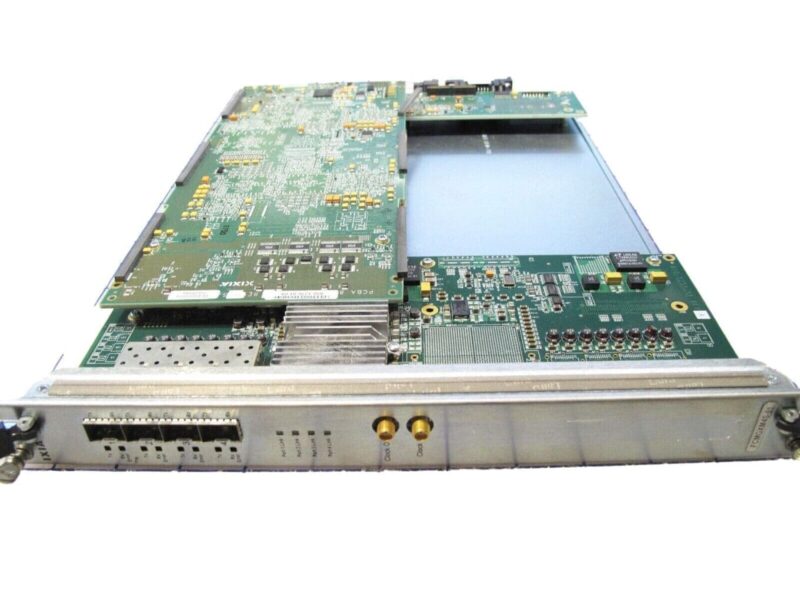

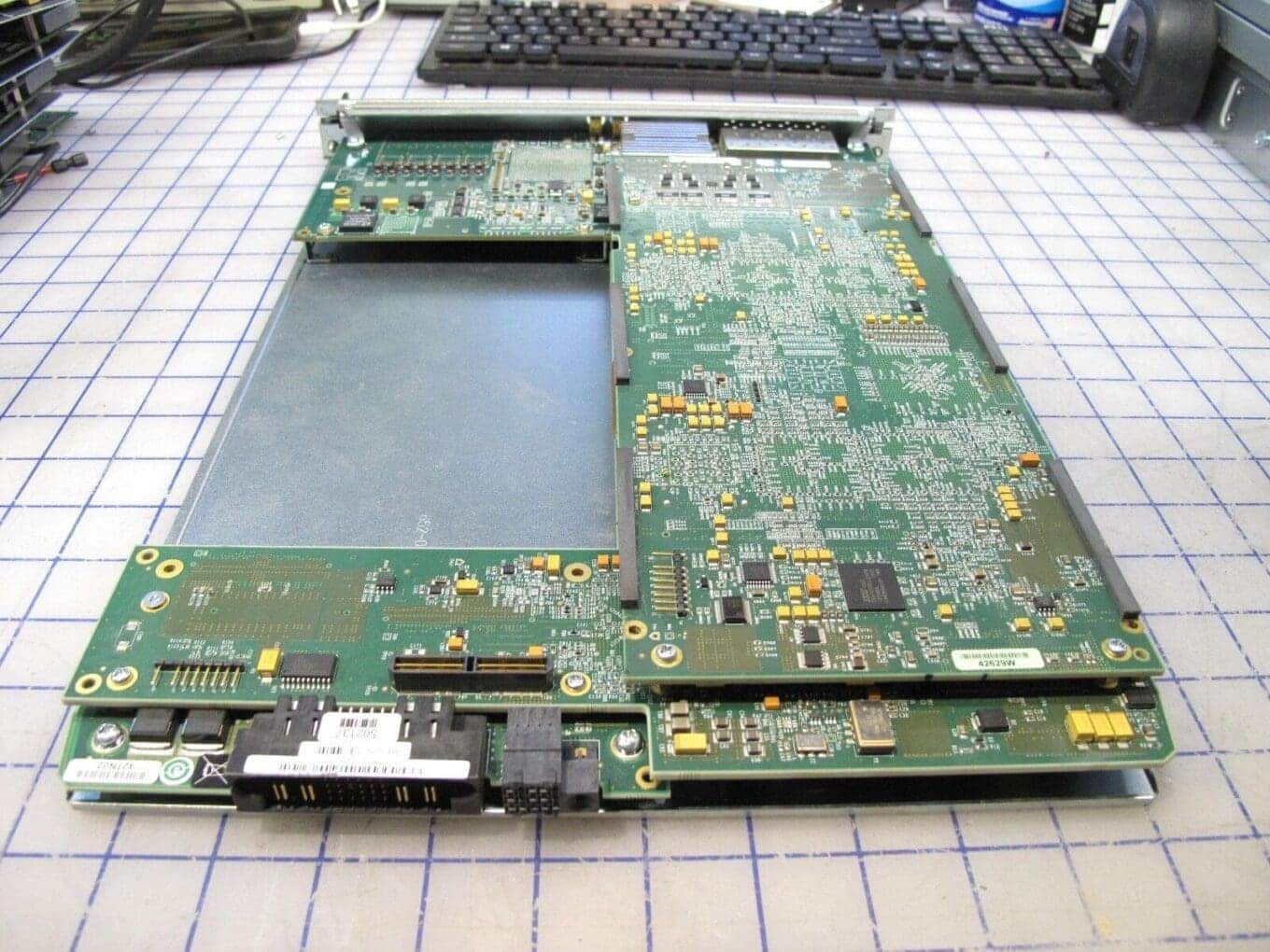

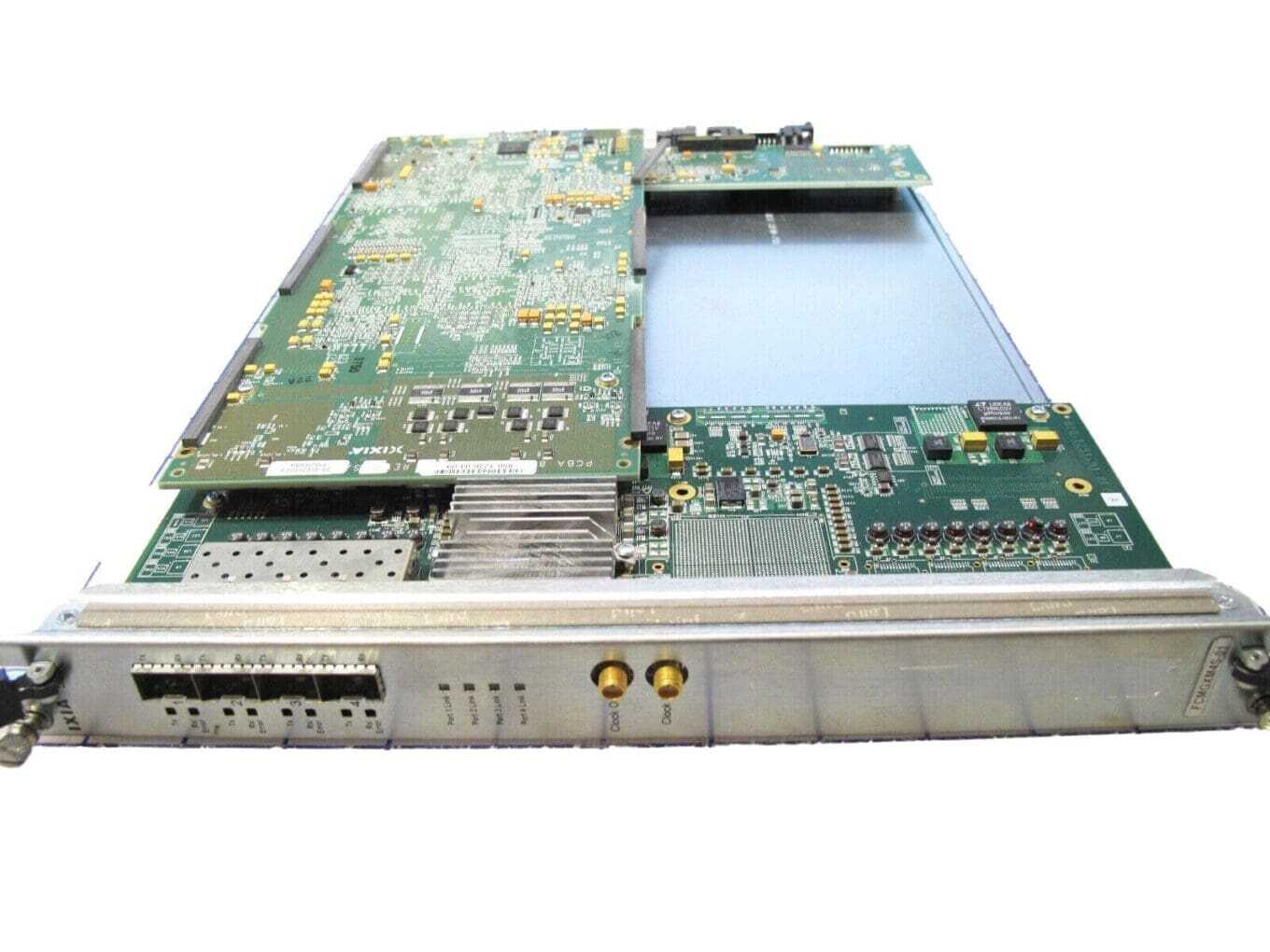

IXIA FCMGXM4S-01, 4-Port Fibre Chnl Load Module, with 2Gbps, 4Gbps,
8Gbps, SFP+



L o a d M o d u l e

P a r t N u m – b e r s

D e s c r i p t i o n



FCMGXM4

950-0001

FCMGXM4S-

4-Port Fibre Channel Load Module, with 2 Gbps, 4 Gbps and 8 Gbps support and SFP+ interface. It requires one or more



01

SFP+ transceiver options.



F e a t u r e

S p e c i f i c a t i o n

slots per module





Maximum ports per chassis

XM12 High Performance chassis is required for 88 ports to be installed in a single chassis. Up to eleven 8-port load modules are supported in an XM12 High Per- formance chassis, and up to 8 8-port load modules are supported in a standard XM12 chassis. The XM2 chassis supports up to 16 ports.



Supported trans- ceivers

SFP+ Tri-rate 2/4/8G duplex LC connector 850nm multimode 1310 single mode.

Per-port CPU speed and memory



800 MHz, 1 GB/1 GHz, 1 GB.

Per-port capture buf- fer



512 MB

Interface speeds

2/4/8G FC

FC-1 Primitives

Yes

FC-2 Protocols

Yes

FCP Support

Yes

Number of transmit flows per port (sequential values)



Billions

Number of transmit flows per port (arbit- rary values)



1 million

Number of trackable receive flows per port



1 million



Number of stream definitions per port

256

In packet stream (sequential) or advanced stream (interleaved) mode, each stream definition can generate millions of unique traffic flows.



Table UDF

1 million entries.

Comprehensive packet editing function for emulating large num- bers of flows. Entries of up to 256 bytes, using lists of values can be specified and placed at designated offsets within a stream.

Each list consists of an offset, a size, and a list of values in a table format.

Packet flow stat- istics



Tracks 1 million flows.

Chapter 30 – IXIA FCMGXM Load Modules



F e a t u r e

S p e c i f i c a t i o n



Transmit engine

Wire-speed packet generation with timestamps, sequence num- bers, data integrity signature, and packet group signatures.



Receive engine

Wire-speed packet filtering, capturing, real-time latency, and inter-arrival time for each packet group, data integrity, and sequence checking.

User defined field features

Fixed, increment, or decrement by user-defined step, value lists, range lists, cascade, random, and chained fields.



Filters

2×128-bit user-definable pattern and offset, frame length range, CRC error, data integrity error, and sequence checking error (small, big, reverse).

Data field per stream

Fixed, increment (byte/word), decrement (byte/word), random, repeating, user-specified, CJPAT, and CRPAT fields.

Error generation

CRC (good/bad), oversize frame, parity error, and R_RDY errors.

Latency meas- urements



20 nanoseconds resolution in packet timestamp.



Statistics

The new statistics are as follows:

Link State and speed

(Tx) Bytes, Frames, (count and rate)

(Rx) Bytes, Frames, (count and rate)

(Rx) CRC errors, Oversize (2112), Undersize (24) (count and rate)

Packet group Latency

Data Integrity

Capture Trigger/Filter (count and rate)

User Defined Stats: 6 (count and rate)

Protocol Server Tx/Rx (count and rate)

Remote B-B Credit Value

Remote B-B Credit Count

R_RDY Tx/Rx (count and rate)

Disparity errors (count and rate)

Stats: Port CPU status

Transmit Duration

Invalid EOF Count/Rate

Code Error Count/Rate

FLOGI Sent

FLOGI LS_ACC received

FLOGO Sent

PLOGI Sent

PLOGI LS_ACC received



F e a t u r e

S p e c i f i c a t i o n





Operating tem- perature range



41°F to 95°F (5°C to 35°C), ambient air.

PLOGI Request received

PLOGO Sent

PLOGO Received

FDISC Sent

FDISC LS_ACC Received

NS Registration Sent

NS Registration Successful

NxPort Enabled

NxPort-IDs Acquired

NS Query Sent

NS Query Successful

PRLI Sent

PRLI Successful

PRLI Received

RSCN Received

RSCN Acc Transmitted

SCR Transmitted



ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	26.0000 lbs
Dimensions	22 × 18 × 6 in
Brand	Ixia
Condition	Used
Condition Description	USED – FULLY TESTED ON XM-12 … COMES WITH TEST REPORT
MPN	FCMGXM4S-01
