Ixia EIM40G2Q 40GE Ethernet Impairment Load Module

The Impairment load modules have a single-slot form factor and are inserted into a high- density XM2 or XM12 chassis to provide 2 to 12 modules per chassis configuration. The load modules offer 4x1GE, 4x10GE, or 2x40GE Ethernet interfaces that can emulate 64, 32, or 8 unidirectional network clouds respectively.

The high density 1GE, 10GE, and 40GE Impairment test modules are ideal for emulating real-life network impairments. The modules can emulate a WAN environment and sim- ulate network characteristics, such as delay, delay variation, and impairments, such as packet loss, duplication, and re-ordering.

EIMs support the Impairment feature in IxNetwork and IxLoad applications that provides a quick and easy way to set up impairments, across multiple emulated WAN links. Using EIM ports, IxNetwork and IxLoad is capable of generating a number of impairments, for example packet drops, latency, or packet re-ordering, which replicates real-life WAN tra- versal conditions, whereby packet flows are impaired in different modes when traversing a network.

The EIM40G2Q load module is not supported in IxLoad.



The key features of EIM are as follows:

High density 1GE, 10GE, and 40GE load modules

Realistic, high-scale WAN emulation

Hardware-based impairment generation

Integration with traffic generation, protocol emulation and analysis

Scale port counts with high port density

Simulate ultra-high latency: 500ms on each 40GE link, 600ms on each 10GE link and 6 sec. on each 1GE link at line rate traffic

Leverage a single hardware chassis for traffic load modules

Use IxNetwork for integrated traffic generation and impairment

Quickly configure traffic flows and apply impairment

Automate tests

Analyze measurements with StatViewer interface

Achieve 1GE, 10GE and 40GE line-rate impairment on all frame sizes (64 to 9180 byte frames) with no packet loss

EIM40G2Q

Up to 6 modules per XM12 chassis

16 traffic classifiers per up/down link, total of 32 uni- directional classifiers per module for granular traffic clas- sification

4 impairment profiles per link, total of 8 profiles per module for granular service class emulation

Emulates 32 unidirectional or 16 bidirectional network clouds per port pair

Emulate 64 unidirectional or 32 bidirectional network clouds per module

Easy to use packet analyzer based selection interface

Traffic classifier support for numerous protocols and applications like bridging, Routing, Carrier Ethernet, Broadband, MPLS, IPv6, and miscellaneous application- layer protocols

Multiple service/traffic class emulation through inde- pendent and unique impairments per profile

Emulate network cloud aggregation using mask and match support for packet classifiers

Real-time preview of classifier match on live traffic

Support for 8×16 bit frame matchers for each traffic clas- sifier

Delay up to 500ms at 40GE, and up to 1s per module by cascading ports

Delay resolution of 1µs

Emulate SLA validation by using normal/Gaussian, expo- nential, uniform, and custom probability distribution for delay variations

Packet drop at rates of up to 100% in clusters up to 65535 packets

Reorder packets at rates of up to 50% in clusters up to 255 packets

Packet duplication at a rate up to 100% in clusters up to 65535 packets by creating up to 31 copies of each packet

WAN forwarding error emulation

Ethernet FCS correction

Emulation of DS3, OC3, DS1, DS0, E1, E3, and cable modem link speeds using rate limiting

ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

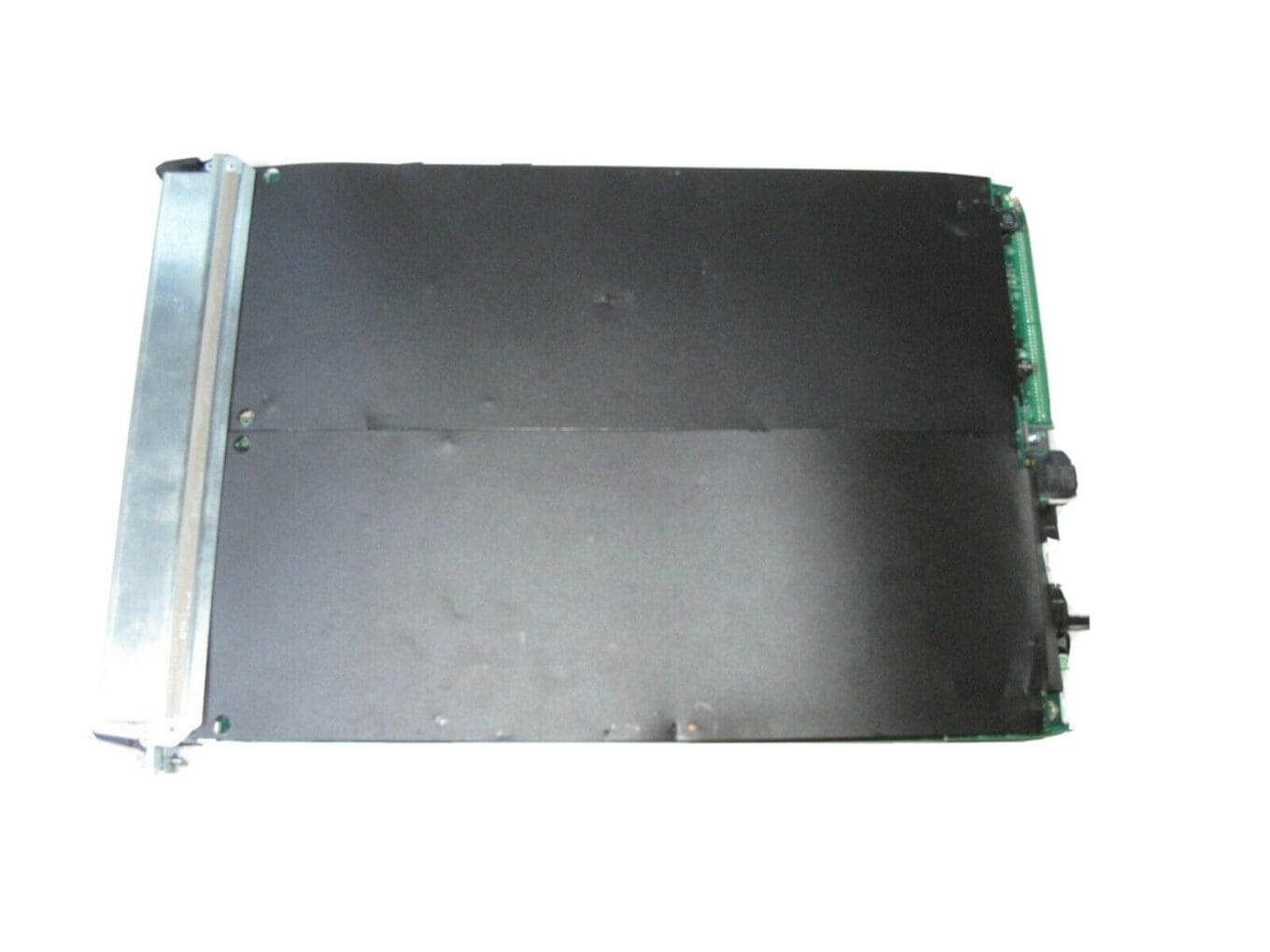

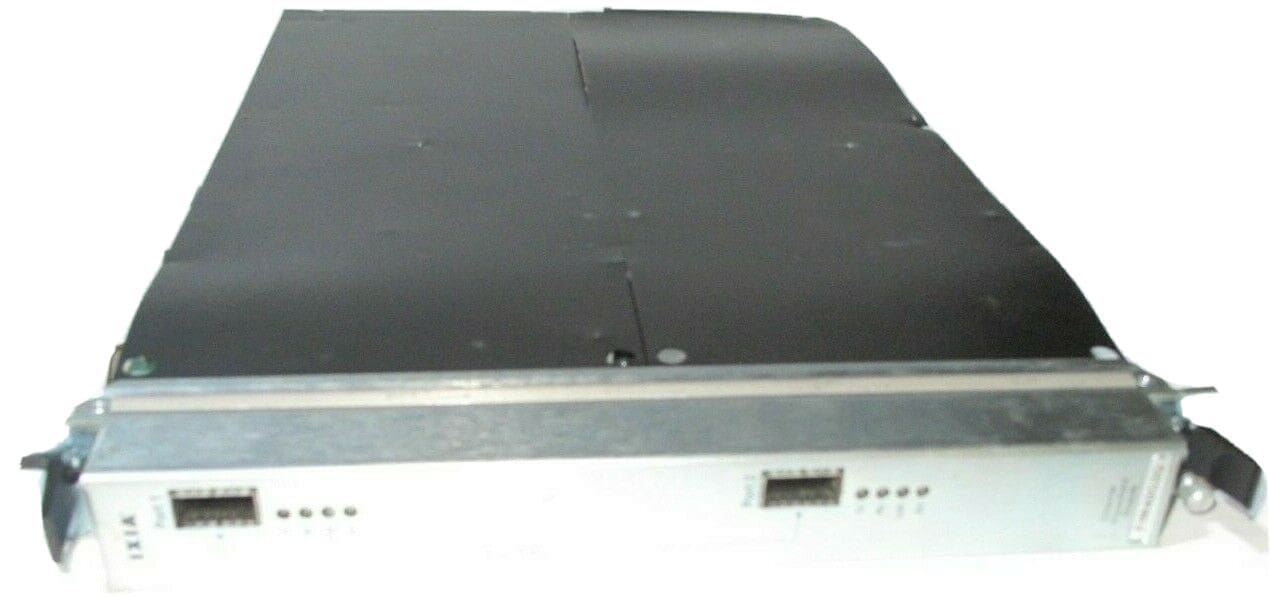

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction  is due to an issue with the item you bought being “Not as described”.

ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	30.0000 lbs
Dimensions	24 × 20 × 8 in
Brand	Ixia
Condition	Used
Condition Description	LIKE NEW *** COMES WITH TEST REPORT >> 60 DAY RETURNS ***
MODEL	ImpairNet
MPN	EIM40G2Q
Network Speed	40G
