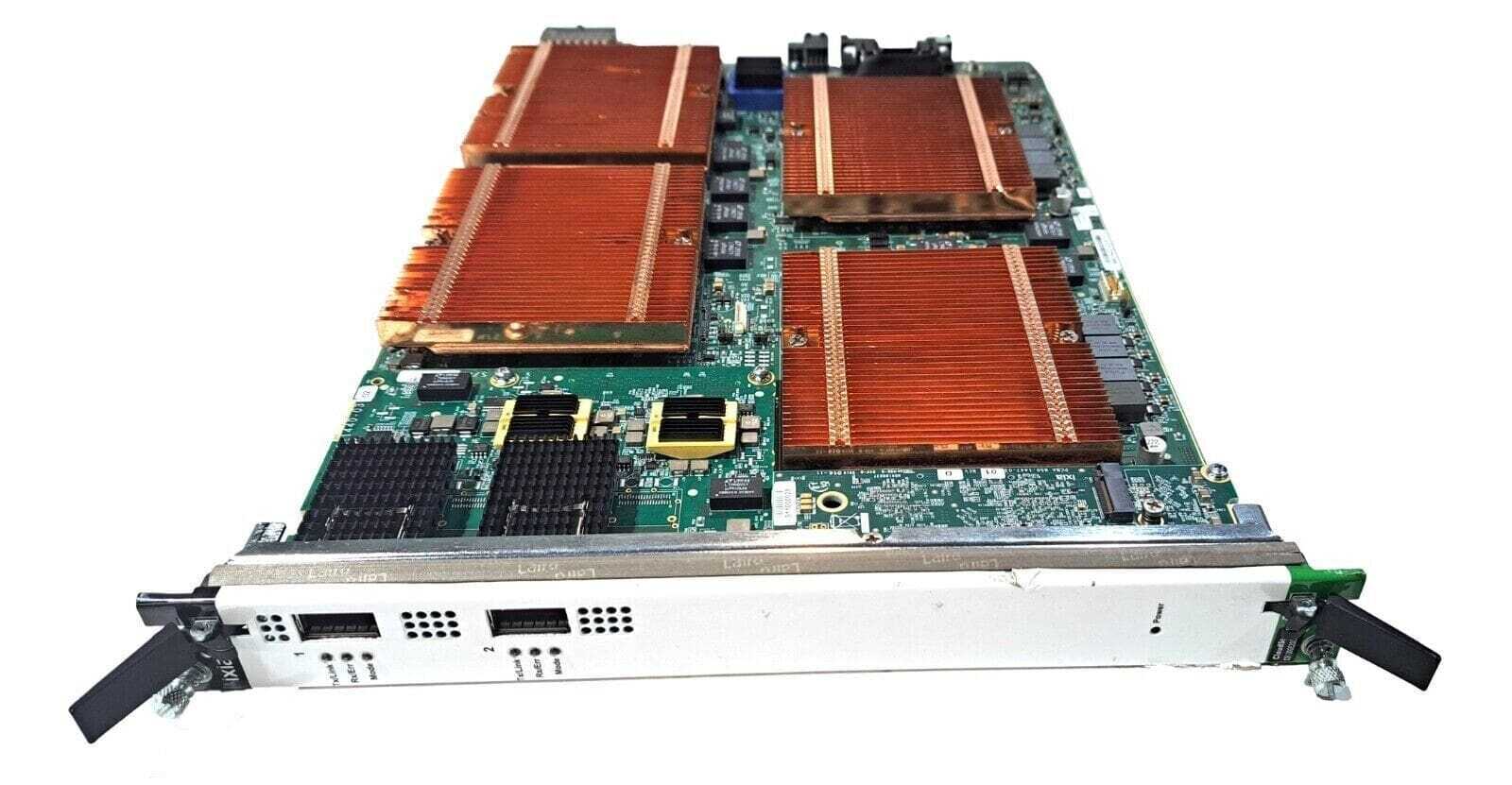

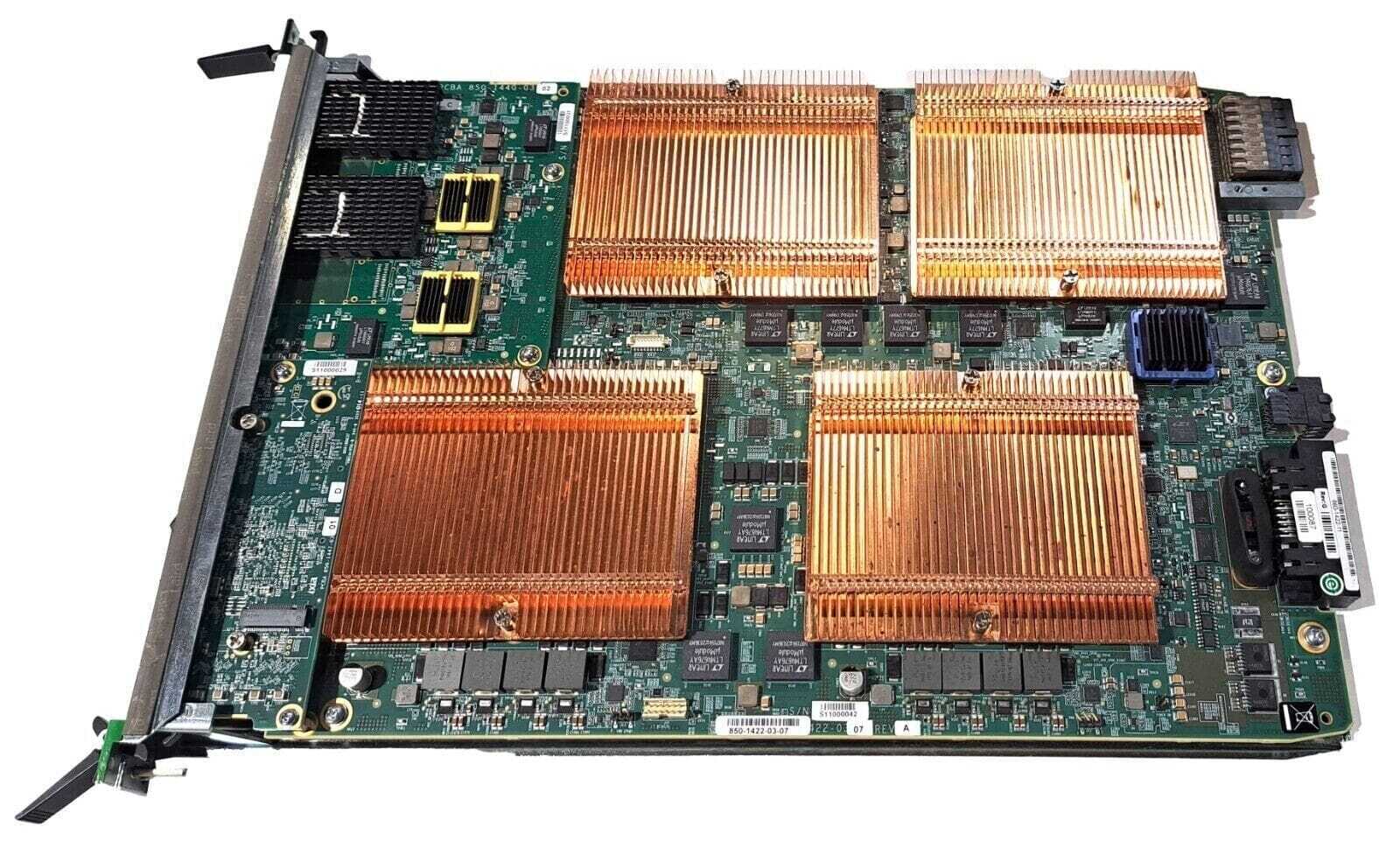

Ixia / Keysight CloudStorm CS100GE2Q28NGALL — 2-port 100GE QSFP28 Fusion load module with all port speeds enabled.

Supports both IxLoad and BreakingPoint applications. The “ALL” designation indicates all lower speeds are unlocked on a single port — no separate hardware required for different interface speeds.

Module specifications:

2 x native 100GE QSFP28 ports

Multi-rate: 100/50/40/25/10GE on a single port

128GB onboard memory

Hardware-based SSL encryption offload

Hardware-based traffic capture — 2GB per port (BreakingPoint)

FPGA offload — 10ns latency measurement resolution

QSFP28 SR4 and LR4 transceivers supported (not included)

Applications supported (licenses required separately):

IxLoad — Layer 4-7 application and performance testing

BreakingPoint — security resiliency, DDoS simulation, attack emulation

IxOS / IxExplorer

TCL API

IxLoad capabilities include:

HTTP/HTTPS, FTP, DNS, SMTP, POP3, IMAP

VoIP: SIP, RTP/RTCP, SRTP, WebRTC, MSRP, voice/video quality

Video: RTSP, IPTV, Apple HLS, Adobe HDS, MPEG DASH, VoD

IPsec: IKEv1/v2, IPsec Suite B

Storage: iSCSI, CIFS, SMB 2.1/3.0, NFS v3/v4/v4.1

AppLibrary, Application Replay

BreakingPoint capabilities include:

Bit Blaster, Application Simulator, Security NP, Session Sender

DDoS Lab, RFC 2544 Lab, Device Validation Lab, MultiBox testing

Live AppSim, Stack Scrambler, Lawful Intercept Lab

Performance (single module, back-to-back):

HTTP throughput: 80 Gbps / 4.5M CPS / 60M concurrent connections

SSL throughput: 80 Gbps / 520K CPS

DNS: 8M queries/sec

SIP endpoints with media: 400K

IPsec concurrent tunnels: 1 Million

Compatible chassis (ONLY):

XGS2-HSL — 2-slot High Performance chassis

XGS12-HSL — 12-slot High Performance chassis (up to 12 modules, 960Gbps aggregate)

Notes:

Module only — chassis, transceivers, fan-out cables, and application licenses not included

Application licenses (IxLoad, BreakingPoint ATI) must be obtained separately from Keysight

All speeds enabled on both ports — 100/50/40/25/10GE — no additional hardware upgrades required

Ideal for:

100GE firewall and security appliance inline testing — dual-port enables single-module inline device testing

DDoS mitigation device validation

SSL/TLS performance benchmarking at 100GE scale

Multi-speed lab environments requiring flexibility across 10–100GE

Network equipment manufacturers, hyperscalers, government cyber ranges, security labs

Condition: Used, pulled from working system. Tested and functional.

2024 OEM GSA DISCOUNT UNIT PRICE $1,208,952 EACH

ATTENTION PLEASE!

IXIA CLIENT SOFTWARE:The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account. We offer a selection of these applications to our customers at no charge but the selection is incomplete. We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY: You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”. We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction is due to an issue with the item you bought being “Not as described”.

ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.
WE SHIP WORLD WIDE!

Weight	20 lbs
Dimensions	26 × 20 × 8 in
Brand	Ixia
Condition	Used
Condition Description	*** 90 day full money back guarantee ***
MPN	CS100GE2Q28NGALL
