IXIA 5G RAN Testing Radiohead 400MHz-6GHz RH 400-600

Modified Ace Axis A RTSx4



HIGHLIGHTS

•400MHz to 6GHz frequency range

•FDD/TDD support

•4×4 MIMO

•Class leading RF timing alignment for OTA test

•100Mhz instantaneous bandwidth

•TX output power 0dBm (400-2700MHz)

•TX output power -10dBm (2700-5500MHz)

•TX output power -15dBm (5500-5925MHz)

•Support for CPRI V4.2

•CPRI line rates 1-8 supported

•Ambient temperature range 5-50 degree C

•RF connectors SMA

•Low power consumption typical < 80W

•Product Weight 12Kg



SPECIFICATION

VALUE

Bandwidth

100 MHz

Frequency ranges

400-6000MHz

Operating mode

FDD/TDD

Number of Tx/Rx paths

Bitmap

Bitmap

Bitmap

4×4 MIMO

Digital baseband I/F

CPRI V4.2

Clock reference

Recovered from CPRI line rate

Ambient Temperature range

5-50 C

Module RF connectors

SMA

Power meters

Tx and Rx power meters located at the antenna

Calibration

Continuous compensation of quadrature (IQ) imbalance

PSU Spec

100 – 240 VAC, 50-60 Hz; 80W
Replaceable or resettable fuse Input: IEC-C14



PHYSICAL/ENVIRONMENTAL AND ELECTRICAL SPECIFICATIONS

SPECIFICATION

VALUE

Height

1U

Depth

Depth 630mm;

Weight/Mass

12kg including removable rails (but with no packaging)

19” Rack connection

Tool-less rack supplied with product.
Rail Range: Min = 660mm ; Max = 800mm

Front Panel

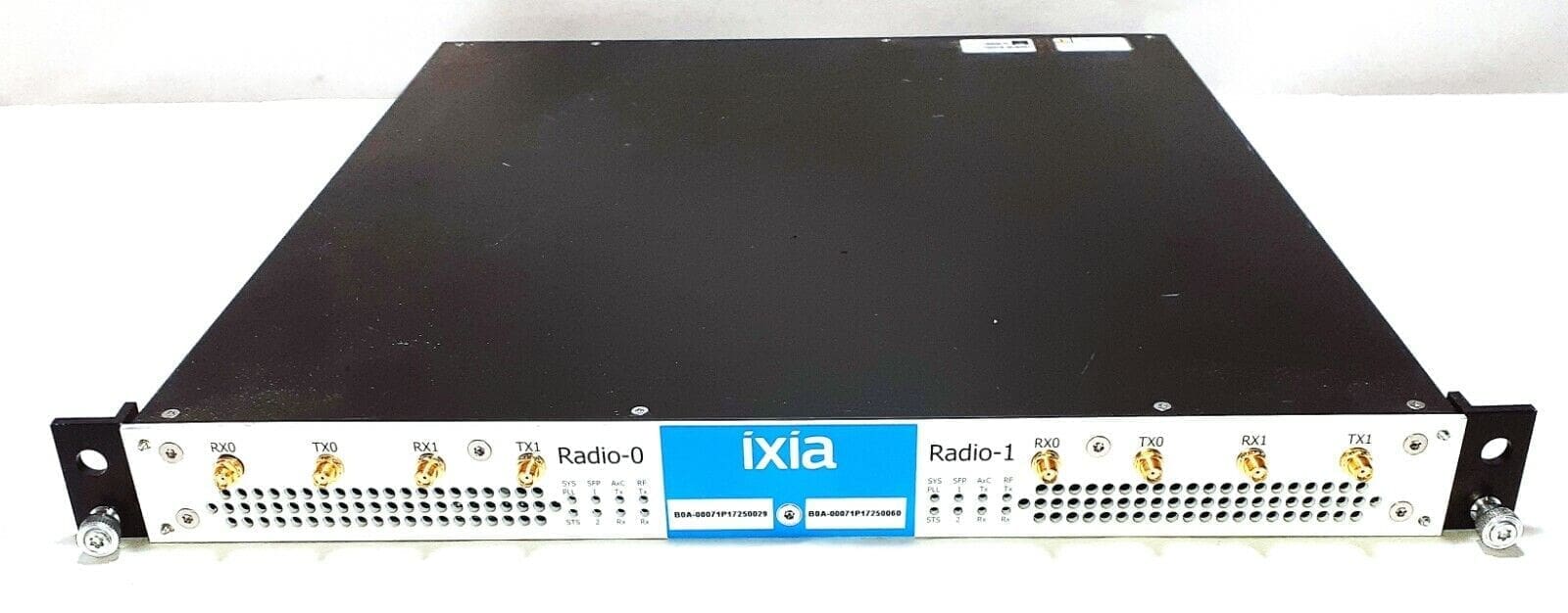

8 x SMA RF connectors, female (4 x Rx, 4 x Tx) LED Panels: see Requirements section for details

Rear Panel

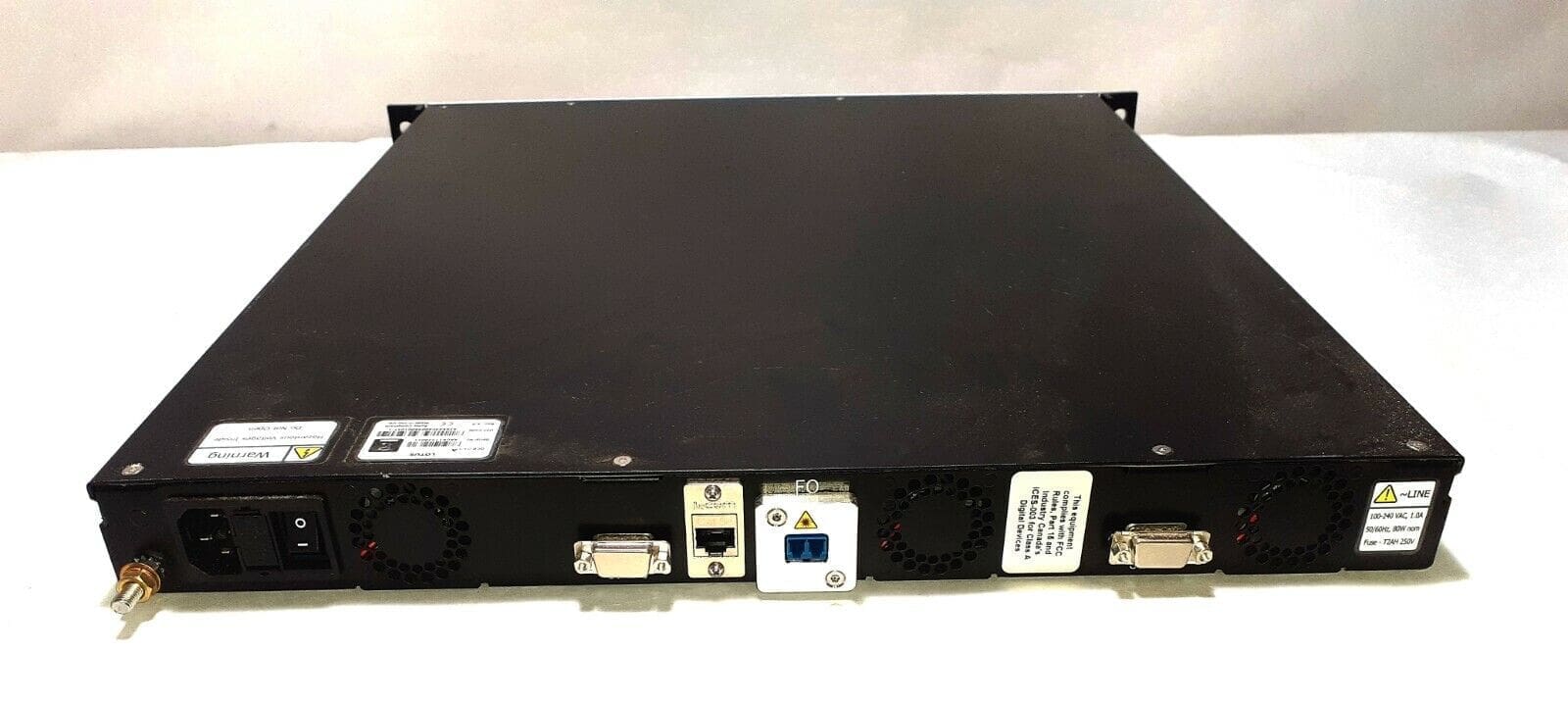

2 x SFP+ ports (bidirectional CPRI), 2x Ethernet Power Input: IEC-C14
Ground Lug with bolt/washer or equivalent 2 x SMA TDD pulse outputs

Cooling

Internal Fan cooling



TRANSMIT SPECIFICATIONS

SPECIFICATION

VALUE

Tx power (OFDM)

TX output power 0dBm (400MHz-2.7GHz) TX output power -10dBm (2.7-5.5GHz) TX output power -15dBm (5.5-5.925GHz)

Tx max. power (CW)

≥10dBm (400-2700MHz) 0dBm (2700-5500MHz)
-5dBm (5500-5925MHz)

Tx power meter

Wideband power @ antenna

Tx gain range

>40dB

Tx gain accuracy

0.25dB

Tx spurious emissions

<-45 dBm

EVM

<1.2% 400MHz to 2.0GHz;
<1.4% median and 2% peak 2.0GHz to 4.0GHz;
<1.6% median and 3.5% peak 4.0 GHz to 6 GHz

Noise power density

<133dBc/Hz @ 10Mhz offset

Tx to Tx isolation

>50dB

Tx to Rx isolation

>60dB

DAC

16 bit

Gain Flatness (over full bandwidth)

0.8dB

Ripple (over full bandwidth)

0.6dB

RECEIVE SPECIFICATIONS

SPECIFICATION

VALUE

Rx power max. (no damage)

30dBm

Rx power meter

Wideband power @ antenna

Rx gain range

60dB

Rx gain accuracy

0.25dB

Spurious emissions

<-45dBm

Pass band ripple

<±1dB

Demodulation Accuracy (in terms of EVM )

< 1.1% 400MHz to 2.0 GHz @ 256 QAM
< 1.5% 2.0GHz to 4.0GHz @ 256 QAM
< 1.5% median and 3.5% peak 4.0GHz to 6.0GHz @ 256 QAM





TIMING ALIGNMENT

SPECIFICATION

VALUE

TX Delay Alignment (TX port to any TX port)

<=5nS

RX Delay Alignment (RX port to RX port same CPRI link)

<=5nS

RX Path Alignment (variation between antenna)

<=15nS

Delay adjustment

+/- 4nS

Delay reporting

T12,T2a ad Ta3 per the CPRI Spec
