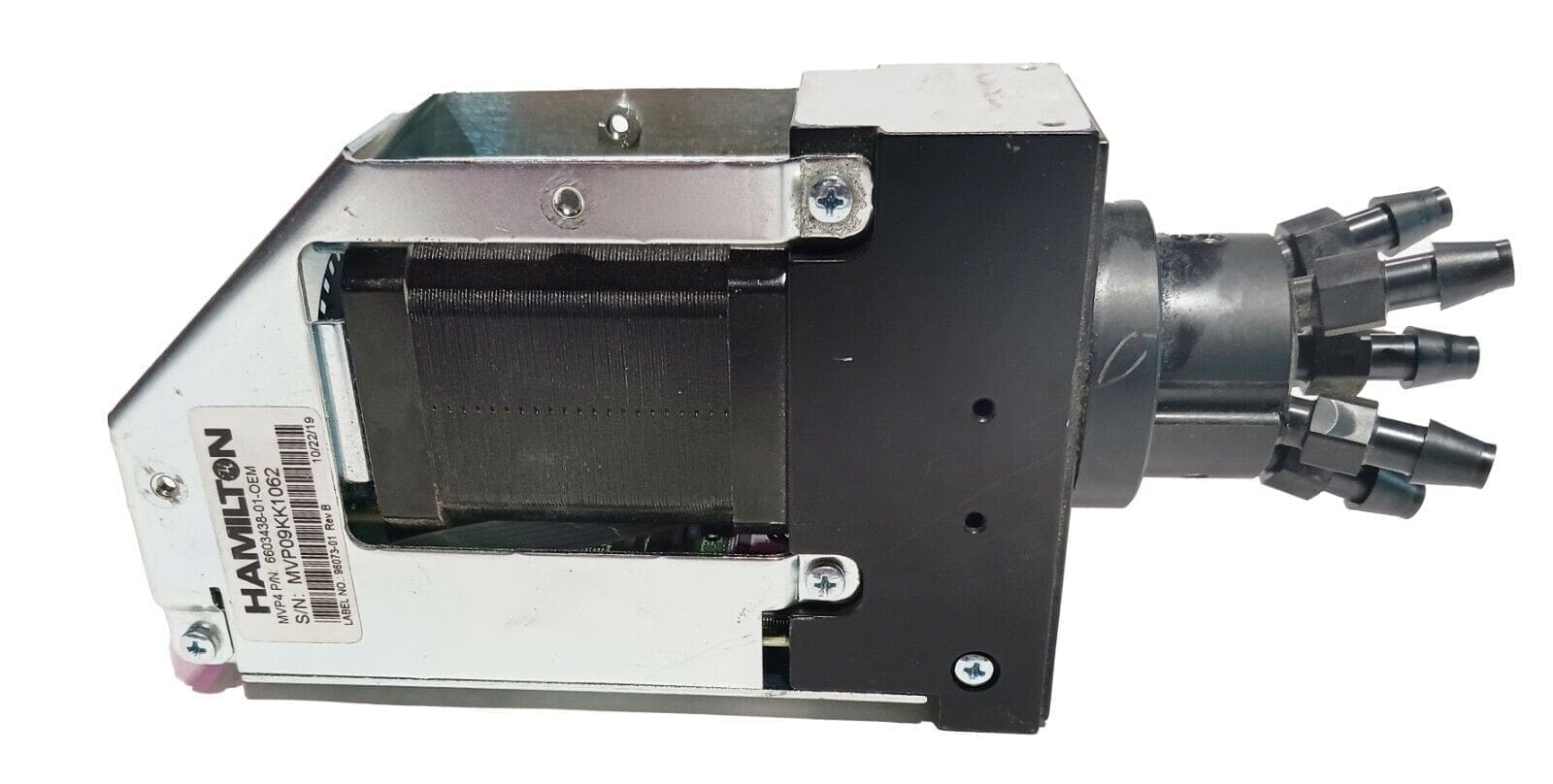

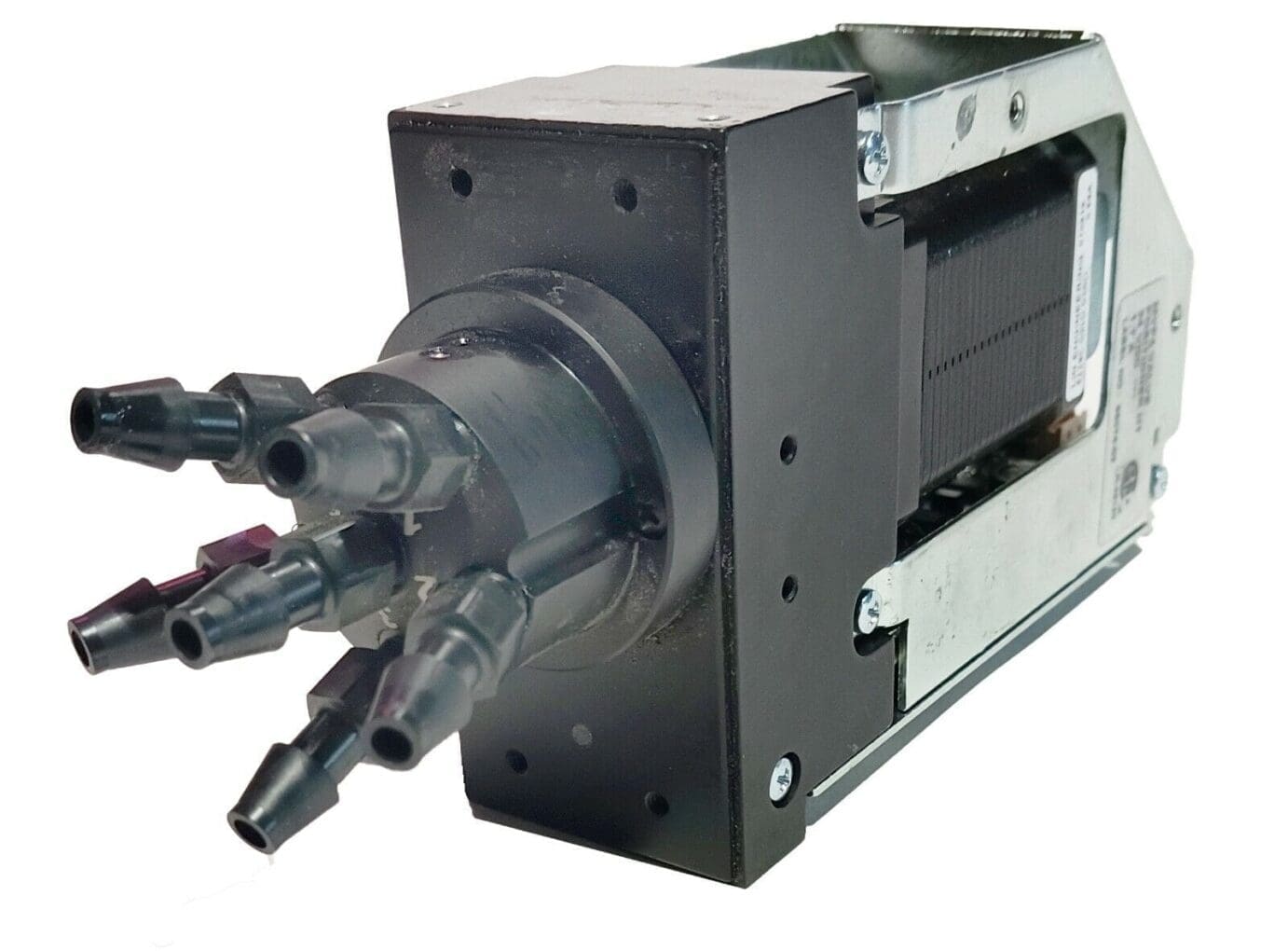

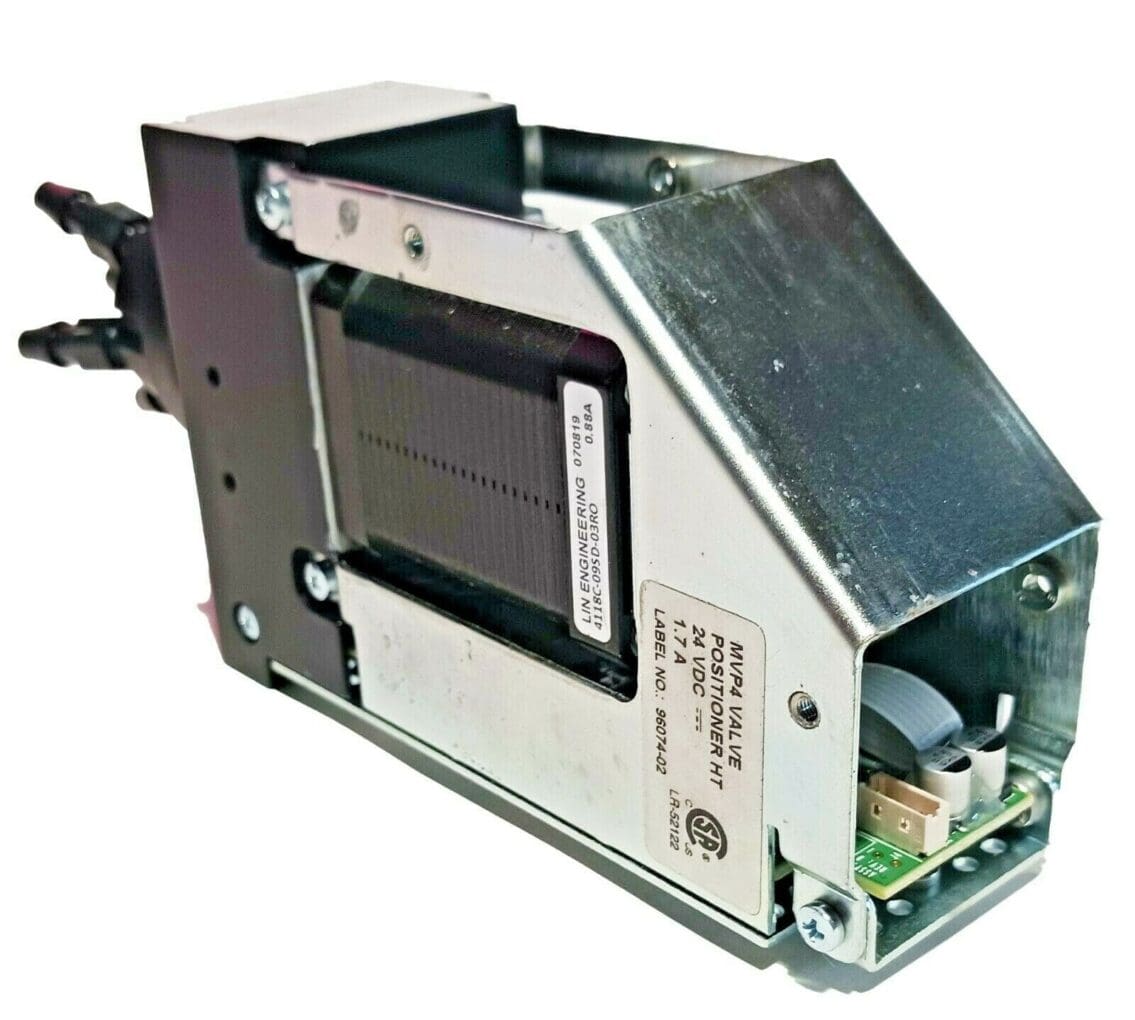

Hamilton MVP/4 High Torque Valve Positioner 94747-02, 6603438-01-Oem

ZOMBIE COMPONENTS

Hamilton MVP/4 High Torque Valve Positioner 94747-02, 6603438-01-OEM

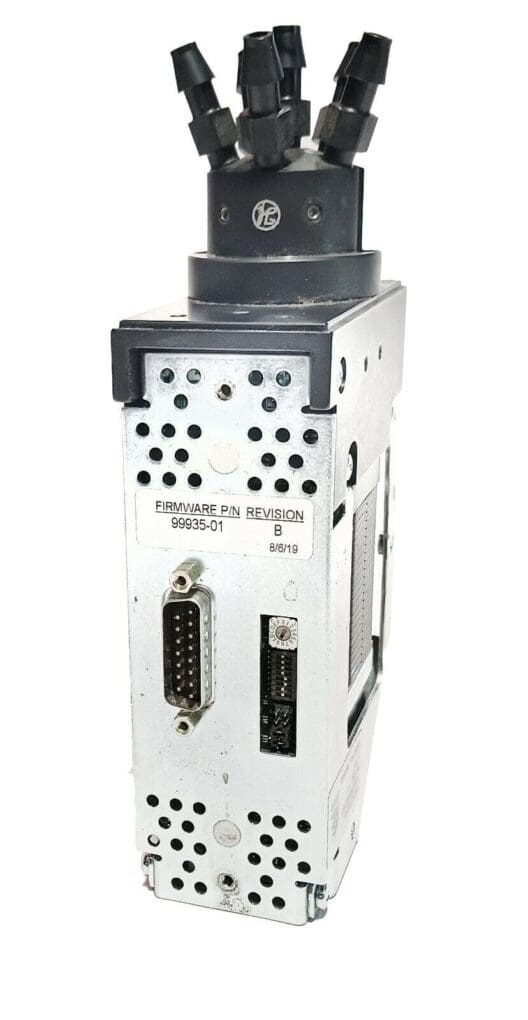

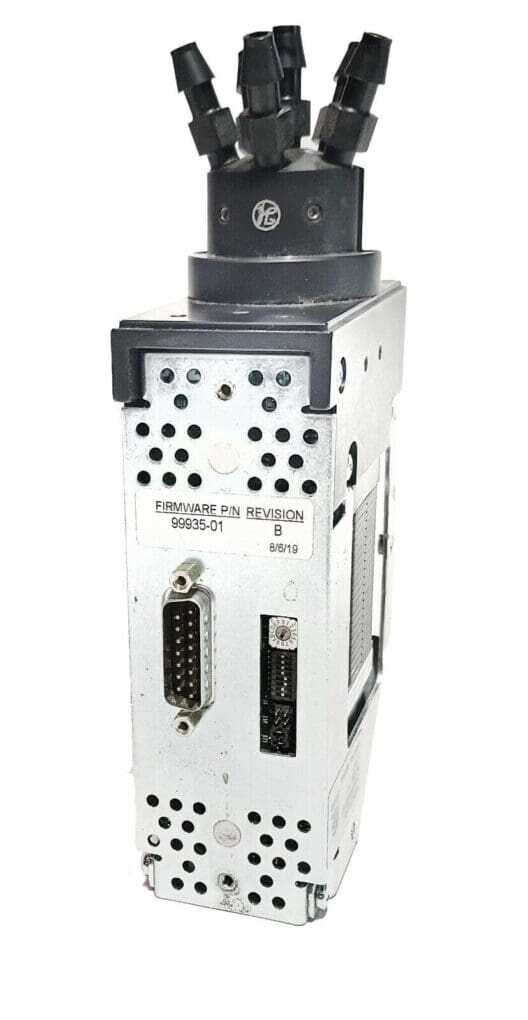

Hamilton MVP/4 High Torque Valve Positioner 94747-02, 6603438-01-OEMFIRMWARE P/N 99935-01 Rev. B
Fluid PathPTFE, CTFE, or ceramic

Weight2.25 lbs (1.0 kg)

Power Requirements24 VDC, 1.5A max

Valve Drive TypeDirect Drive DC stepper motor with 15 degree resolution and optical encoder.

Valve Drive Speed250 ms per 120 degree rotation

Valve Drive Torque75 (in oz)

Valve Fittings¼-28

Additional specifications
Communication InterfaceRS-232, RS-485, CAN

Communication ProtocolTerminal and Standard

Baud Rate9600 or 38400 (RS-232, RS-485) and 100,000 or 125,000 (CAN)

Data Bits8

ParityNone

Stop Bit1, Half duplex

Daisy Chain LengthUp to 16 syringe pumps or valve positioners

Operating Temp High40 °C (105 °F)

Operating Temp Low15 °C (60 °F)

Operating Humidity20% to 95%, non-condensing

Storage Temp High65 °C (150 °F)

Storage Temp Low-20 °C (-4 °F)

Storage Humidity20% to 95%, non-condensing

RoHS 3 CompliantYes
