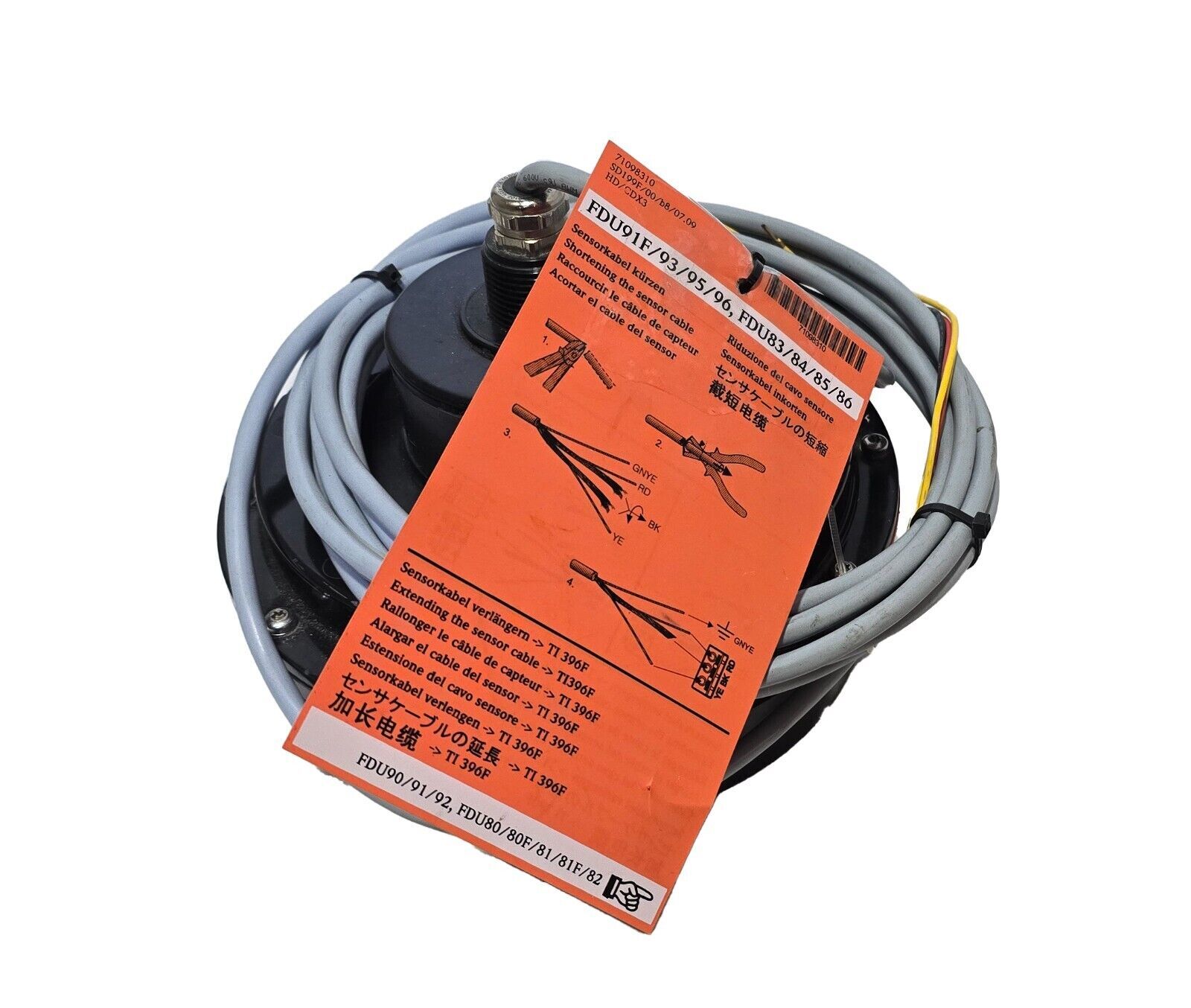

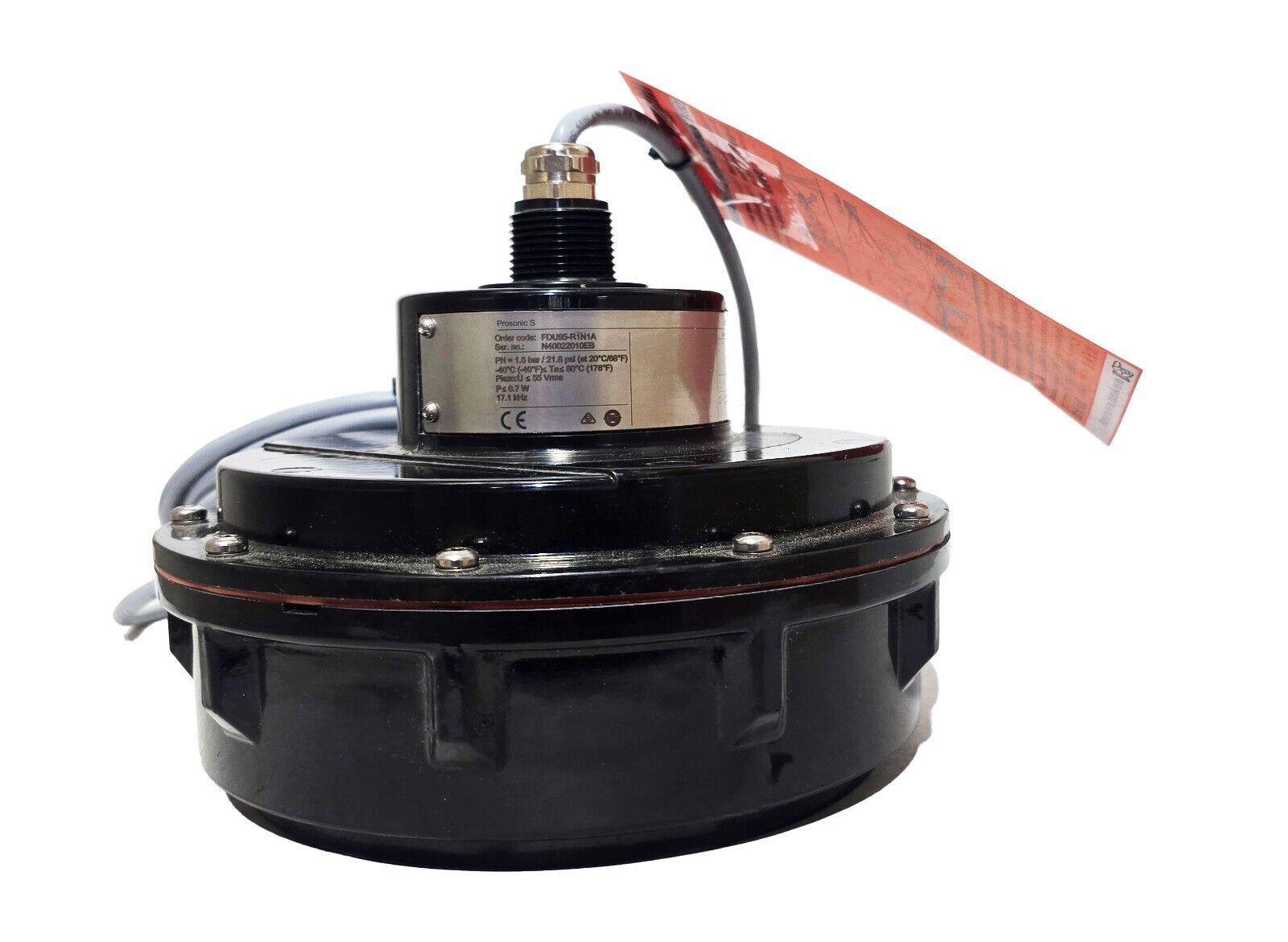

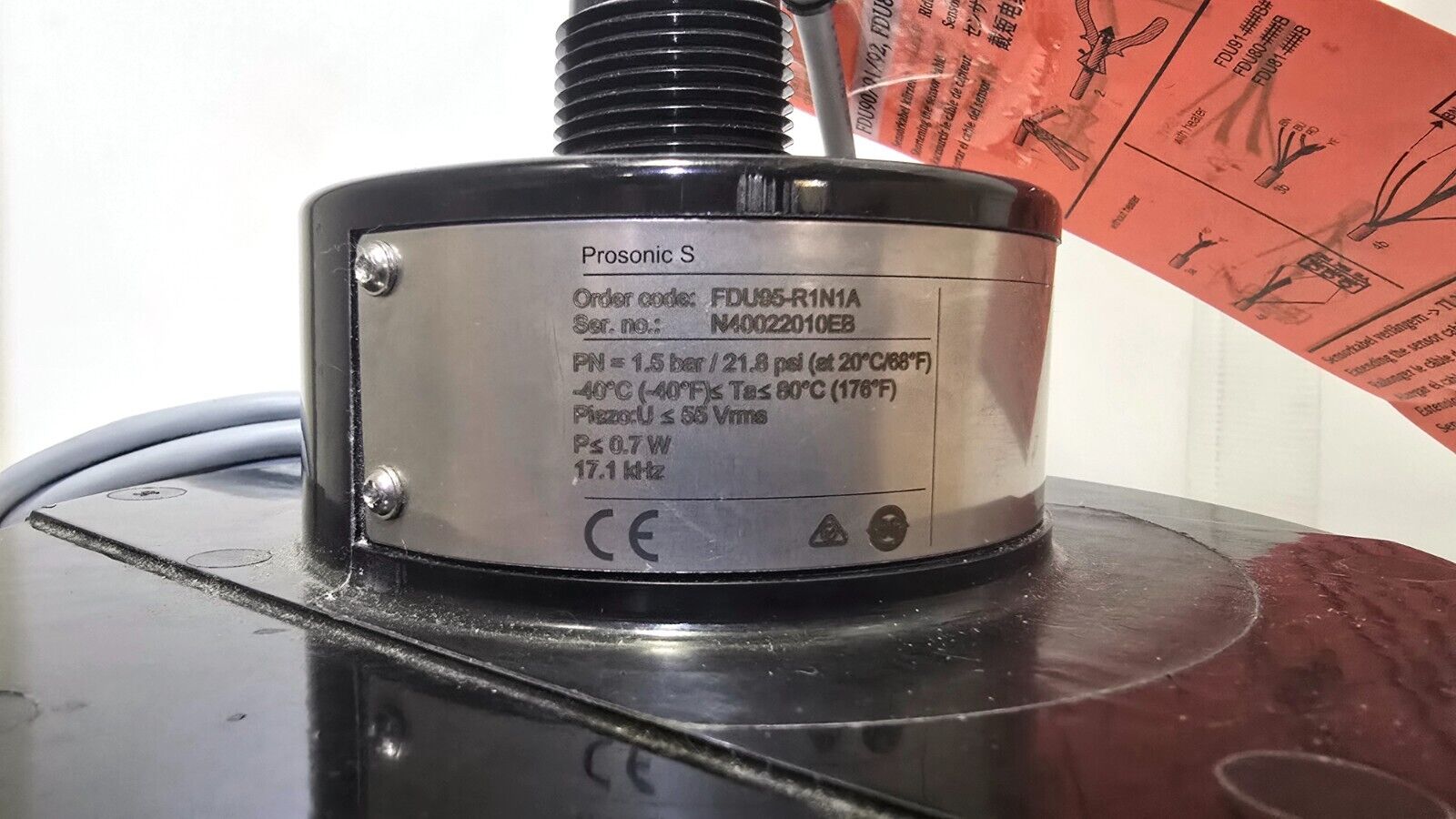

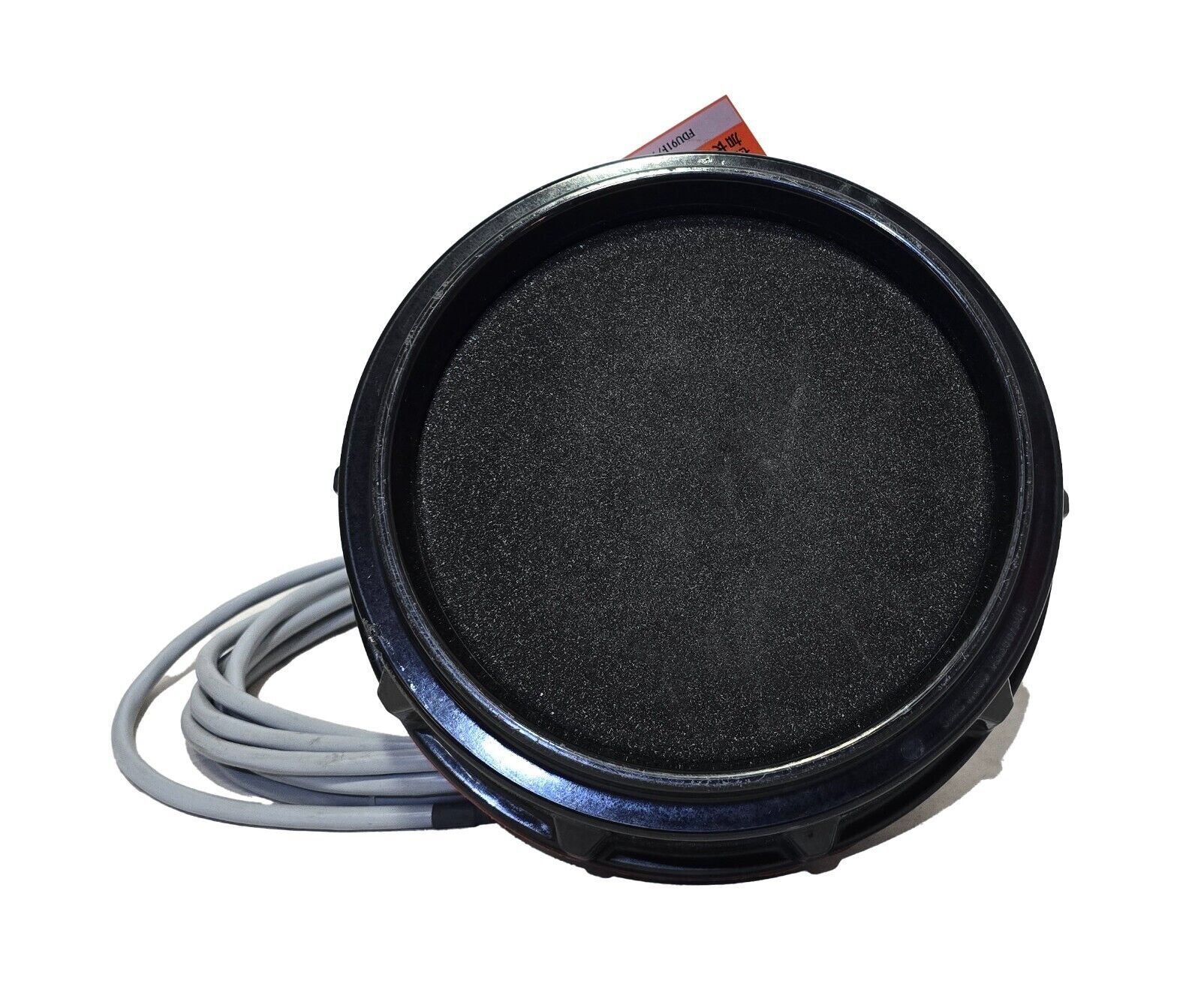

Endress Hauser Prosonic S FDU95-R1N1A Ultrasonic Measurement Device

Endress Hauser Prosonic S FDU95-R1N1A Ultrasonic Measurement Device
Specifications
General Overview:
The Endress+Hauser Prosonic S FDU95-R1N1A is an ultrasonic level sensor designed for continuous, non-contact level measurement of bulk solids in silos, stockpiles, and crushers. It provides reliable measurements in harsh environments and can operate in challenging conditions, including dust-laden areas.
Technical Specifications:
Measuring Performance:
Measuring Range: Up to 45 meters (148 feet) for bulk solids.
Accuracy: ±2 mm plus 0.17% of the measured distance.
Beam Angle: Narrow beam for improved accuracy in confined spaces.
Environmental & Process Conditions:
Operating Temperature Range:Standard: -40°C to +80°C (-40°F to 176°F).
High-Temperature Variant: Up to +150°C (302°F).

Process Pressure:0.7 to 1.5 bar absolute (10 to 22 psi).
Ingress Protection Rating:IP68 (Dustproof, waterproof, and flood-resistant).
Material & Construction:
Wetted Materials:Unsaturated polyester (UP) for high chemical resistance.
Process Connection:G or NPT 1″ threading for flexible installation.
Electrical & Signal Integration:
Power Supply:24V DC (typical operation).
Output Signal:4-20mA HART, PROFIBUS, or optional FOUNDATION Fieldbus.
Installation Distance from Transmitter: Up to 300 meters (984 feet).
Additional Features:
Integrated Temperature Compensation: Adjusts readings for temperature fluctuations to maintain accuracy.
Self-Cleaning Sensor Design: Reduces dust accumulation and ensures long-term reliability.
Explosion Protection: Certified for Dust-Ex and Gas-Ex hazardous areas.
Remote Installation Capabilities: Can be separated from the transmitter and used in remote locations.
This ultrasonic sensor is ideal for applications in cement plants, mining, food processing, and grain storage facilities, where reliable level measurement is critical.
