Emerson Micro Motion Titanium Grade 9 Coriolis Flow Meter T150T641S2BAEZZZZ

ZOMBIE COMPONENTS

Emerson Micro Motion Titanium Grade 9 Coriolis Flow Meter T150T641S2BAEZZZZ

Emerson Micro Motion Titanium Grade 9 Coriolis Flow Meter T150T641S2BAEZZZZ
Sensor Size 1-1/2 inch
Surface Finish 32Ra (0.8µm)
Process Connection 1.5in
CL150 ASME B16.5 F316/L
Socket weld flange
Raised faceCase Options 1450 psi (100 bar) containment
Electronic Interface 4-Wire (For remote mount transmitters)
Interface Options Polyurethane-painted aluminum, enhanced core processor
Conduit Connection 1/2in NPT (no gland)
Approvals CSA (US & Canada): Class I, Division 1, Groups C and DIN

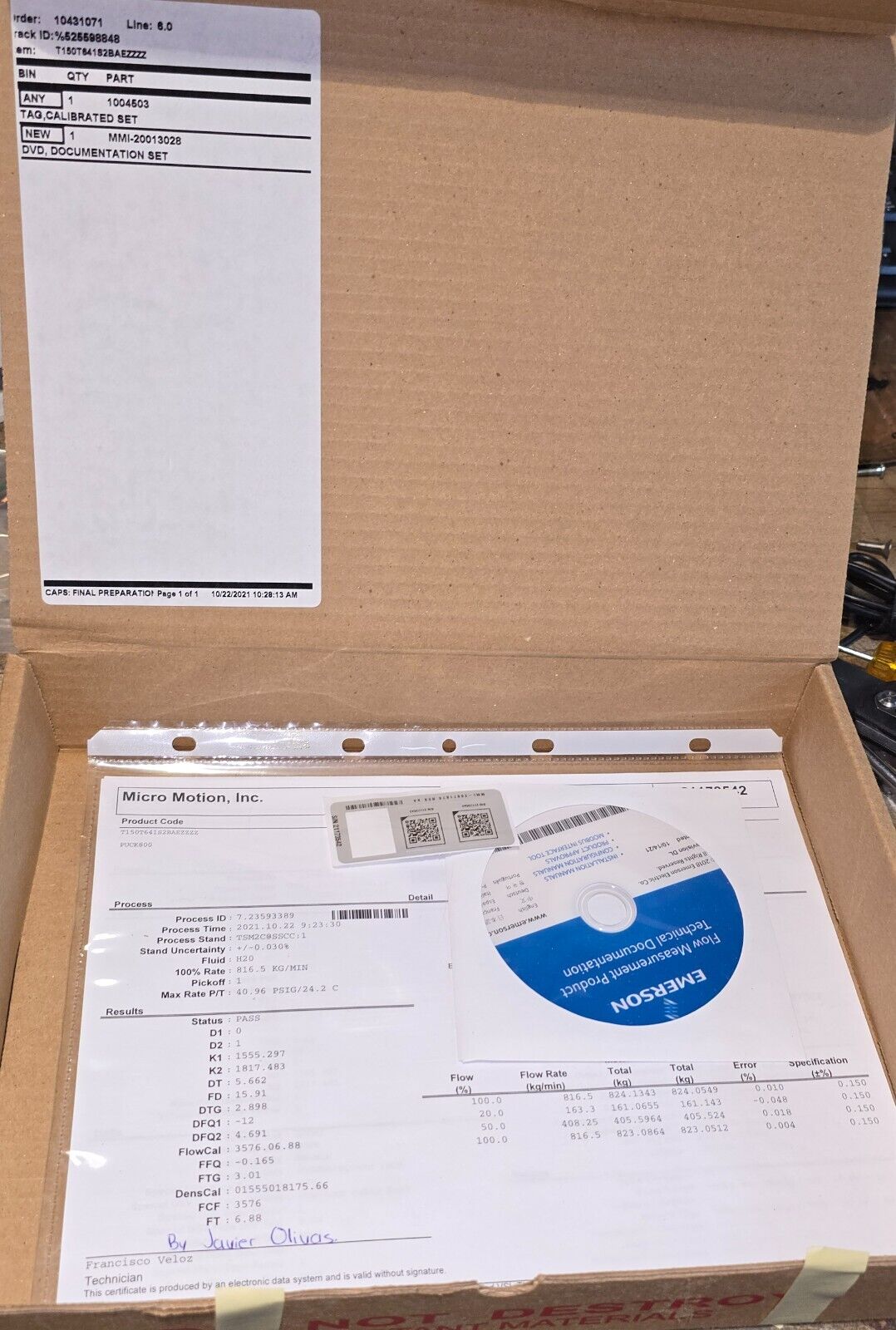

ORIGINAL PALLETIZED FACTORY BOX WITH MANUFACTURING TEST DATA AND CD OF TECHNICAL DOCUMENTS
MFG DATE IS 10.21.2021
SHIPMENT VIA FREIGHT (BUYERS RESPONSIBILITY) *** SELECT LOCAL PICKUP OPTION ON CHECKOUT AND THEN ARRANGE FEIGHT PICKUP. WE WILL LOAD ON THE CARRIER OF YOUR CHOICE WITH OUR FORKLIFTEACH CONTAINER IS 48″X40″X20″ @ 187LBS

Process Connections:
641 : 1-1/2-inch CL150 ASME B16.5 F316/F316L Socket weld flange Raised face

Case Options

S : 1450 psi (100 bar) containment

Electronics Interface:

2 : 4-wire polyurethane-painted aluminum integral enhanced core processor for remote mount transmitters

Conduit Connections:

B : 1/2-inch NPT – no gland

Approvals:

A : CSA (US and Canada): Class I, Div. 1

Language:

E : English installation manual

Language:
Future Option 1:Z : Reserved for future use

Calibration Options:

Z : 0.15% mass flow and 0.002 g/cc density calibration (±0.25% volume flow)

Measurement Application Software:

Z : No measurement application software

Factory Options:

Z : Standard product

Flange Outer Diameter (OD): 5.00 inches (127 mm)
Bolt Circle Diameter (BCD): 3.875 inches (98.4 mm) – this is the pitch circle diameter of the bolt holes
Bolt Holes: 4 holes, each ≈0.625 inch (5/8″) in diameter, to accommodate ½″ diameter bolts (ASME B16.5 Class 150 flanges for 1½″ NPS use four ½″ bolts on a 3.875″ BCD)
Raised Face: The flanges have a raised face (RF) per ASME B16.5 – standard Class 150 RF height is 1/16″ (~1.6 mm). The raised face provides the sealing surface; flange thickness is about 0.62″ (16 mm) for a 1½″ Class 150 weld-neck flange

:

Shipping
​​​​​​​
Also please note that we may take up to 3 business days to ship from the time you paid for your order. Also, please keep in mind that weekends are not counted. So, if you place an order Friday night, we may not get it out until the following Wednesday (worst case scenario) though we ship as soon as we can. We also reserve the right to change the method of shipping selected at the time of purchase to an equivalent or better delivery service that best fits the item being delivered.
If you need a faster service, please tell us so we can adjust our priorities but please don’t expect expedited service unless you ask us to do so first as our commitment is 3 days if you have not specifically asked for faster shipping.
We ship worldwide .. Some items may take up to 5 days to palletize and ship
Please note that the us mail (USPS) may not be an acceptable choice for international shipping due to package size and weight restrictions and export documentation requirements. If you chose USPS for your international shipment, you may be told you have to select FedEx or UPS or even DHL at a higher price due to the restrictions when using USPS. If you have a question on this, please confirm your shipping choice with us before placing your order.
Export Compliance Notice:
Our products are subject to U.S. export regulations governed by the Export Administration Regulations (EAR), under the oversight of the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to locations in Country Group E. Please note that it may take up to 30 days to determine the Export Control Classification Number (ECCN) for our products. If an export license is required, the licensing process may take an additional 30-90 days.
To comply with U.S. Department of Commerce and U.S. Department of State export control laws, we require a written statement detailing the ultimate end user, the intended end use of each product, and the buyer’s agreement to adhere to the EAR. You will receive an email with the necessary documentation to complete your order. Please be aware that your order cannot be processed until all required information is provided.
Returns
​​​​​​​
Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase, for any reason, if you are not 100% satisfied with your purchase. You can return the product for a full refund or exchange the product for another item, be it similar or not. The period of 30 or 60 days is listed for each item on the items listing page.
Any product you return must be in the same condition you received it and in the original packaging. All items are guaranteed to be “as described”. Any item you feel is not as described in the listing; you can return it at our expense for a full refund regardless if the item is listed “as is no returns”.
Warranty

Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase for a warranty claim at our expense for a full refund, a repair or a replacement. Some higher value items we will warranty beyond ebays 60 day maximum limit for normal listing. If you are interested in extending your warranty, ask us at the time of your purchase.
Data Privacy
​​​​​​​
We do not keep or share your information anywhere. Your information resides only on ebay and is only available to us for a limited time while we are interacting with you on an inquiry, order or a return, per ebays usage policies.
QUALITY CONTROL
Electronics in general, where possible items are tested. The value of an item greatly contributes to the amount or effort put into testing. It just isn’t possible to test many low value items due to the time required and the expenses associated with it. Items that are not specifically tested in detail are visually inspected and reviewed for their operational status. When purchasing recycled items, it is reasonable to have varying quality and occasional failures. Just remember you are covered with a money back guarantee on most items. We want you to be happy above all other considerations.

Appliance parts. Used items are cleaned, clear plastics are hand polished to reduce visible scuffs or scratches. Paint chips are sometimes but not always repaired. Lime and rust deposits are removed to the best of our ability. Some minor repairs may be performed. Any exceptional wear will be noted in our description. We do our best to restore any used item but the final condition of the restoration is subjective to one’s opinion. If you take issue with the items’ condition, we promise to work with you to resolve this. Note that stock photos are often used and are not the exact item being sold. If you would like to request a different or an actual photo of an item you are interested in, please submit a request before buying.

ATTENTION PLEASE!
WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.
GENERAL REFUND POLICY: You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”. We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.
WE SHIP WORLD WIDE!

Weight	187 lbs
Dimensions	48 × 48 × 22 in
Brand	Micro Motion
FLOW METER TYPE	Coriolis Flow Meter
MPN	T150T641S2BAEZZZZ
Condition	New
