Description
| Zombie Components LLC | www.zombiecomponents.com |

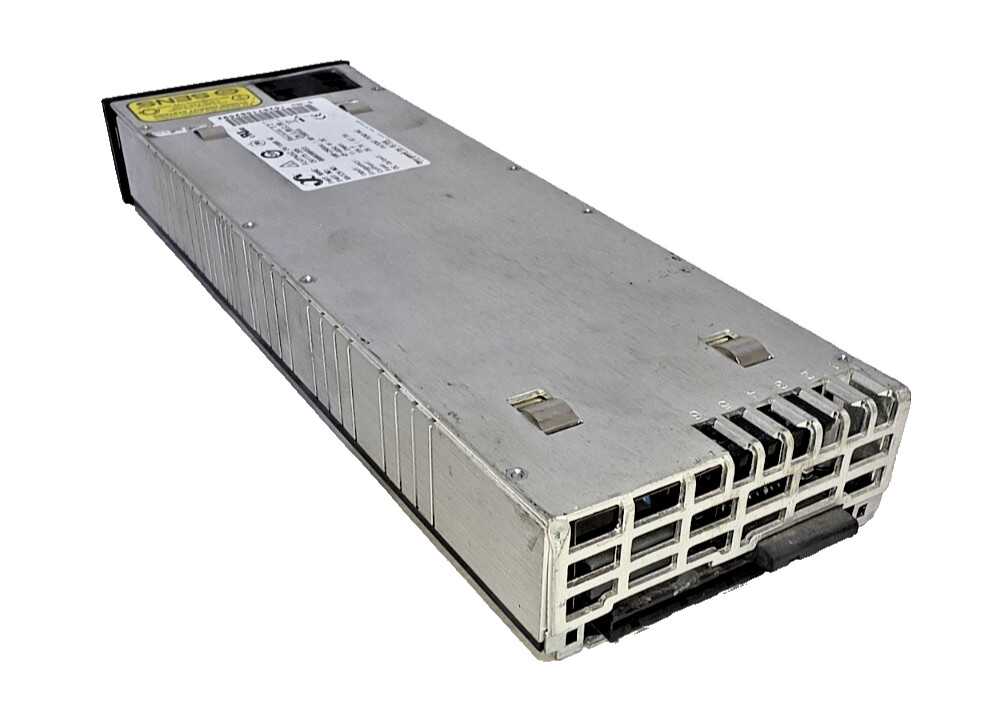

Eltek Flatpack2 24/1800 HE hot plug rectifier module, manufacturer part number 241115.205. High
efficiency 24 V module for lead acid DC power plants, rated 26.7 VDC at 67.5 A (1800 W) from a

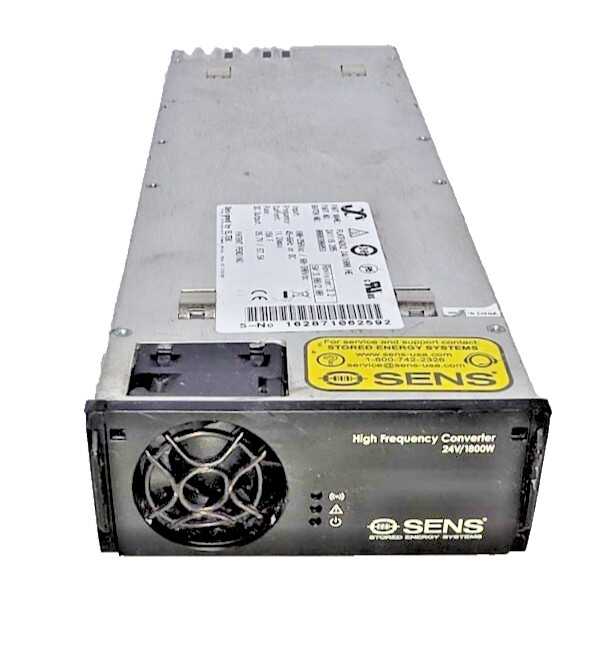

universal 100-250 VAC or 80-300 VDC input. This unit carries a SENS (Stored Energy Systems) front

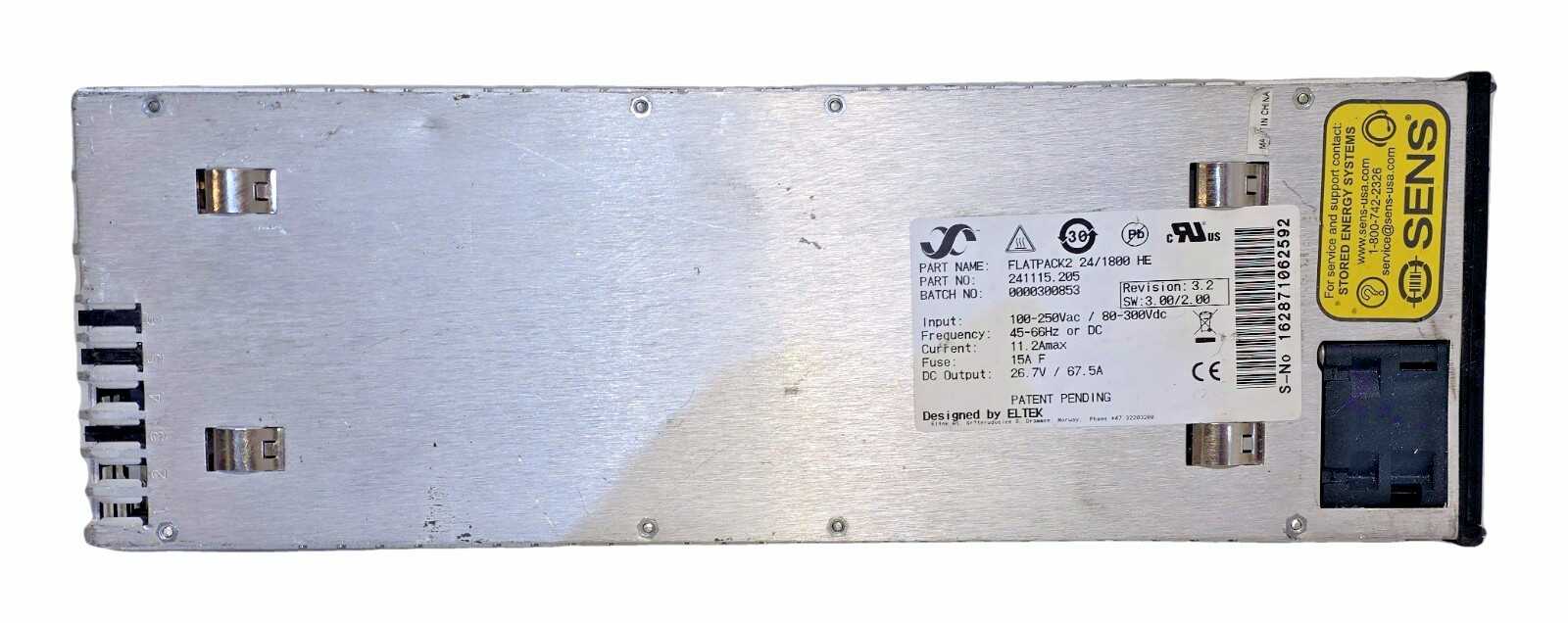

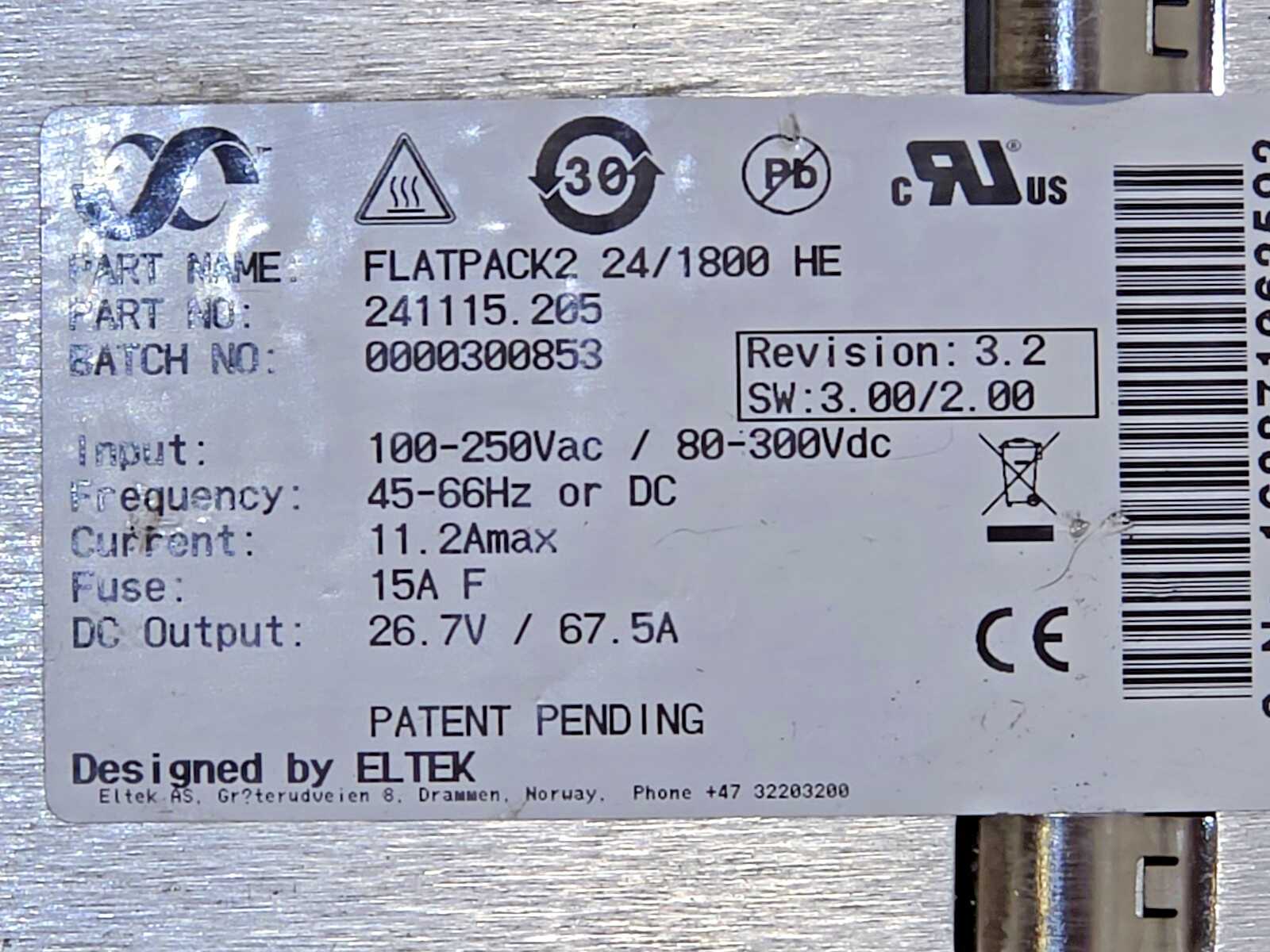

bezel marked High Frequency Converter 24V/1800W and a SENS service label. Nameplate shows hardware
revision 3.2 and SW 3.00/2.00. Serial 162871062592.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 241115.205 |
| Manufacturer | Eltek AS, Drammen, Norway. Unit marked Made in China |
| Model | Flatpack2 24/1800 HE, high efficiency |
| Type | hot plug switch mode rectifier module for 24 V DC power systems |
| Input per nameplate | 100-250 VAC / 80-300 VDC, 45-66 Hz or DC, 11.2 A max |
| Input per Eltek datasheet | 85-300 VAC / 85-300 VDC, power factor 0.99 at 50 to 100% load |
| Internal fuse | 15 A F |
| DC output per nameplate | 26.7 V / 67.5 A |
| DC output per Eltek datasheet | 75 VDC default, adjustable 21.75 to 28.8 VDC, 1800 W maximum, up to 75 A at output voltages of 24 VDC and below, derated to 750 W at 85 VDC input |
| Efficiency | 95% peak Hardware revision 3.2, software 3.00/2.00, batch 0000300853 |
| Module size per datasheet | 327 x 109 x 41 mm (12.9 x 4.3 x 1.6 in) |
| Module weight per datasheet | 1.95 kg |
| Operating temperature per datasheet | 40 C to +75 C, forced air cooled |
| MTBF | 300,000 hours at 25 C |
| Protection | input fuse, varistor, overvoltage, short circuit, over temperature, inrush limiting |
| Indicators | three front panel LEDs |
| Marks on the unit | cULus, CE, RoHS, WEEE |
| Quantity available | 2, sold individually |
One Eltek Flatpack2 24/1800 HE rectifier module, part number 241115.205.
Not included:
Power shelf, rack, subrack or magazine. Smartpack or Smartpack2 controller. AC input cordage,
DC output hardware, mounting screws. Documentation, software, original packaging.
Requires a Flatpack2 power shelf or magazine to make the AC input and DC output connections. The
module runs at its default output voltage on its own; output voltage adjustment, current limit and
alarm reporting require a Smartpack family controller or a CAN connection. This is the 24 V model,
7 V nominal, not the 48 V model. Buyer should confirm shelf, controller and firmware level
compatibility with their DC plant before ordering.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships in an 18 x 10 x 8 in box at approximately 7 lb, double boxed with foam. Domestic and
international shipping available.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
