Description
| Zombie Components LLC | www.zombiecomponents.com |
60 Day Money Back Guarantee. Removed from unused Benning inverter systems.
| Parameter | Value |
| MPN | XTCE250L22A |
| Brand | Eaton, Moeller DILM series |

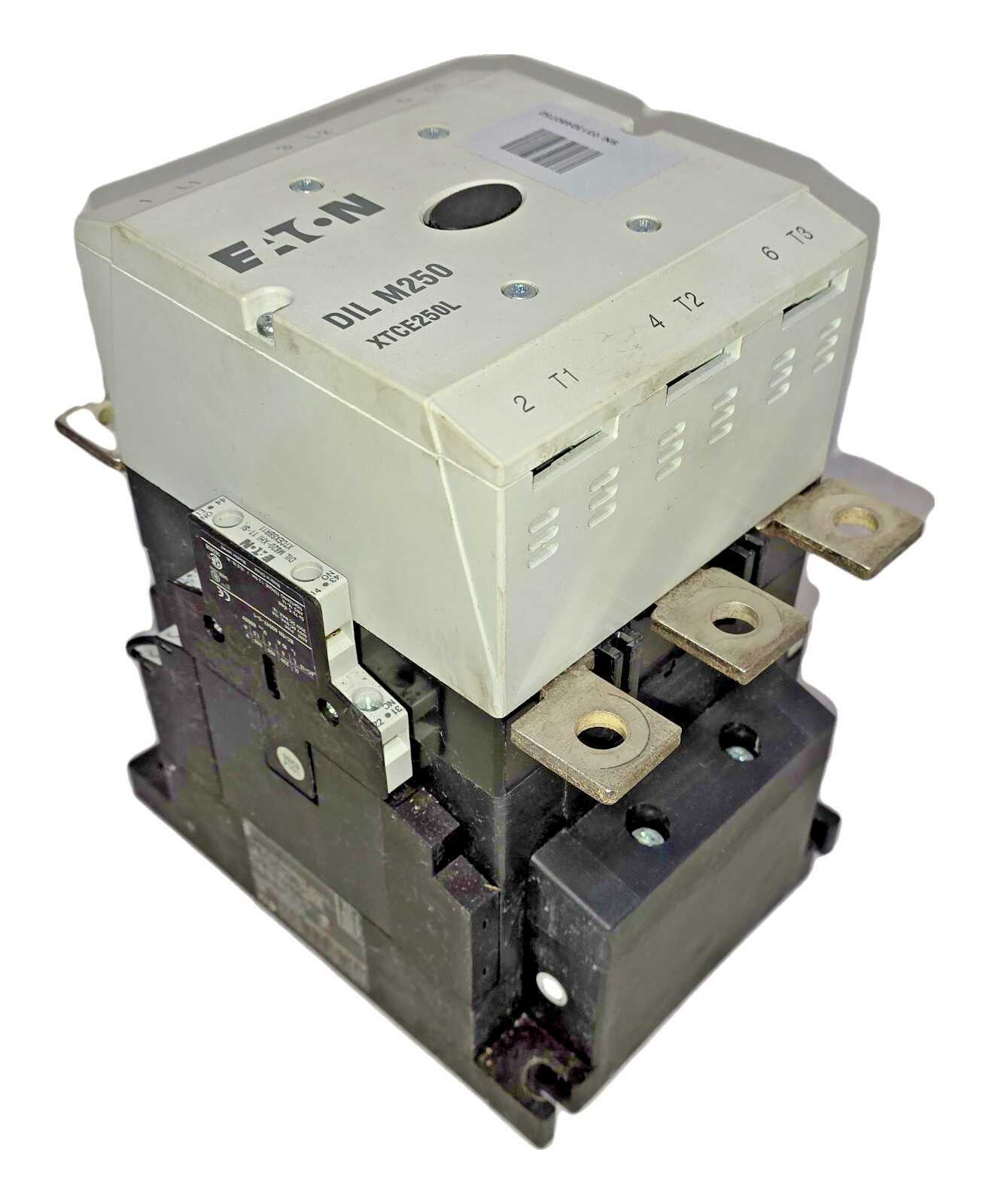

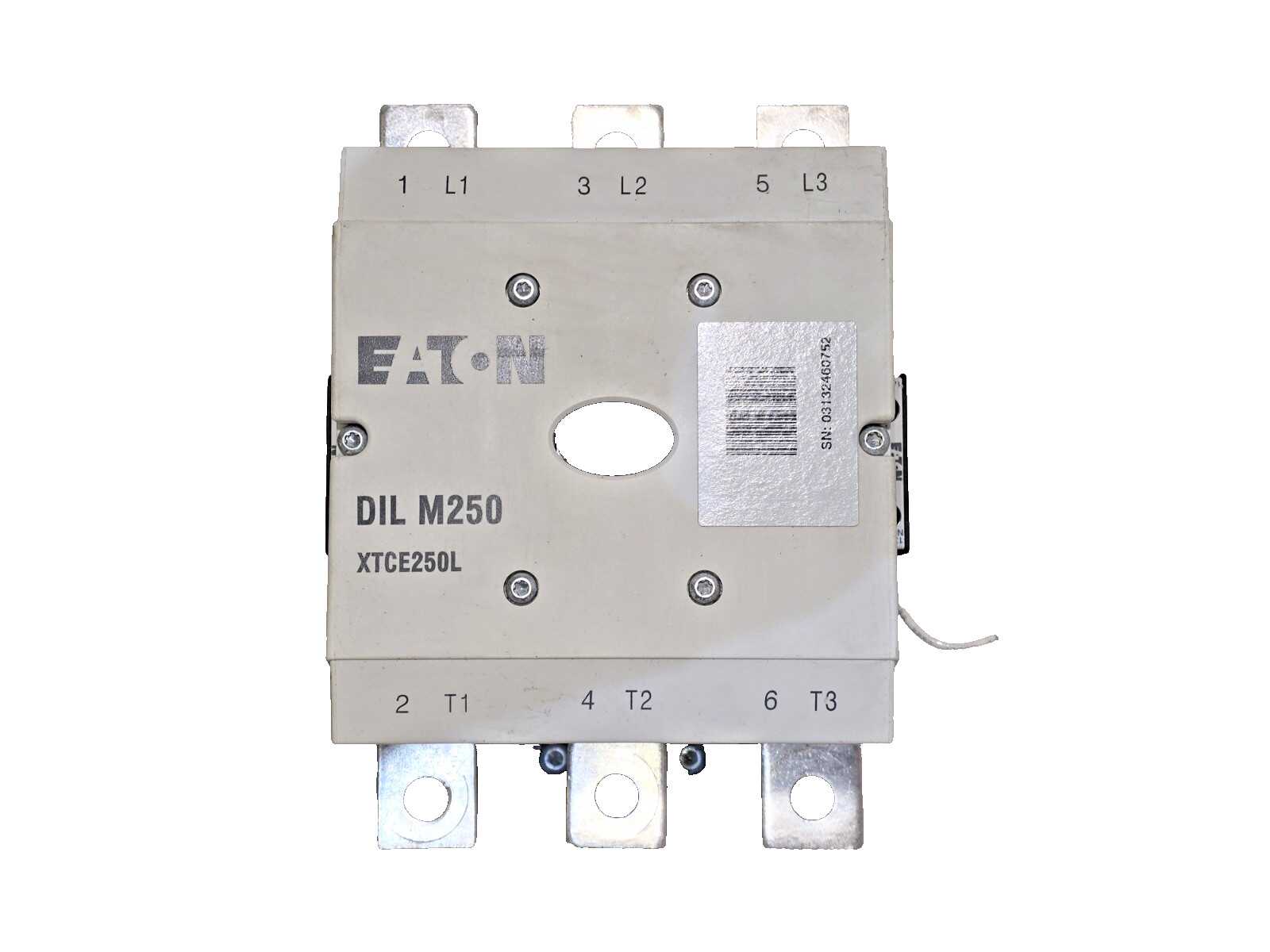

| Housing marking | DIL M250 |
| Catalog number as printed | XTCE250L |

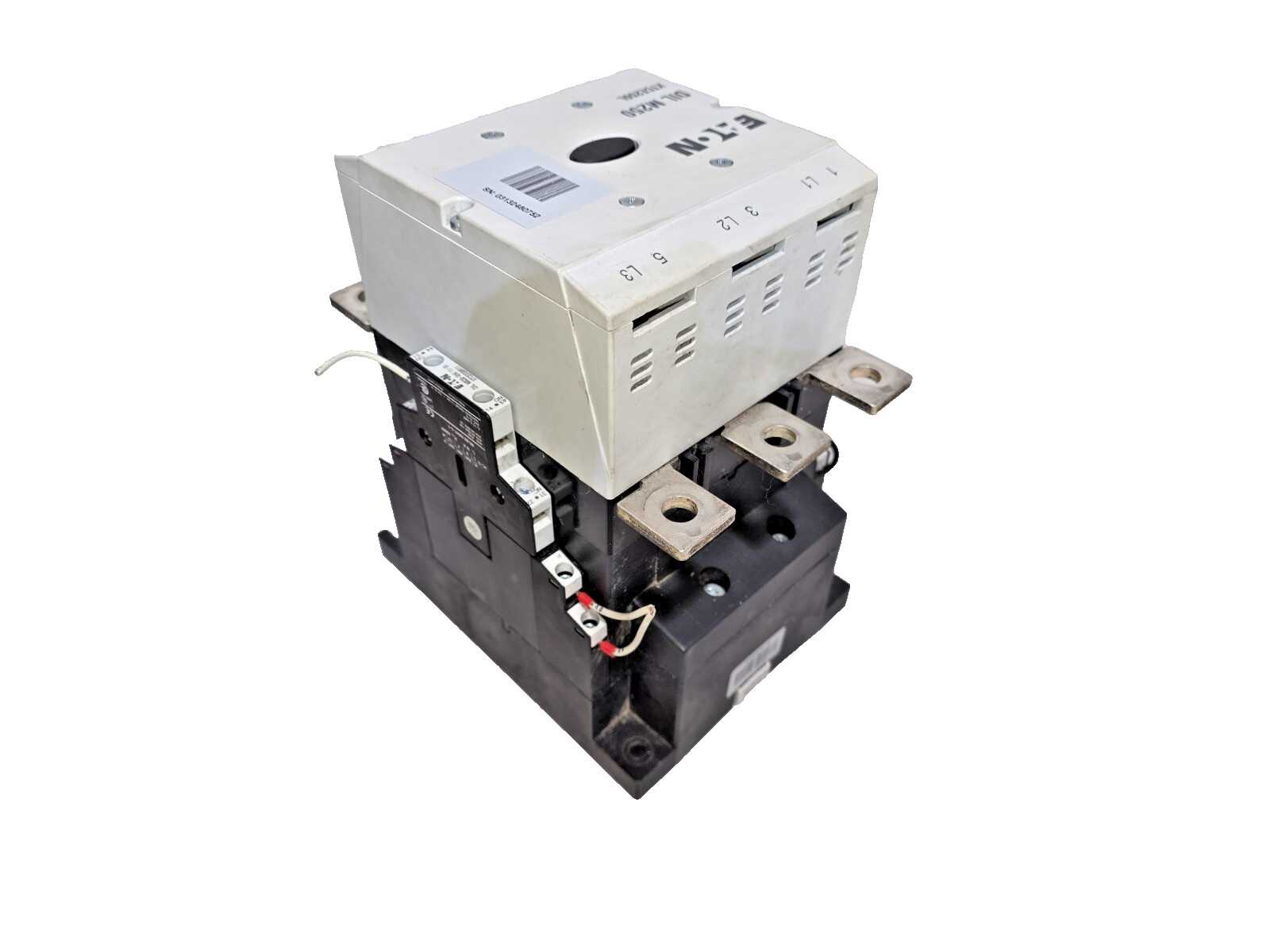

| Type | 3 pole IEC contactor, non reversing |
| Rated operational current AC-3 | 250 A |
| Motor rating AC-3 at 380 to 400 V | 132 kW |
| UL / NEMA motor ratings | 100 HP at 230 V, 200 HP at 460 V |
| Frame | L, 140 mm |
| Main terminal connection | screw type |
| Coil | plug in module. DILM250 family coil options include 48 to 110 V AC/DC (RA110), 110 to 250 V AC and 110 to 350 V DC (RA250), and 24 to 48 V DC (RDC48) |
| Full catalog number | XTCE250L22A (wide band coil, 2 N/O + 2 N/C aux) |

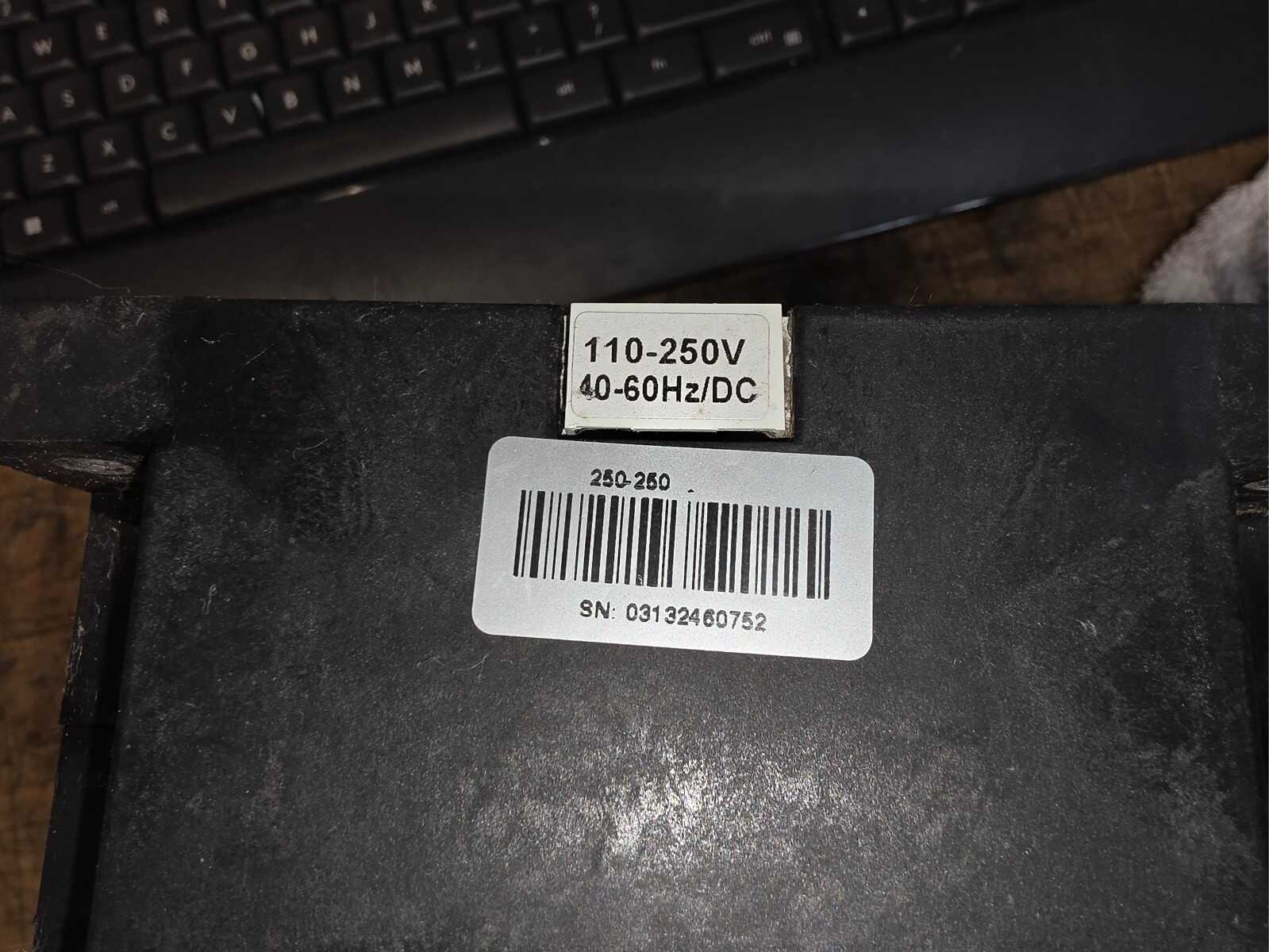

| Coil | 110 to 250 V AC/DC, 40 to 60 Hz, wide band universal plug in module |

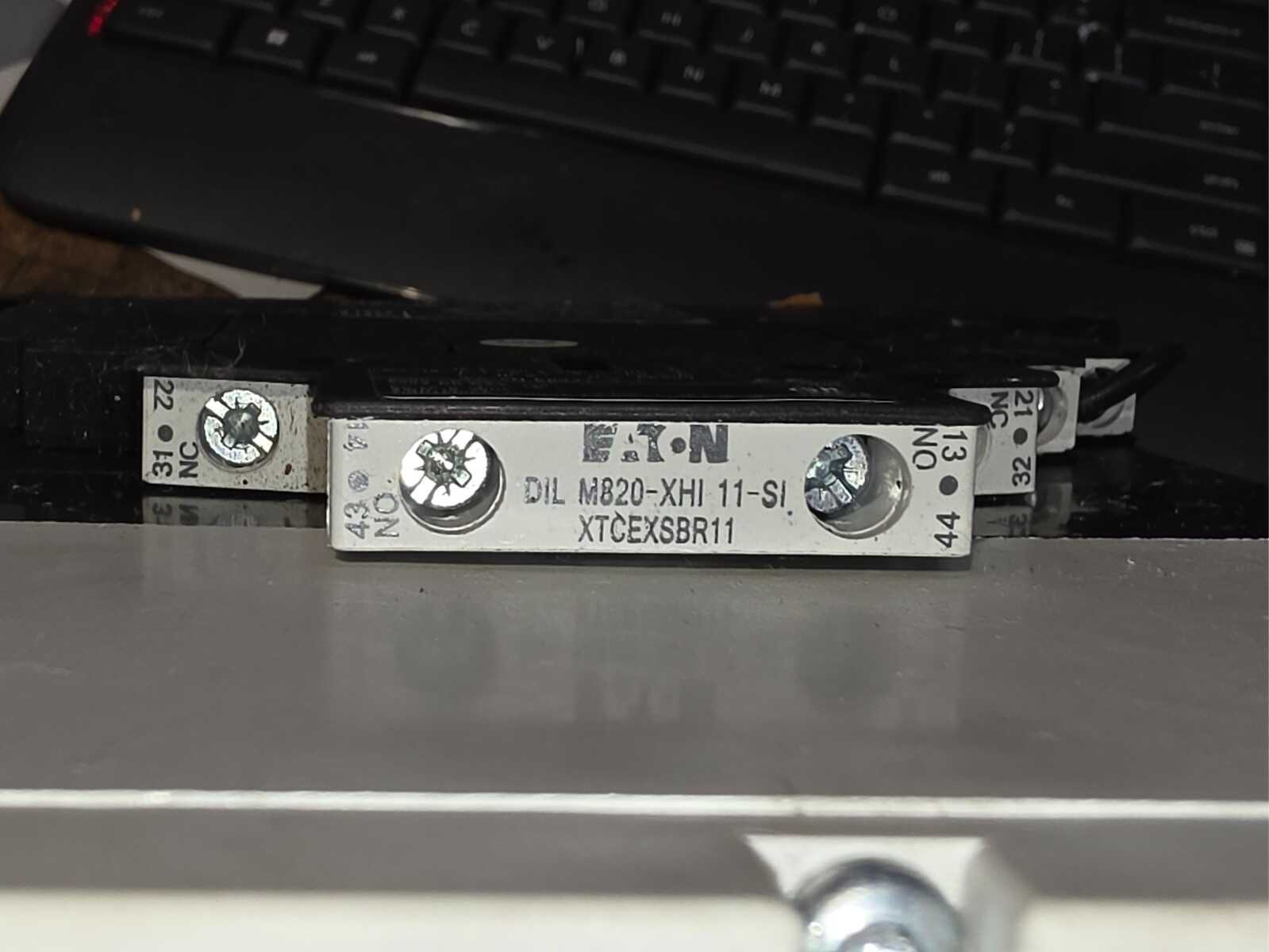

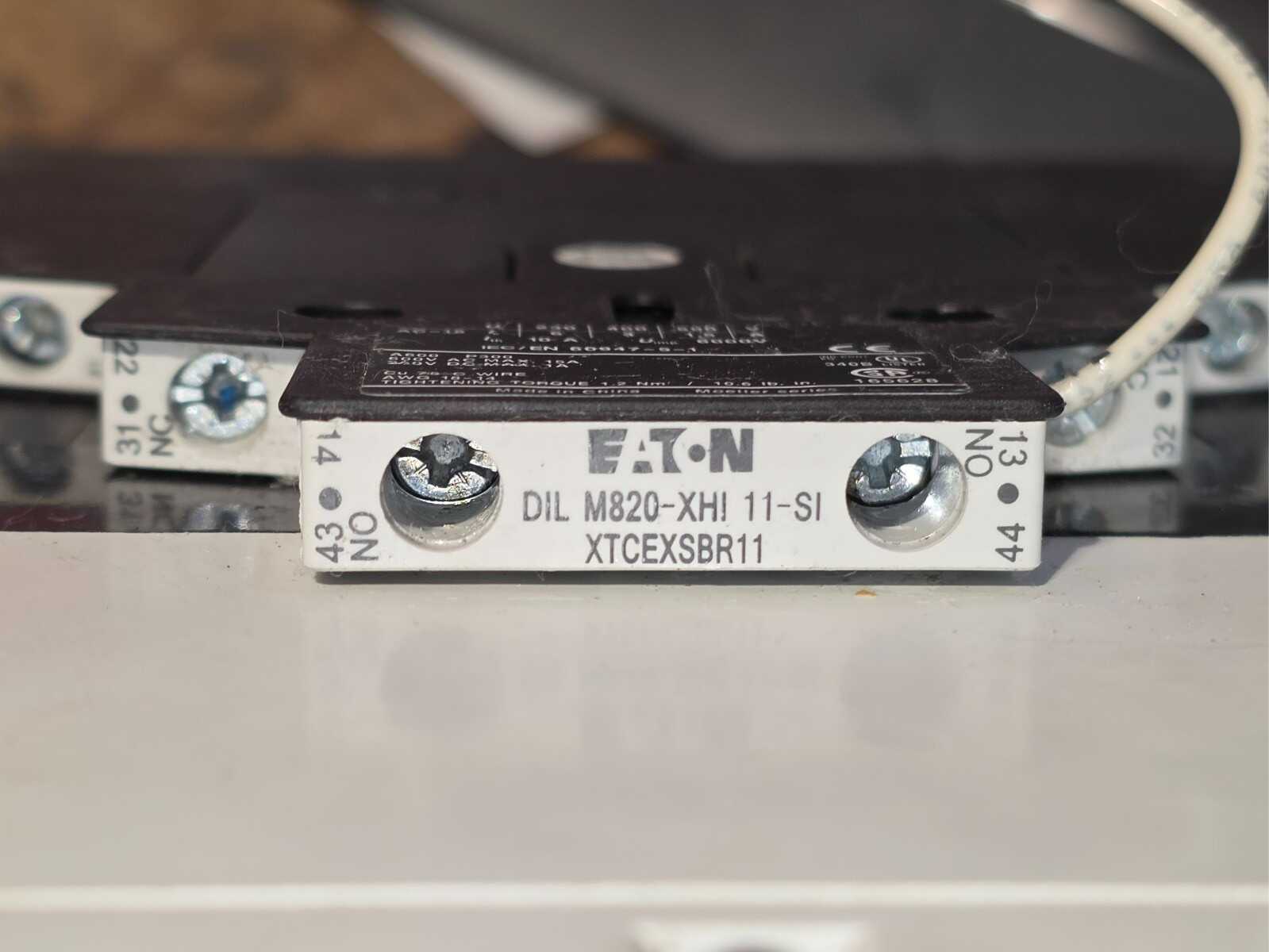

| Auxiliary contacts fitted | 2 x XTCEXSBR11 / DIL M820-XHI 11-SI, 1 N/O + 1 N/C each, mirror contact (safety) variant |

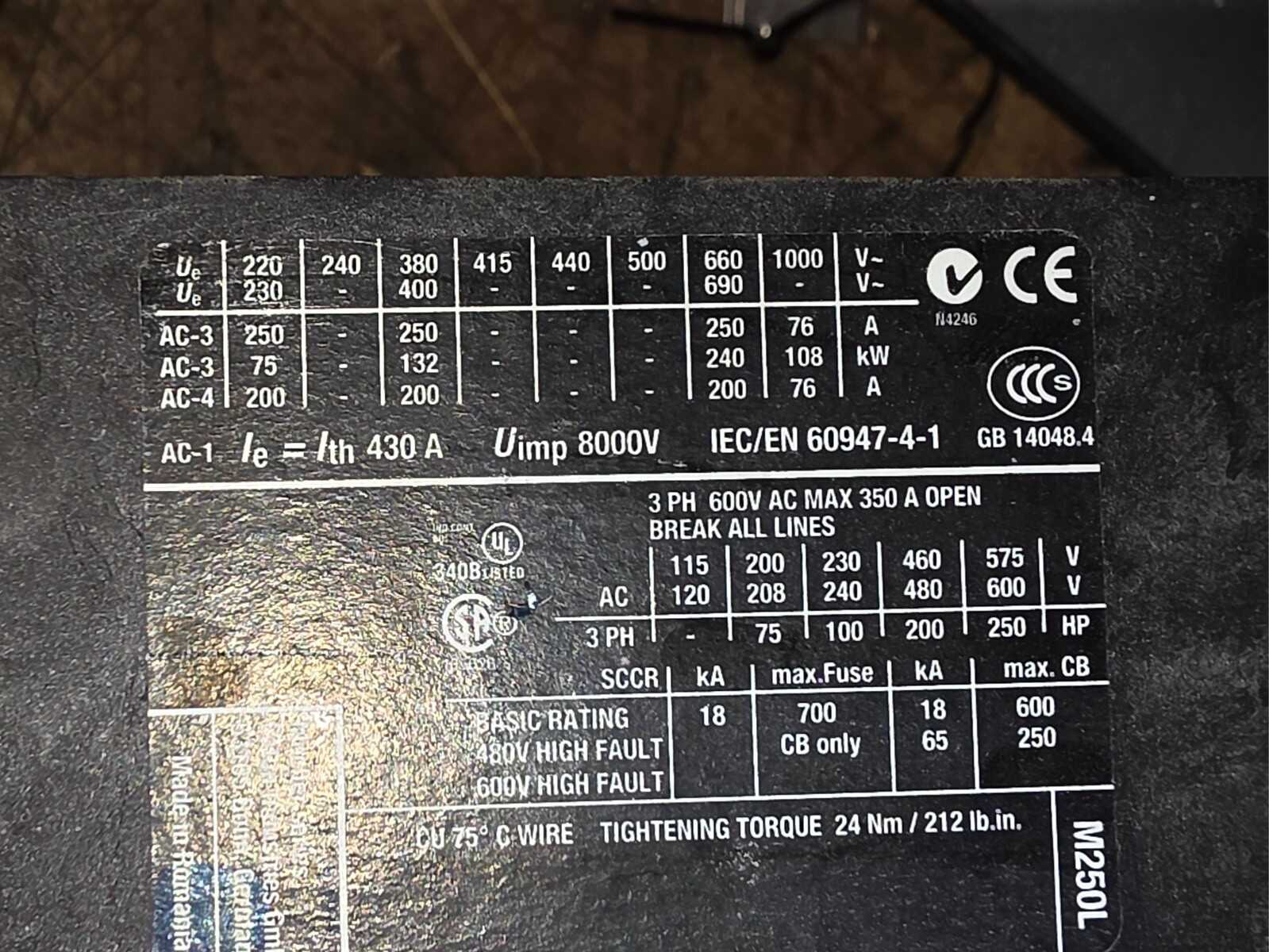

| Rated operational current AC-1 | Ie = Ith 430 A |
| Rated impulse withstand Uimp | 8000 V |
| SCCR | 18 kA basic, 65 kA at 480 V high fault |
| UL horsepower | 75 HP at 115-120 V, 200 HP at 460-480 V, 250 HP at 575-600 V |
| Housing nameplate | M250L, made in Romania |

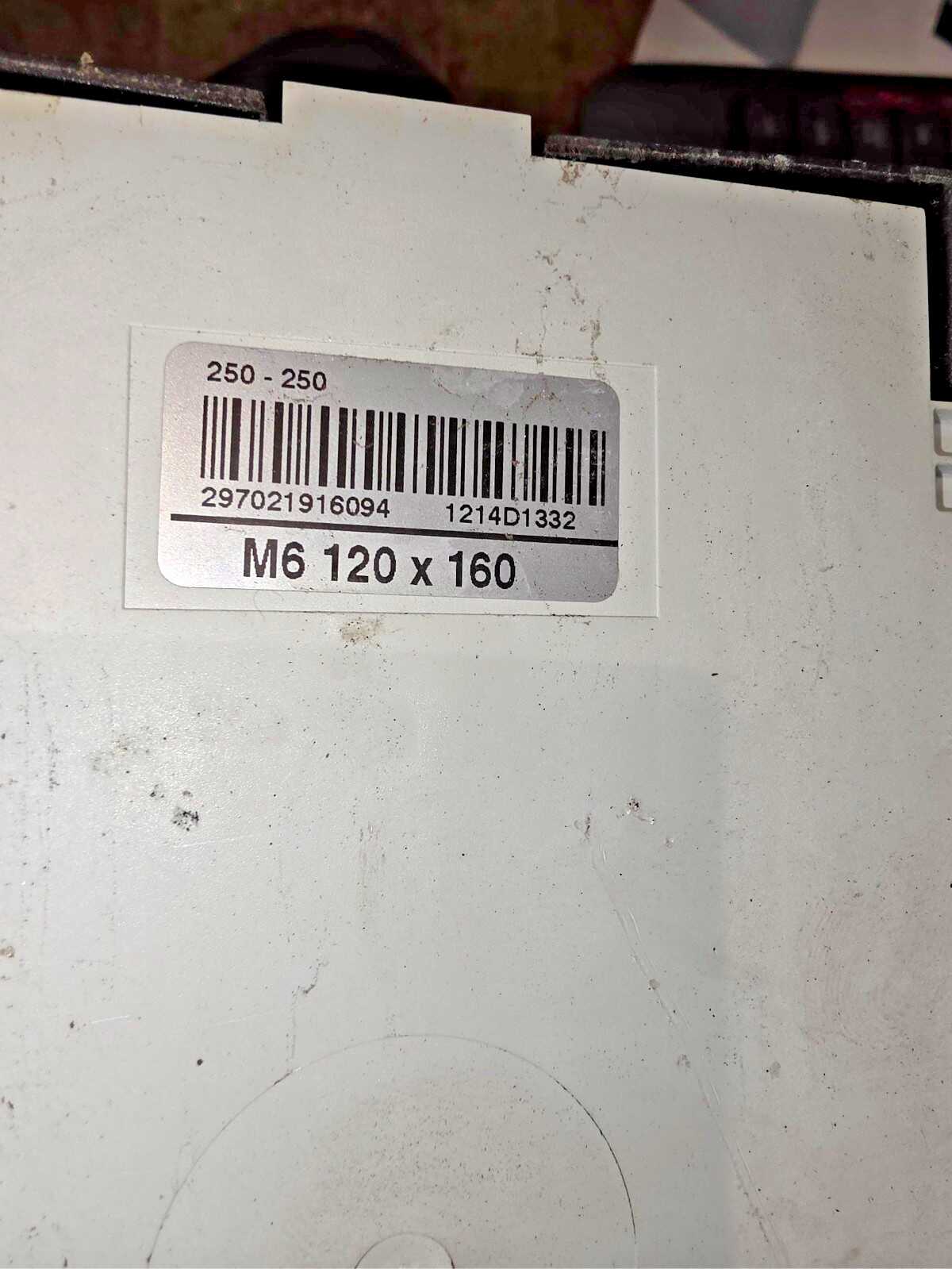

| Build code | 1214D1332 |

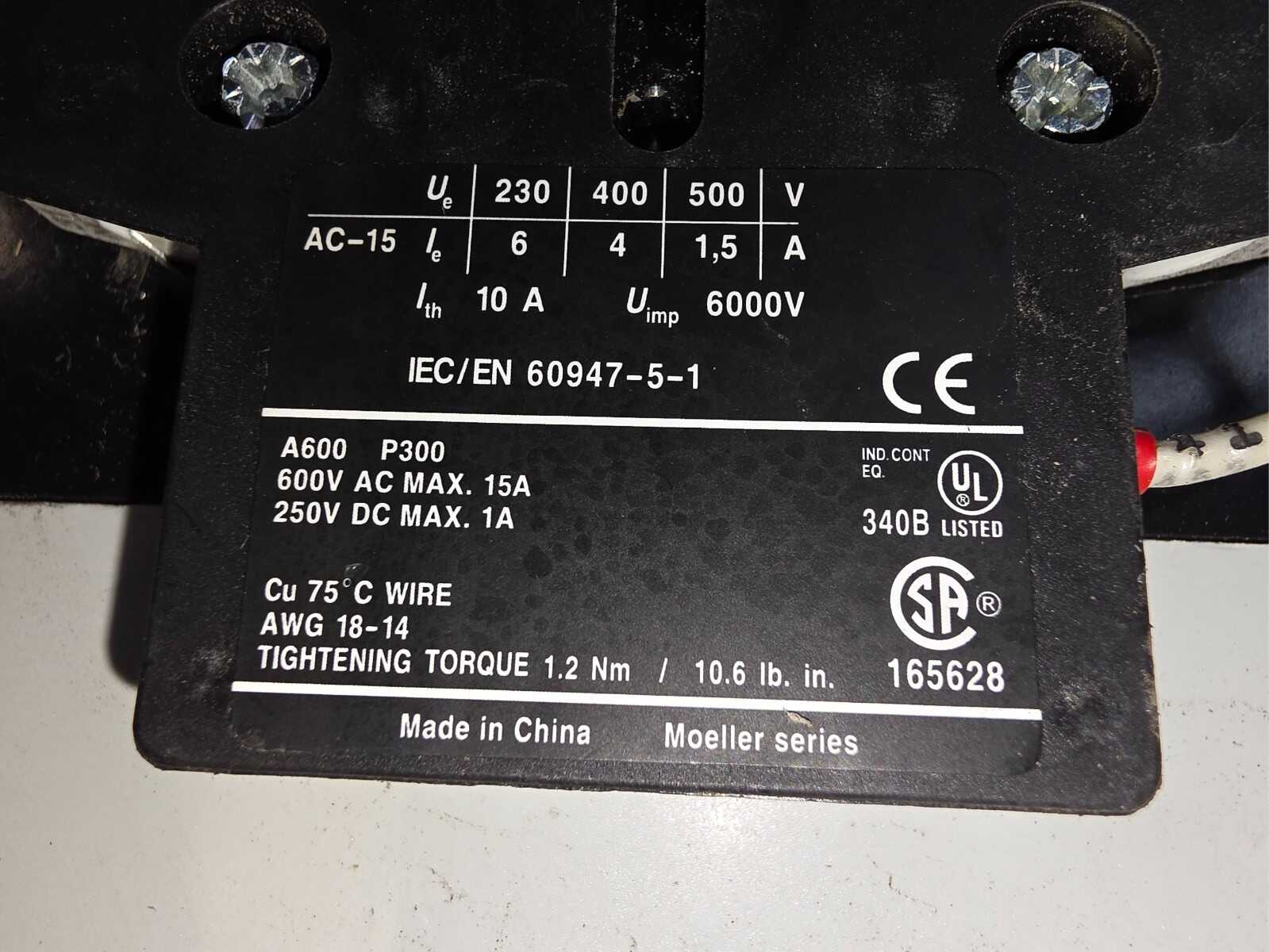

| Auxiliary block listings | UL guide 340B, CSA file 165628, Moeller series |
| Serial number on unit | 03132460752 |
[list what ships with the unit]
Not included:
Coil voltage is determined by the installed coil module, not by the contactor body. The front of the housing carries only the base catalog number XTCE250L with no coil suffix. Confirm the coil module marking against your control circuit voltage using the coil module photo before ordering.
Auxiliary contact count is determined by the side mounted blocks. The /22 versions of this contactor, XTCE250L22 and DILM250/22, carry 2 N/O plus 2 N/C auxiliaries. See photos for what is fitted on this unit.
Panel mount, large frame. Main terminals are intended for bus bar or compression lug connection. Connection hardware is not included unless shown in the photos.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 17.0000 lbs |
|---|---|
| Dimensions | 12 × 10 × 10 in |
| Brand | |
| SERIES | XTCE |
| TYPE | Standard IEC Contactor |
| CURRENT TYPE | AC |
| COIL VOLTAGE | 400 V |
| NUMBER OF PHASES | 3 |
| MPN | |
| NUMBER OF POLES | 3-Pole |
| FEATURES | Non-Reversing |
| IEC UTILIZATION CATEGORY | AC-3 |
| Condition | |
| Condition Description |
