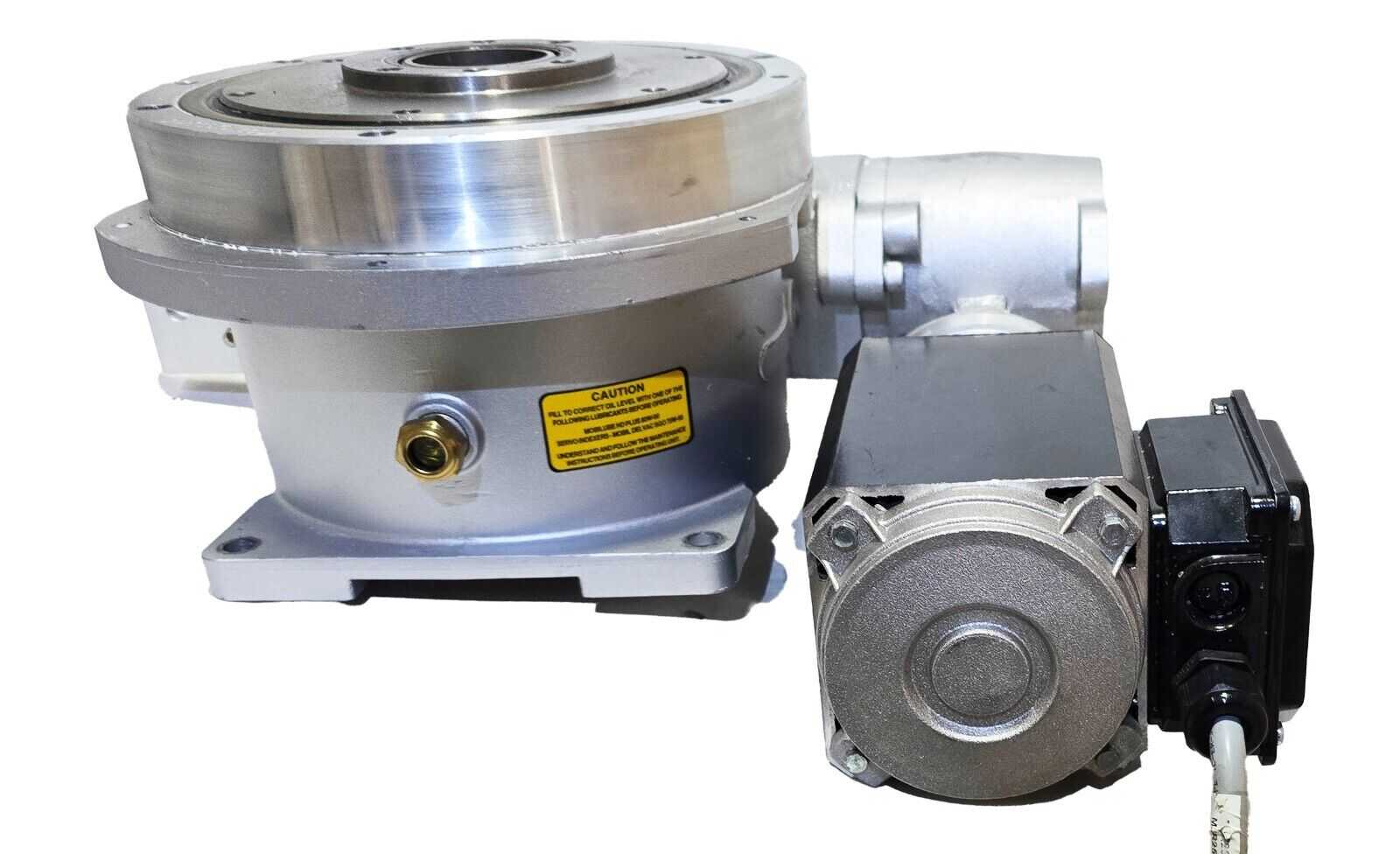

Destaco Camco 601RDM6H24-270 Roller Dial Rotary Index Drive Table 1/3HP 180V

Destaco Camco 601RDM6H24-270 Roller Dial Rotary Index Drive Table 1/3HP 180V
General Overview
The 601RDM6H24-270 is a high-precision cam-operated rotary index drive, designed for smooth and accurate positioning with a fixed number of stations. It features a preloaded, backlash-free design to ensure high accuracy and repeatability in demanding applications.
Key Specifications

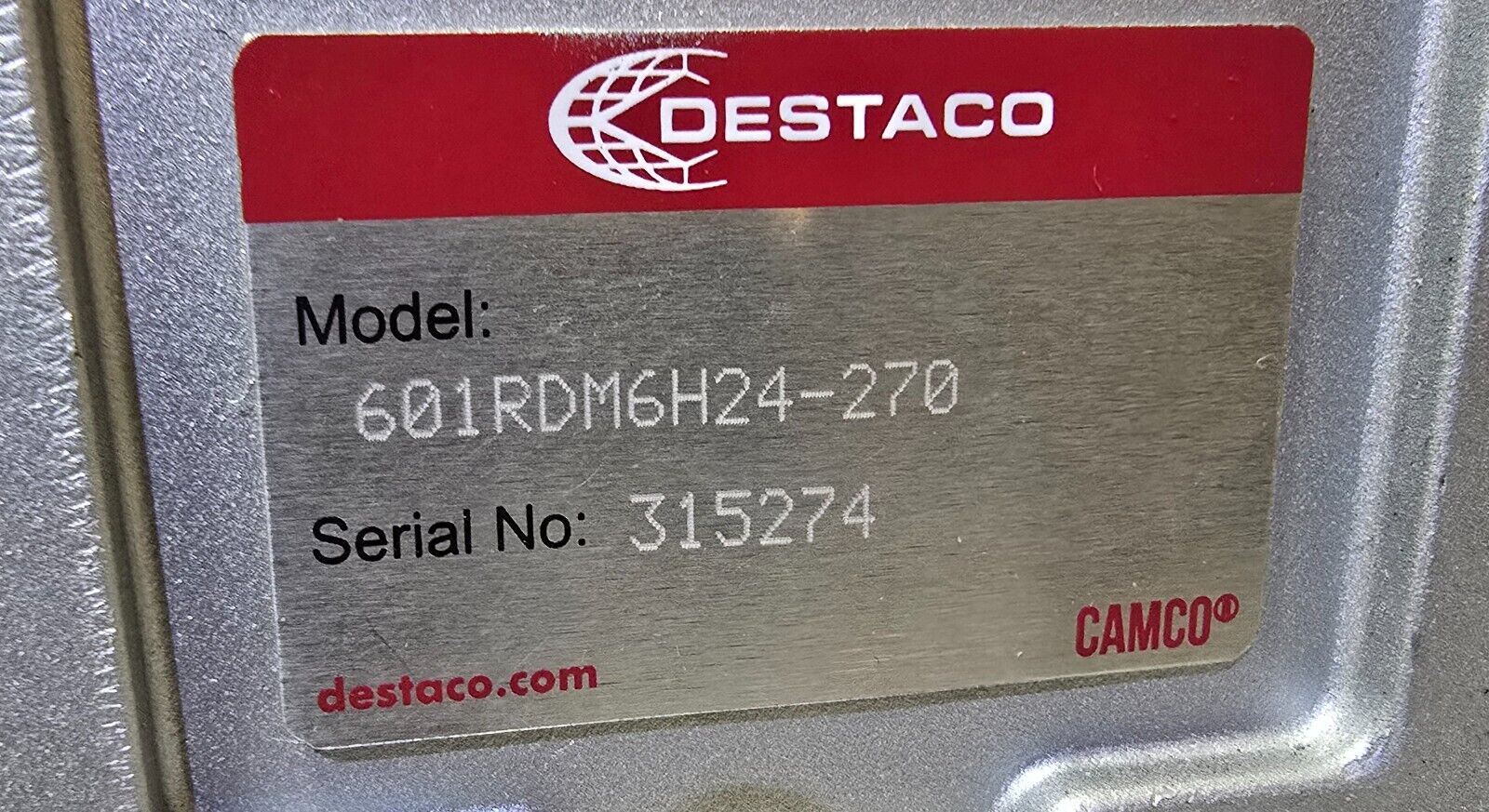

Model: 601RDM6H24-270
Number of Stops: 6
Index Angle: 270°

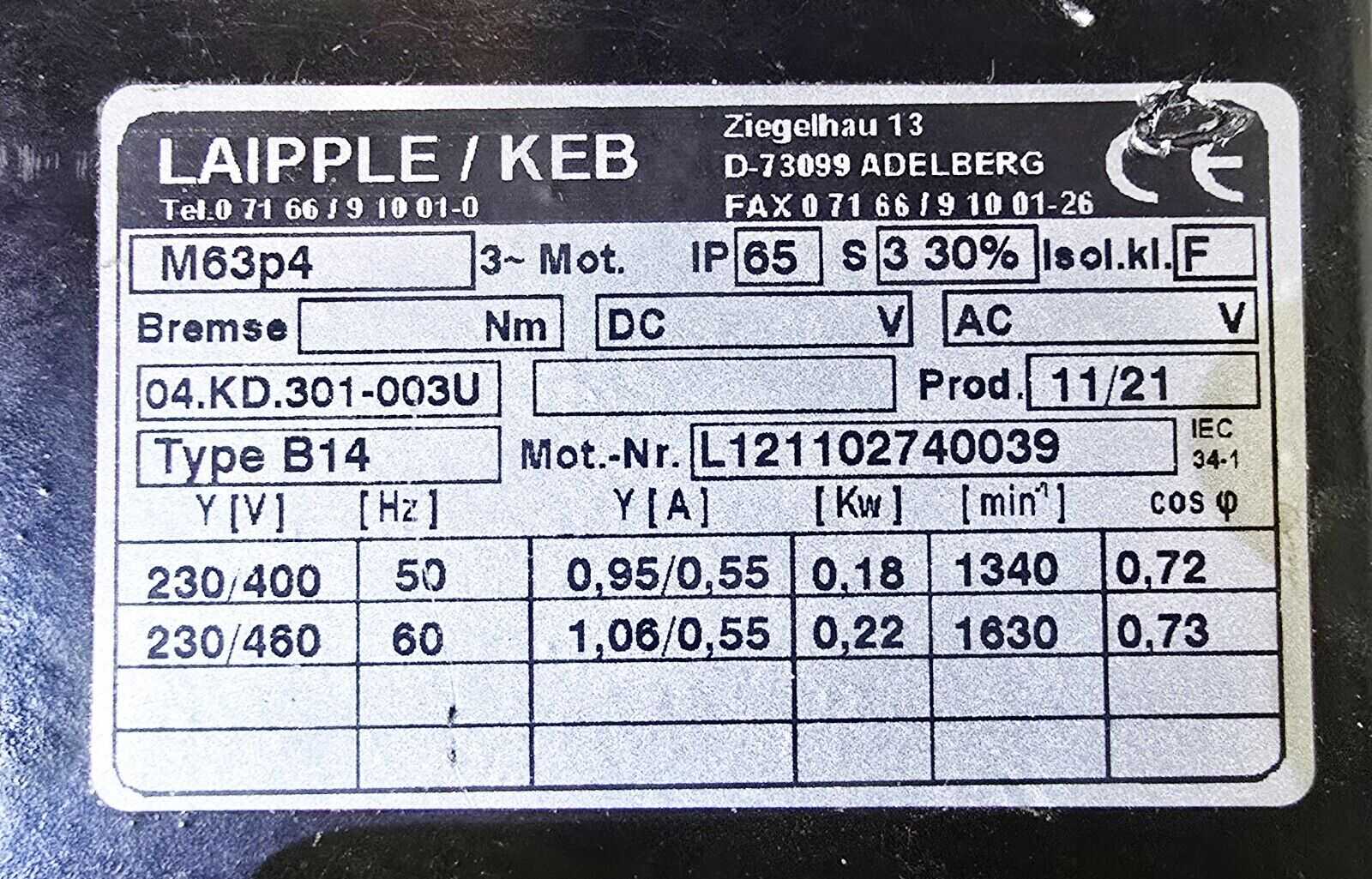

Motor Power:1/3 HP
Voltage:180V DC

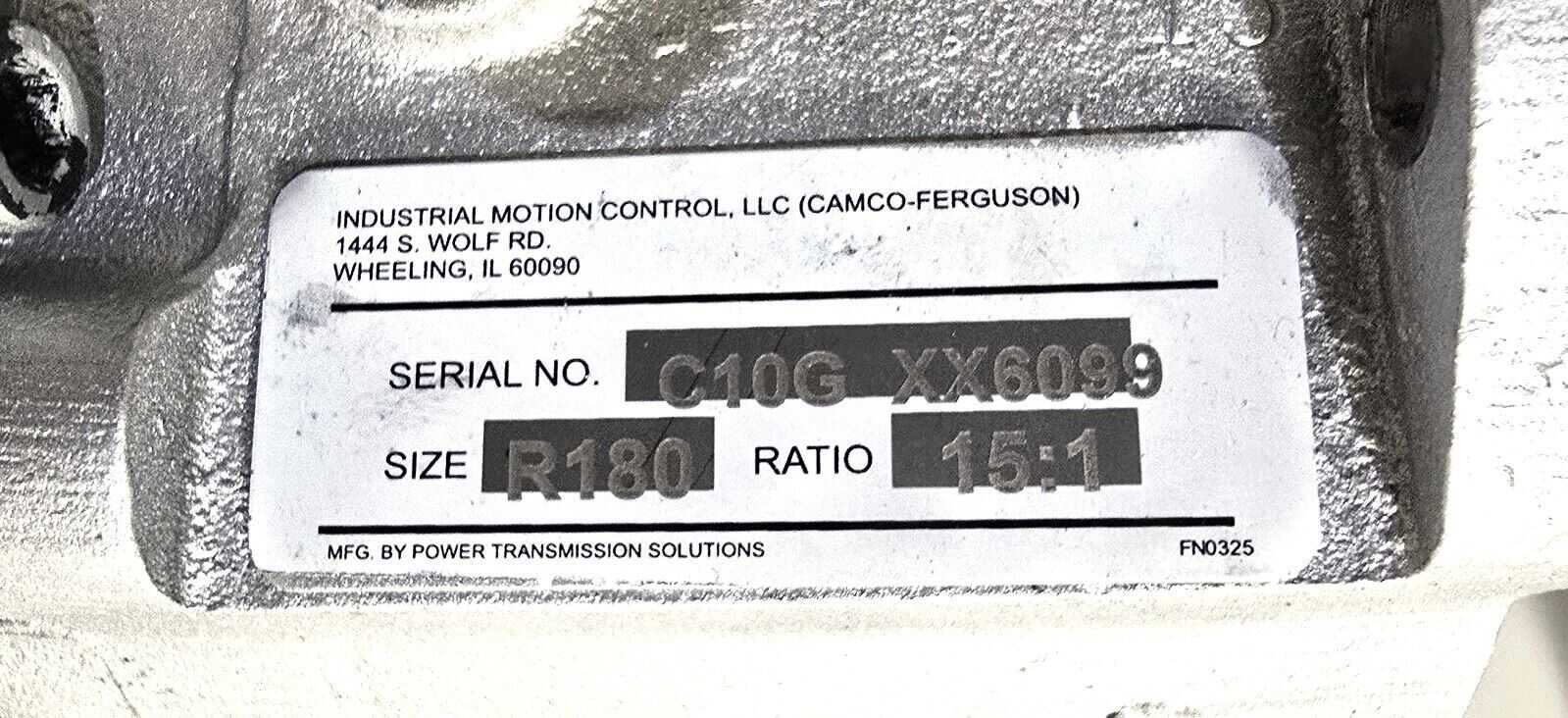

Reducer Type: R180 Reducer
Reducer Ratio:Varies (Typically 15:1 to 60:1)
Indexing Cycles per Minute:Up to 60 (with AC Motor & Inverter Drive), 30 (with DC Motor)
Mounting Configuration: Various mounting options available (horizontal/vertical)
Load Capacities
Radial Load Capacity:945 lbs (4204 N)
Thrust/Axial Load Capacity:2360 lbs (10498 N)
Moment Load Capacity:3305 in-lb (373 N-m)
Performance
Accuracy: ±39 arcsec at 18-inch (457.2 mm) radius
Repeatability: ±10 arcsec at 18-inch (457.2 mm) radius
Indexing Speed Options: Configurable through motor controller

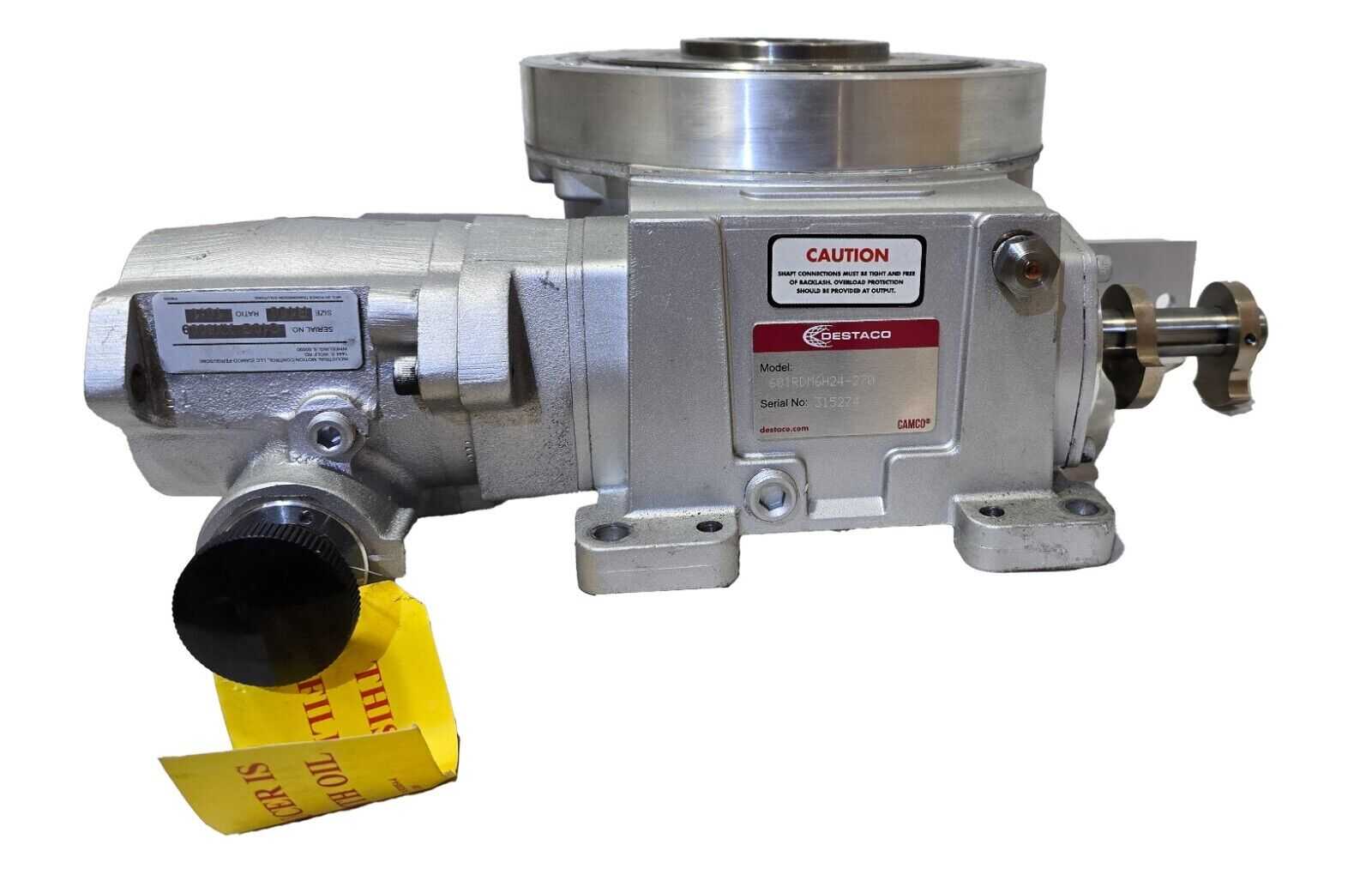

Mechanical Features

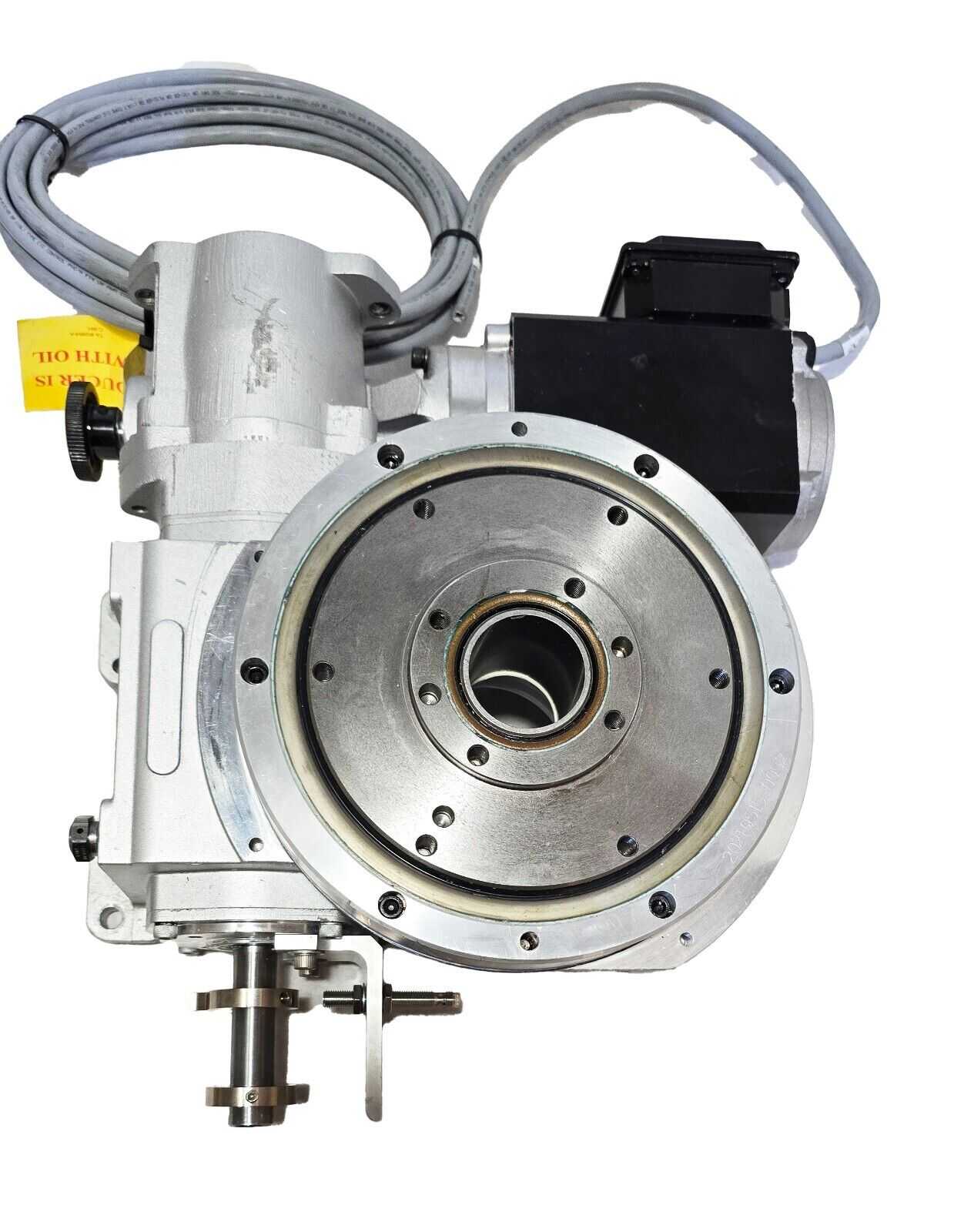

Center Through Hole:1.75 inches (44.5 mm)
Output Mounting Surface: Large output flange supported by a 4-point contact bearing
Overload Protection: Optional 4.0D mechanical overload clutch (standard and thru-hole configurations available)

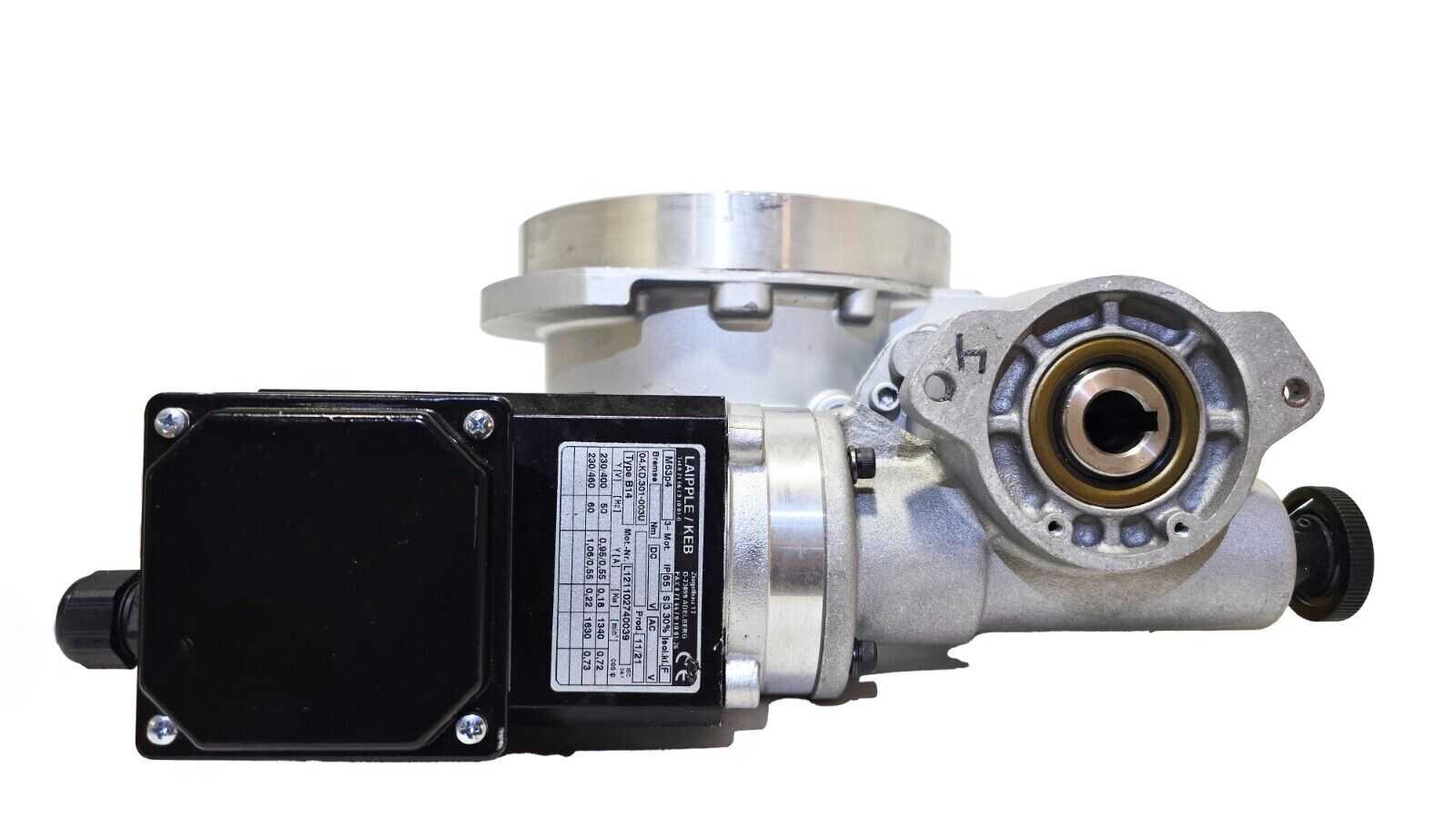

Input Shaft Configuration: Double-extended camshaft with worm gear reducer
Dwell Option: User-controlled variable dwell time
Control & Accessories
Motor Control Options:PowerFlex 523/525 (AC Motor Control)
Varipak DC Motor Control (DC Motor)

Optional Output Clutch Settings:4.0D (Standard Clutch) – Torque settings from 420 in-lb to 4000 in-lb
4.0D (EZ Clutch Adapter Available)

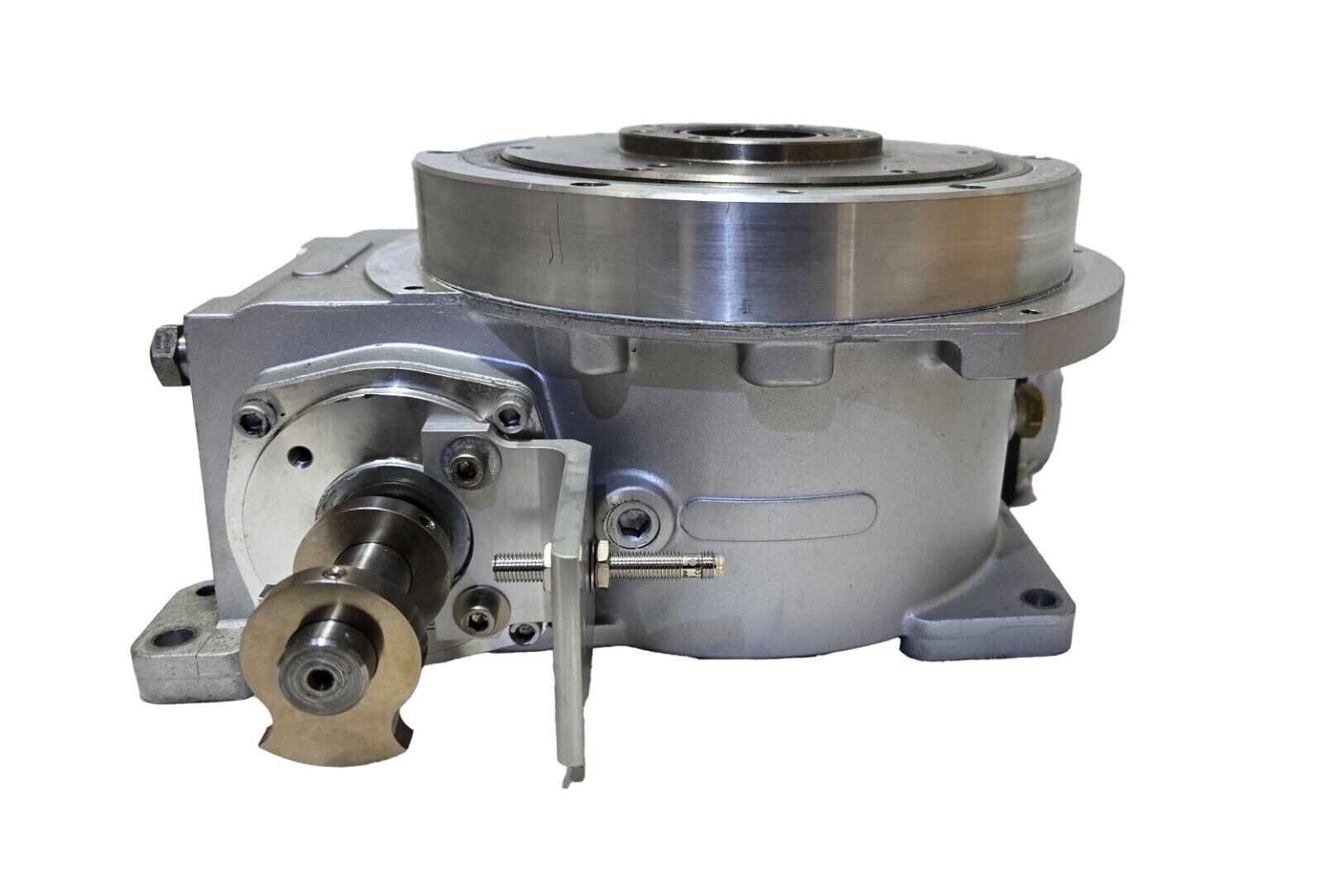

Sensor Options:Single or dual cam with PNP/NPN proximity sensor
Limit switch options for indexing detection

Dimensions
Base Mounting Diameter: 6.50 inches (165.1 mm)
Height to Mounting Surface: 5.94 inches (150.9 mm)
Overall Height: ~8.63 inches (219.2 mm)
Weight: Varies based on motor and configuration
Applications
Assembly Automation
Packaging & Material Handling
Rotary Indexing Applications
High-Precision Positioning Systems
For detailed drawings and installation guidelines, refer to the Destaco RDM Series Catalog.
