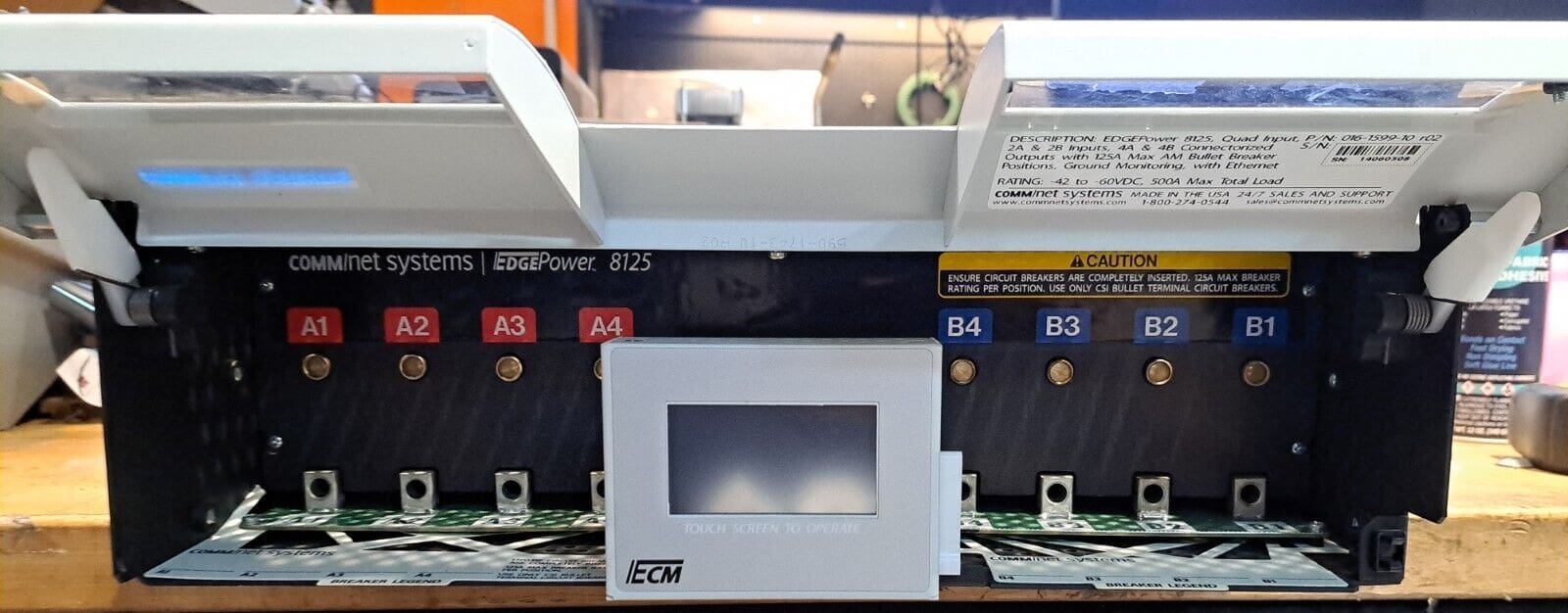

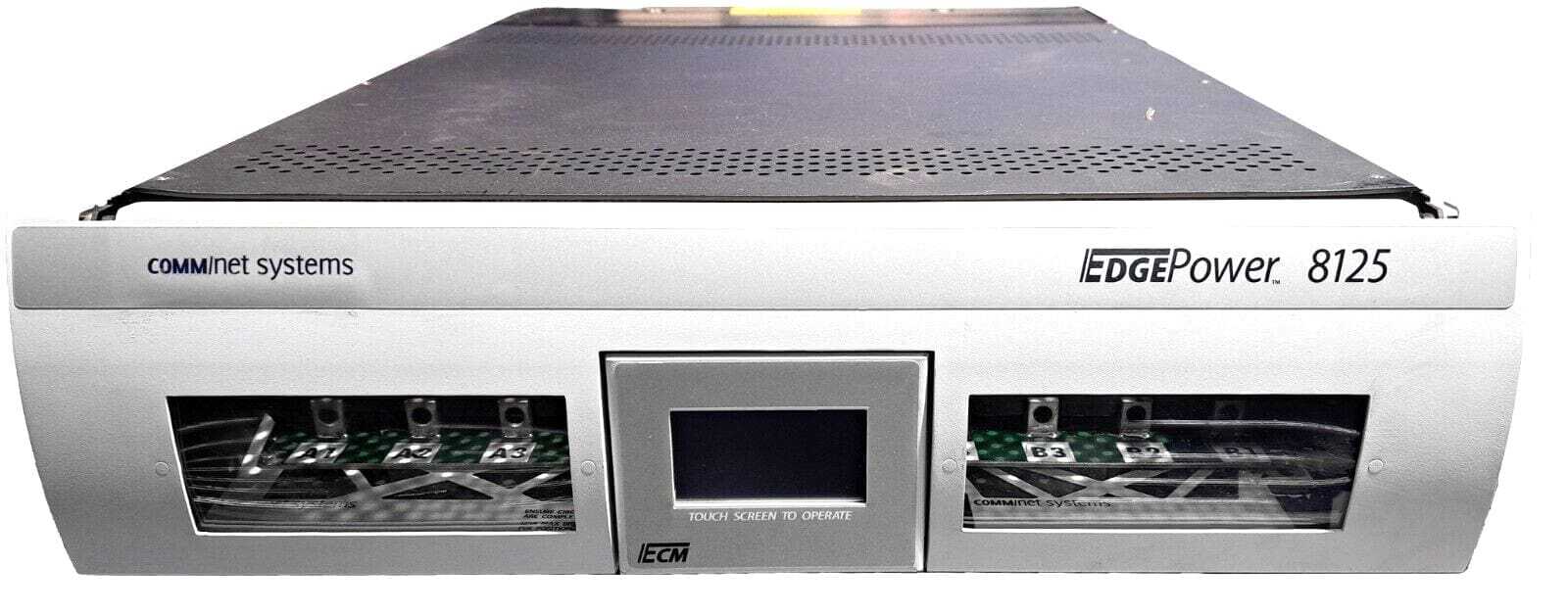

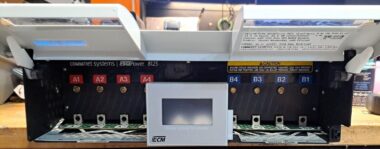

COMM/NET SYSTEMS EDGEPower 8125 Rackmount DC Power Distribution 016-1599-10

OVERVIEW
EDGEPower 8125 offers quick, safe and robust “Plug and Play” style DC power distribution for the ARRIS™ E6000™ Converged Edge Router and similar large routers. The panel is rated at 500A maximum load, 500A max per input.
FEATURES
Occupies 3RU of rack space
Able to mount in 19″ or 23″ configuration
Matches router mounting locations and aligns with router installation
Total rating 500A
2A and 2B inputs, 250A each
Connectorized outputs
4 output channels per bus
Enclosed Breaker Compartment to prevent nuisance trips
Supervisory Controller w/ LCD touchscreen
UL 94 V-0 rated input & output isolators

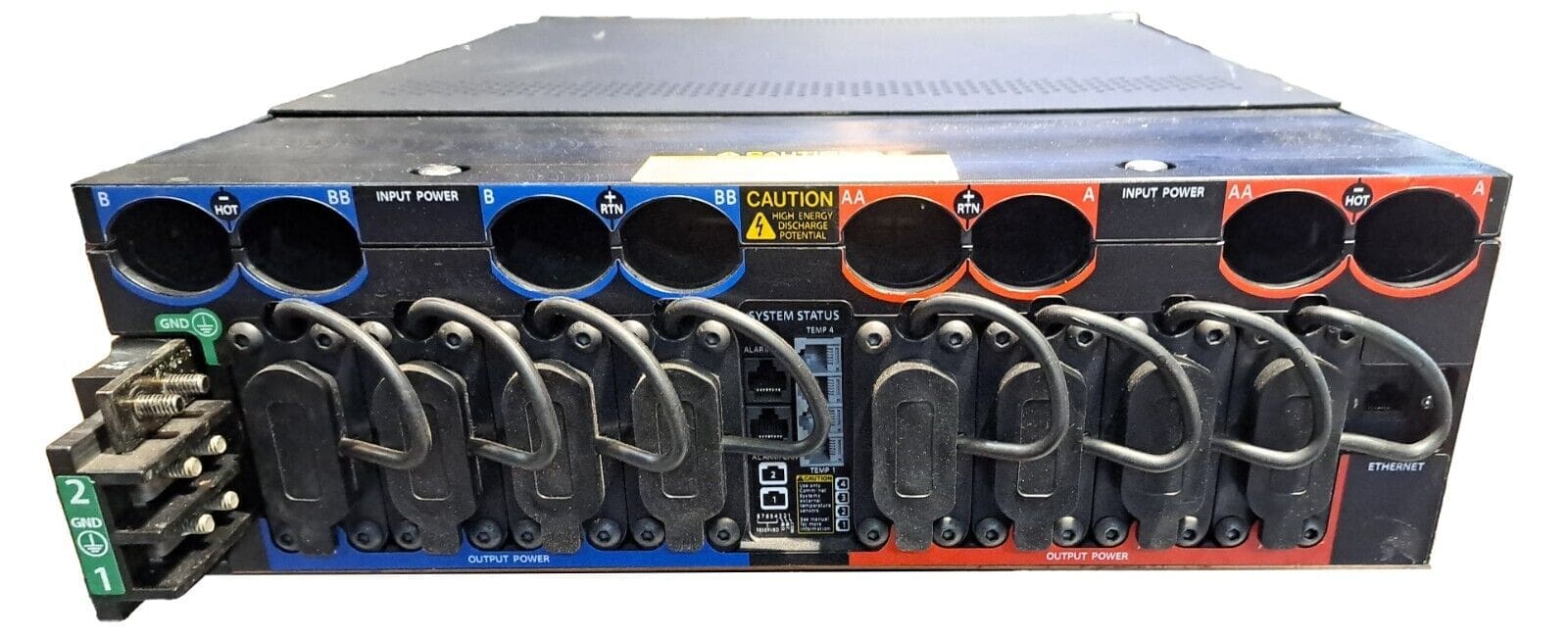

Sturdy rear lacing bar to support input &output cable routing

SPECIFICATIONS
Electrical
Voltage
-40VDC to -60VDC

Input
500A total;
2A/2B

Output
8 output channels; 4A/4B

Mechanical
Dimensions
19″ W x 5.2″ H x 31.25″ D

Mounting
19/23″ via reversible mounting ears

Color
Black powdercoat chassis
