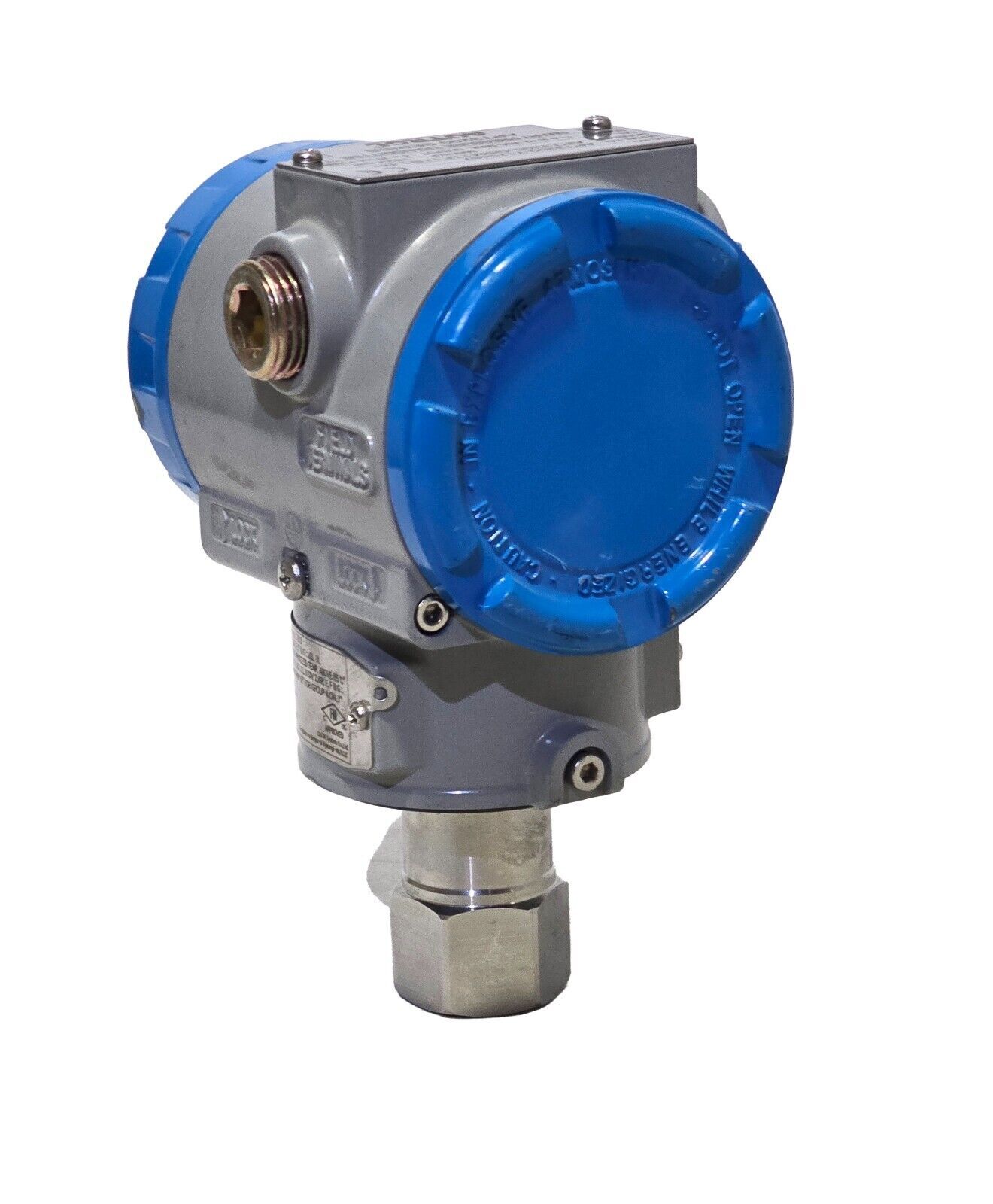

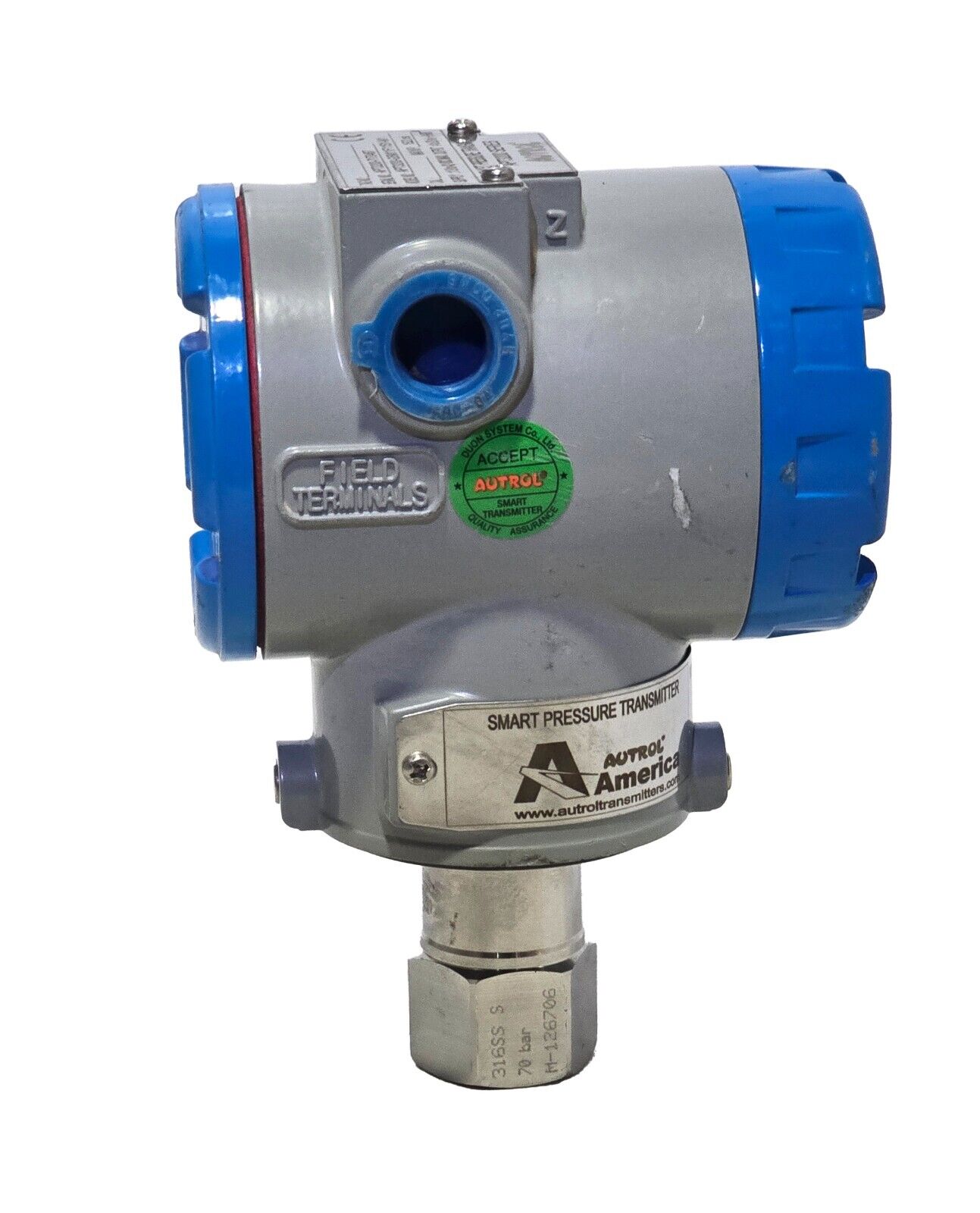

AUTROL SMART Pressure Transmitter, APT3200-G5M11F11S1-MT

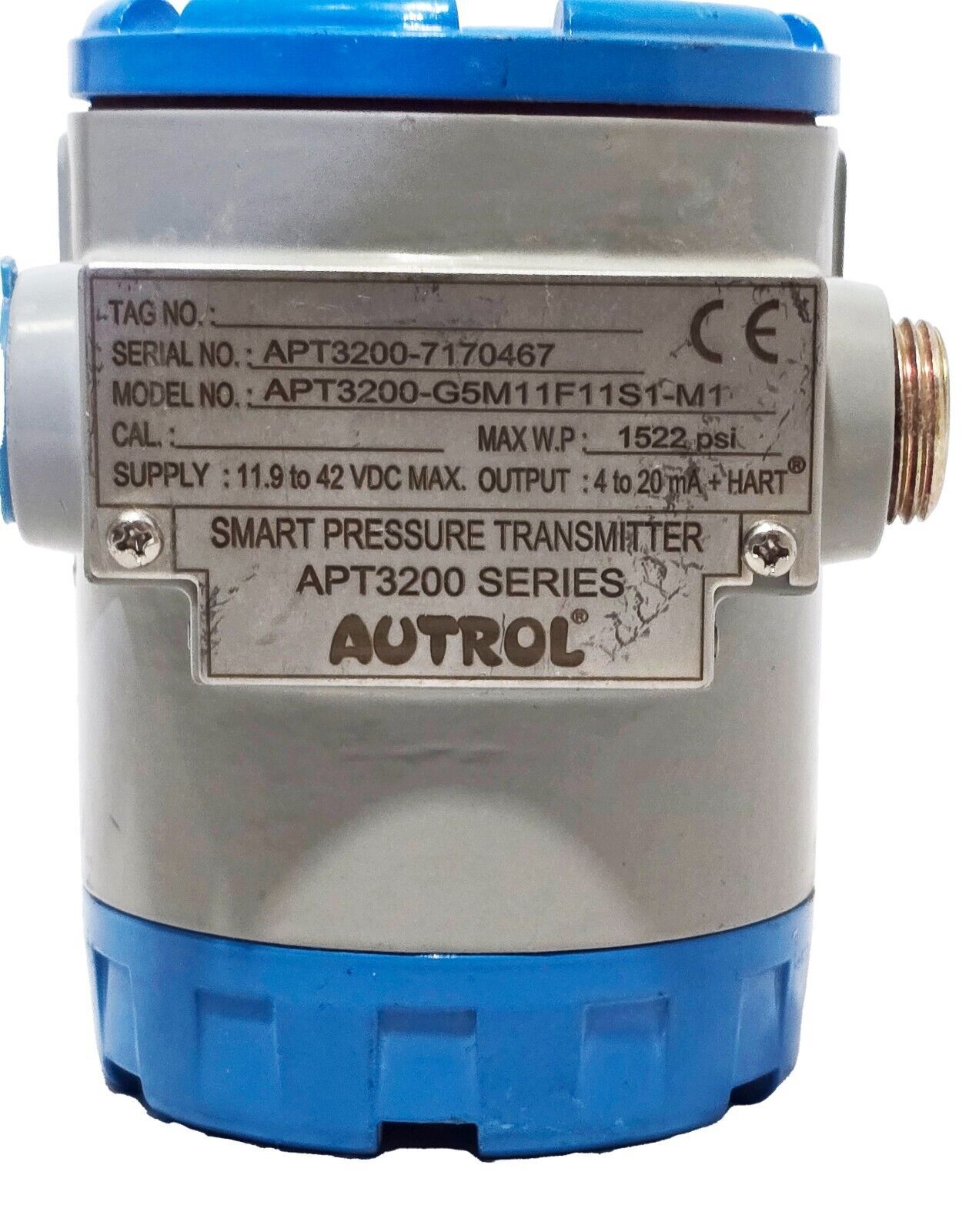

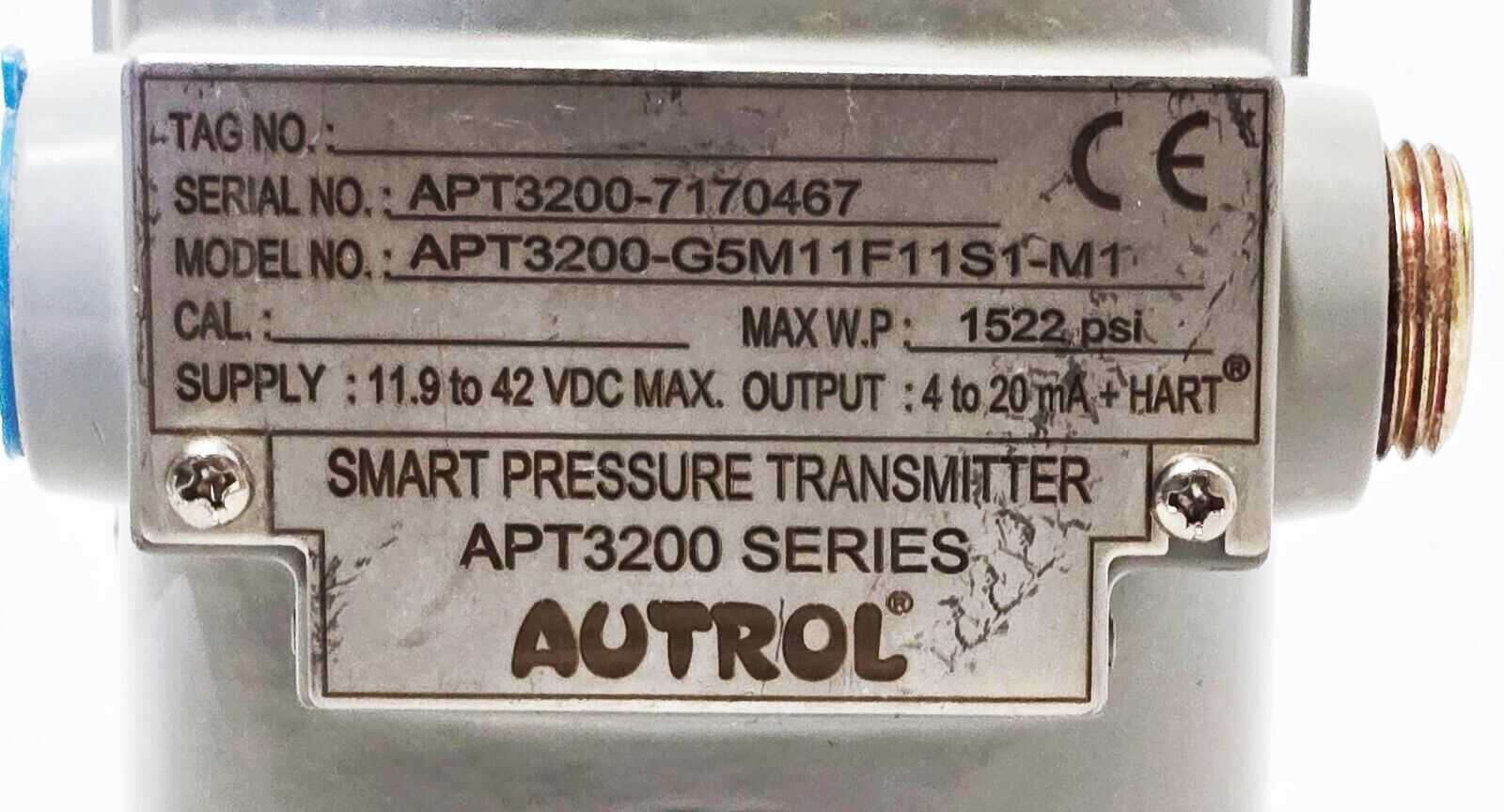

APT3200-G5M11F11S1 – Specification Sheet

General Description:
Type: Smart Gauge Pressure Transmitter
Sensor Technology: Silicon pressure sensor, encapsulation technology
Communication Protocol: HART® protocol (Digital Communication)
Measurement Capabilities:
Pressure Type: Gauge Pressure
Sensor Range (G-type): Range Code 5: 0 to 726 PSI (Calibrated span: 7.2 PSI minimum)

Accuracy: ± [0.025 + 0.005 × (URL/span)]% of Span (0.01 URL ≤ Span < 0.1URL)
± 0.075% of Span (0.1 URL ≤ Span ≤ URL)

Stability: ±0.125% URL for 36 months

Rangeability: 100 : 1
Output
Signal: 4-20 mA (HART digital communication)
Loop Resistance: 0-1500 Ω operation, 250-550 Ω for HART communications

Power Requirements
Supply Voltage: 12-45 Vdc (17.5 Vdc recommended at 250 Ω load)
Power Supply Effect: ±0.005% Span per volt
Diagnostic and Adjustment Functions:
Zero/span adjustments, sensor zero trimming
DAC output trimming
Self-compensation, diagnostics, zero-point adjustment
Fail-mode process functions (fail high or low selectable)
Environmental Conditions
Ambient Temperature: -40°C to +85°C
Process Temperature Limits: -40°C to +120°C
Storage Temperature: -40°C to +85°C
Stability: ±0.125% URL over 36 months
EMC Compliance: EMI: EN50081-2
EMS: EN50082-2

IP Rating: IP66/IP67 Waterproof
Material Specifications
Wetted Parts: Isolating diaphragms (316L Stainless Steel, Tantalum, Hastelloy C optional)
Fill Fluid: Silicone oil (DC200)
Housing Material: Aluminum (standard), Stainless Steel 316L (optional)
Waterproof Rating: IP67
Approvals & Certifications
Explosion-proof and Intrinsic Safety Approvals: ATEX, FM, FM Canada, KOSHA, GOST, KCs ATEX Explosion Proof: Ex d IIC T6, IP67 (Ambient -20°C to +60°C)
FM/ FM Canada: Class I Division 1 Groups A-D explosion proof, Class II Division 1 and 2, Non-incendive Class I Division 2
Marine Certifications: ABS, LR, BV, DNV

Physical Specifications
Process Connection: 1/2-14 NPT female (standard), 1/4-18 NPT (optional)
Electrical Connection: 1/2-14 NPT conduit with M4 screw terminals
Weight: Standard Aluminum Housing: 1.7 kg (3.74 lb)
Optional Stainless Steel Housing: 2.83 kg (6.23 lb)

Optional Features Included in this Item's Model Code
G5: Gauge Pressure range (0-726 PSI)

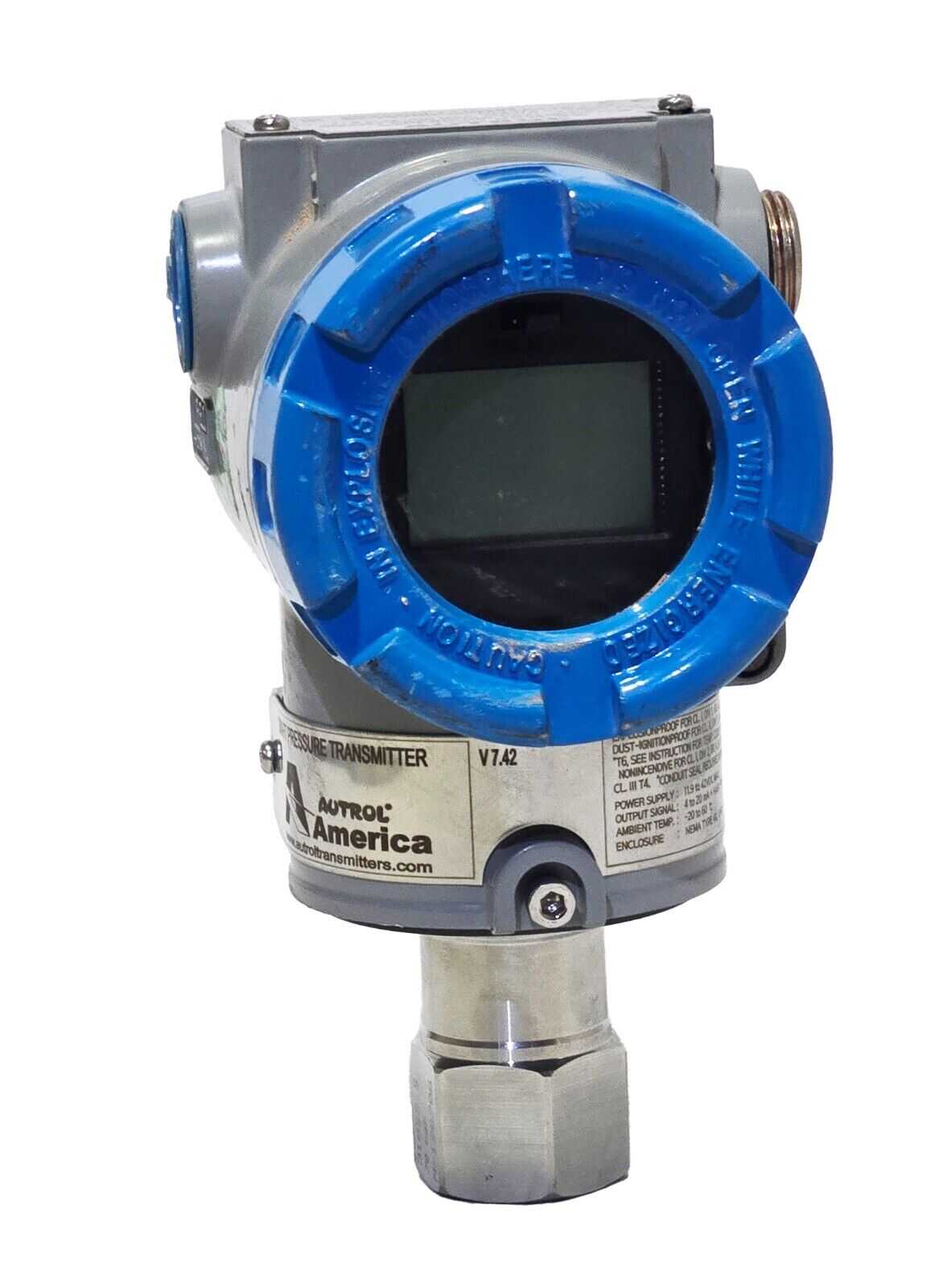

M1: LCD Indicator (5-digit display, user-defined units)
1: Epoxy-Polyester painted aluminum electrical housing, 1/2-14 NPT
F1: FM & FM Canada explosion-proof approval
1: Fill fluid: Silicone (DC200)
S1: Process Connection: Standard 1/2-14 NPT female
Additional built-in options: EEPROM write protection, automatic ambient temperature compensation, self-diagnostics, configurable damping/filtering.
Dimensions & Weight
Dimensions (standard model): Approx. housing size: 160 mm height × 112 mm width × 113 mm depth

Weight: Standard aluminum housing: 1.7 kg (3.74 lb)
Stainless steel housing option: 2.83 kg (6.23 lb)
