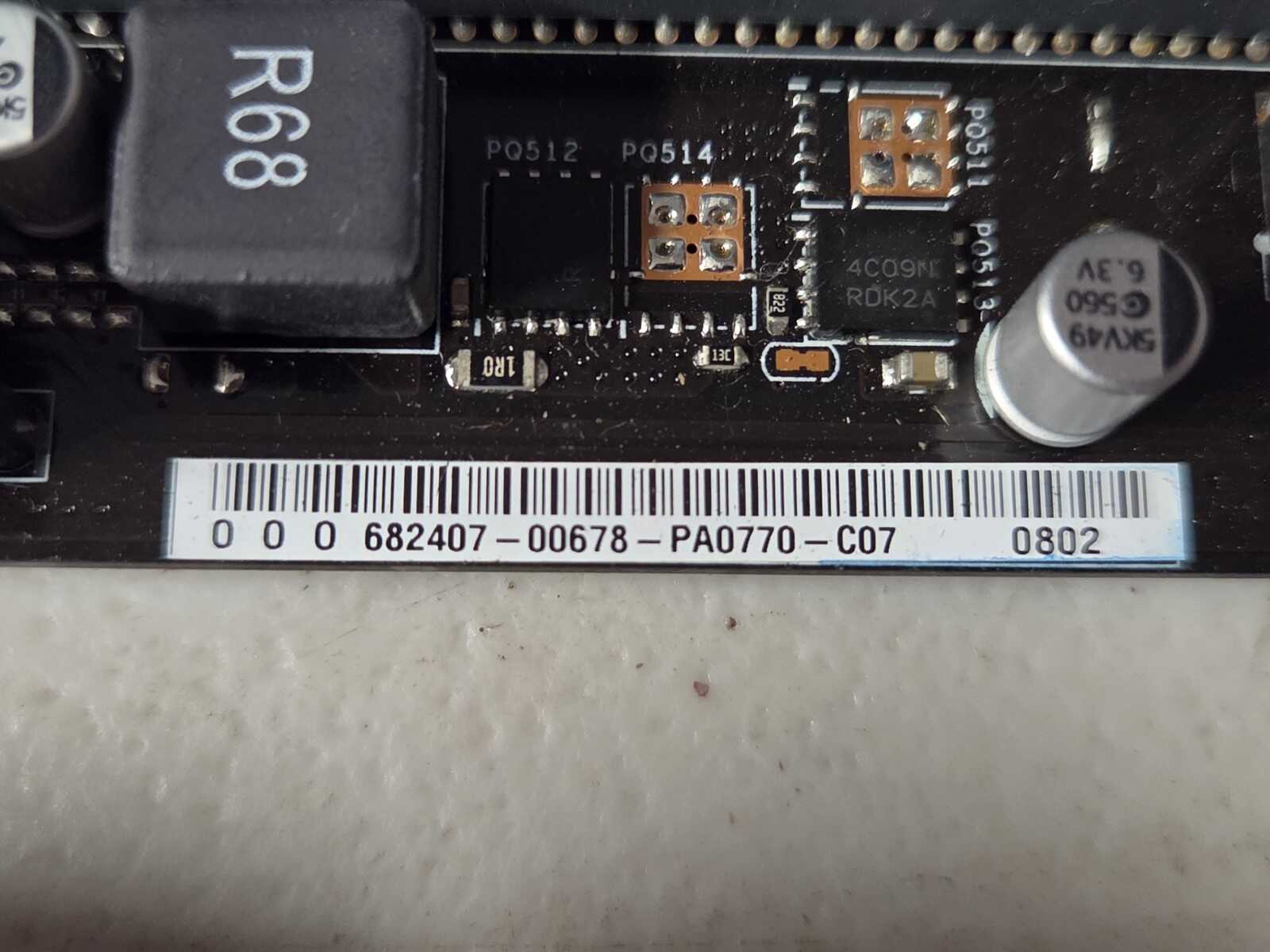

ASUS H110-I/M32CD4/DP_MB Rev. 1.04 micro ATX desktop motherboard, socket LGA1151, Intel H110 chipset. Supplied as a working platform with an Intel Core i3-6100 (SR2HG) processor installed, one 8GB DDR4-2133 DIMM fitted, the ASUS OEM CPU cooler fitted, and a Realtek RTL8821AE 802.11ac plus Bluetooth 4.0 mini PCIe card installed. This is the OEM board used in ASUS M32CD series desktops, ASUS model 90PA0770. Board barcode 682407-00678-PA0770-C07.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | ASUS 90PA0770 (H110-I/M32CD4/DP_MB); Intel SR2HG (i3-6100); RAM ASUS 03A08-00020600 / SK hynix HMA41GU6AFR8N; WLAN ASUS 0C011-00157200 (Realtek RTL8821AE); cooler Delta AUC0912HE-00 / FHSA9025S-1687 |

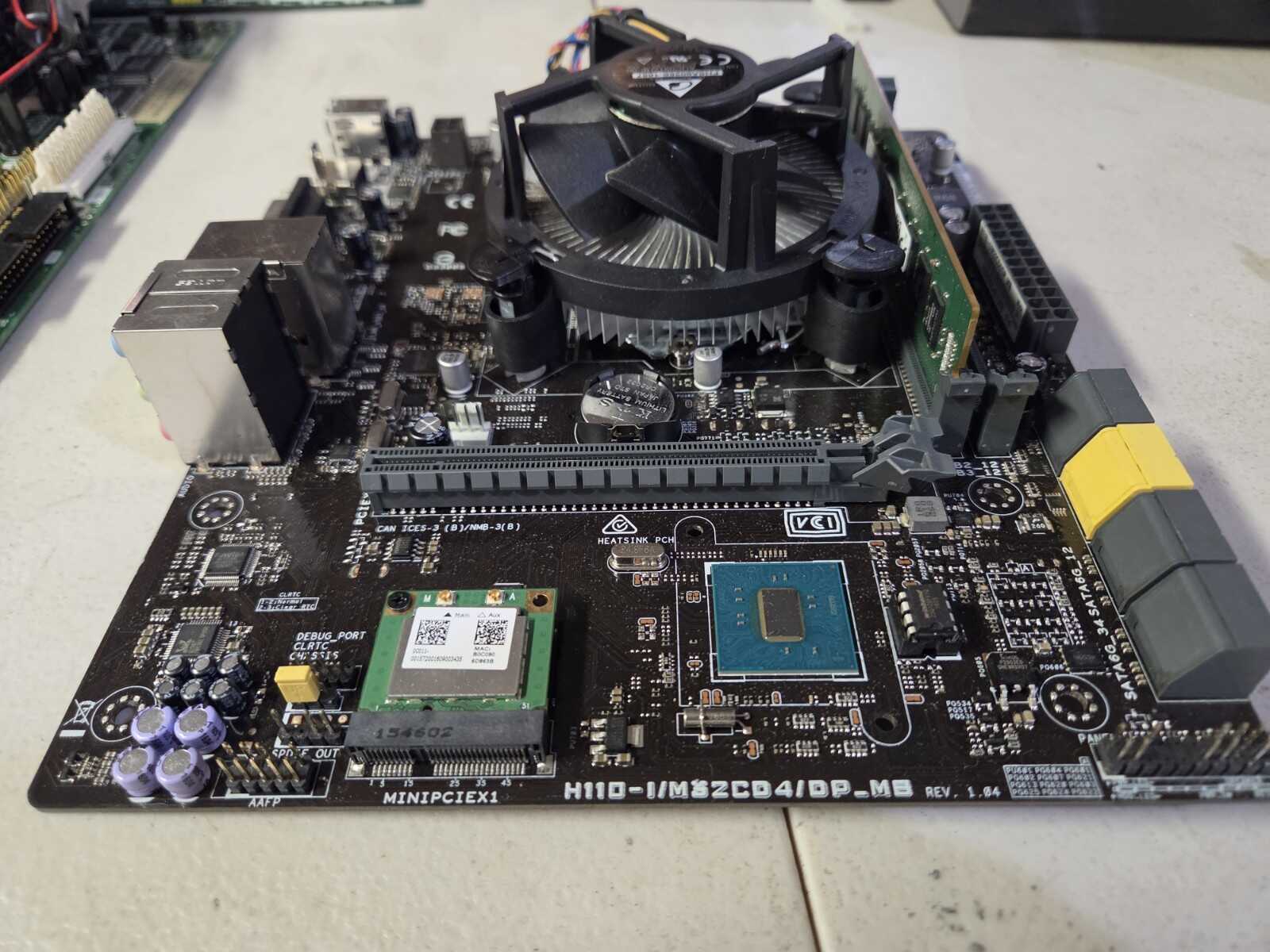

| Motherboard | ASUS H110-I/M32CD4/DP_MB, Rev. 1.04, ASUS 90PA0770 |
| Chipset | Intel H110 |
| Socket | LGA1151 (FCLGA1151) |
| Form factor | micro ATX |
| Memory slots | 2 x DDR4 DIMM (DIMM_A1, DIMM_B1), one populated |
| Expansion | 1 x PCIe 3.0 x16, 1 x mini PCIe half height (populated by the WLAN card) |
| Storage | SATA 6Gb/s ports, silkscreened SATA6G_12 and SATA6G_34 |

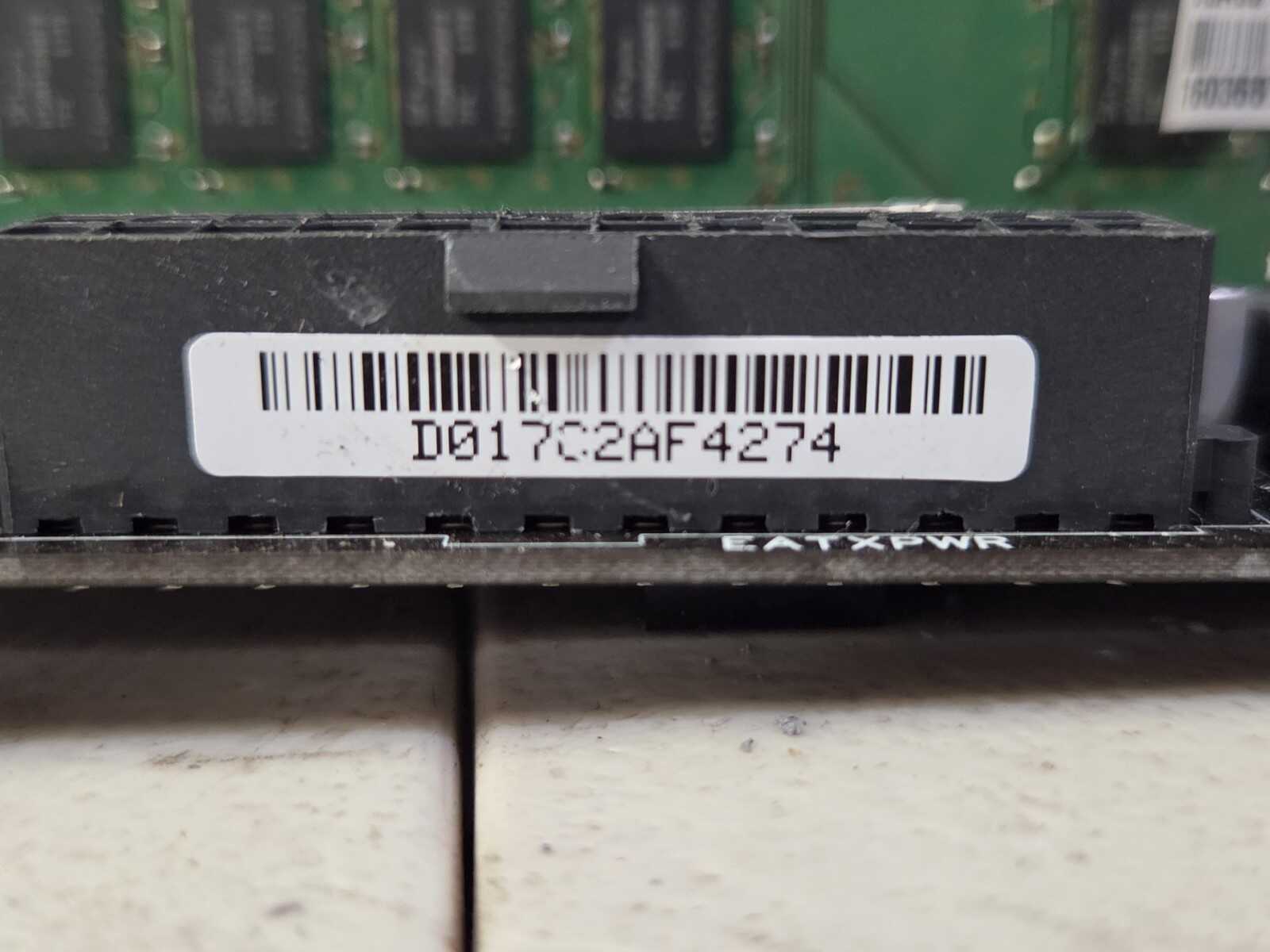

| Power inputs | 24-pin EATXPWR and 4-pin ATX12V |
| Headers | CPU_FAN 4-pin, front panel, front audio AAFP, USB 3.0 front header, S/PDIF out, CLRTC |

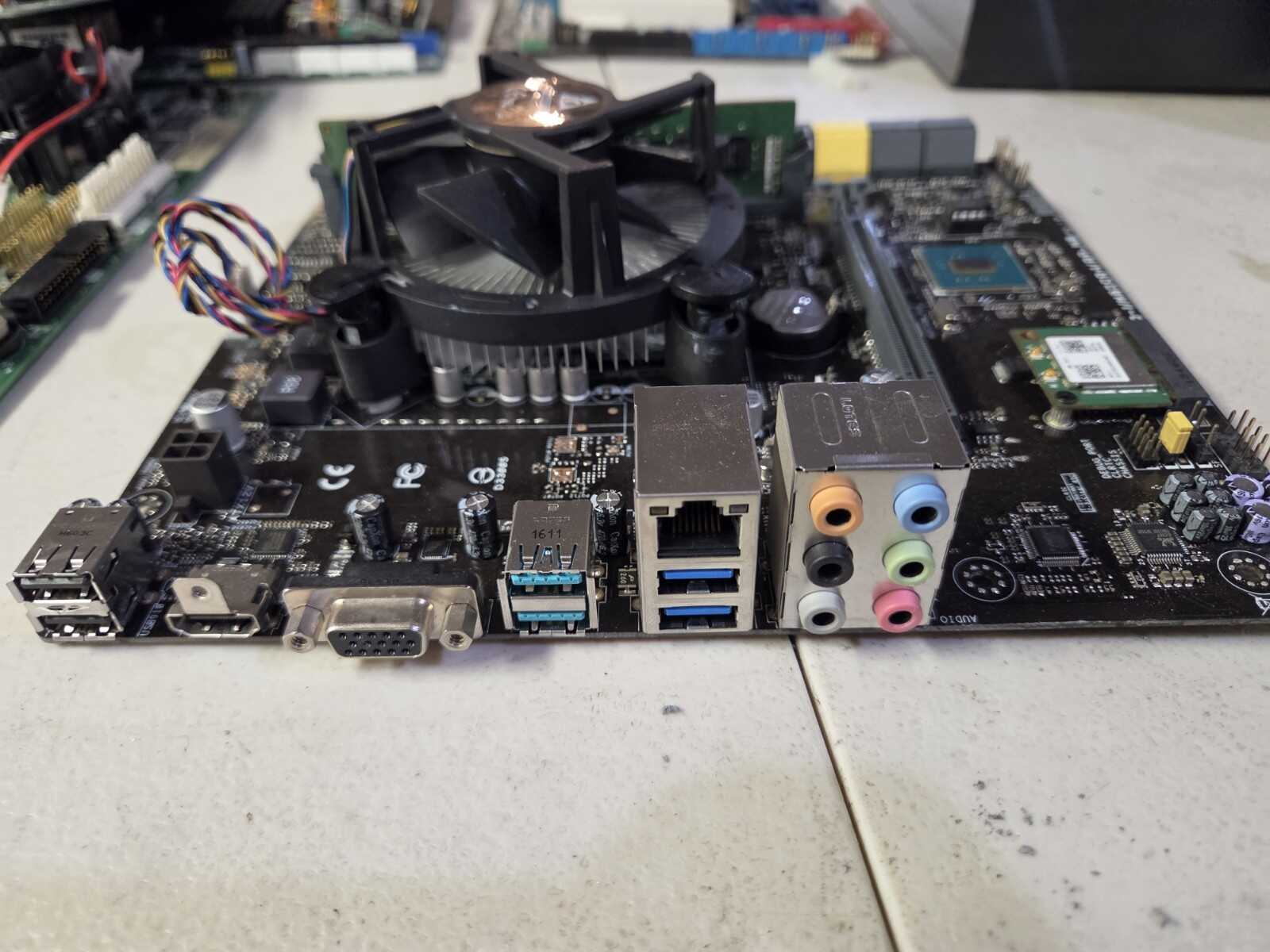

| Rear I/O | 2 x USB 2.0, 4 x USB 3.0, HDMI, VGA D-Sub 15, 1 x RJ-45 LAN, 6 x analog audio jacks |

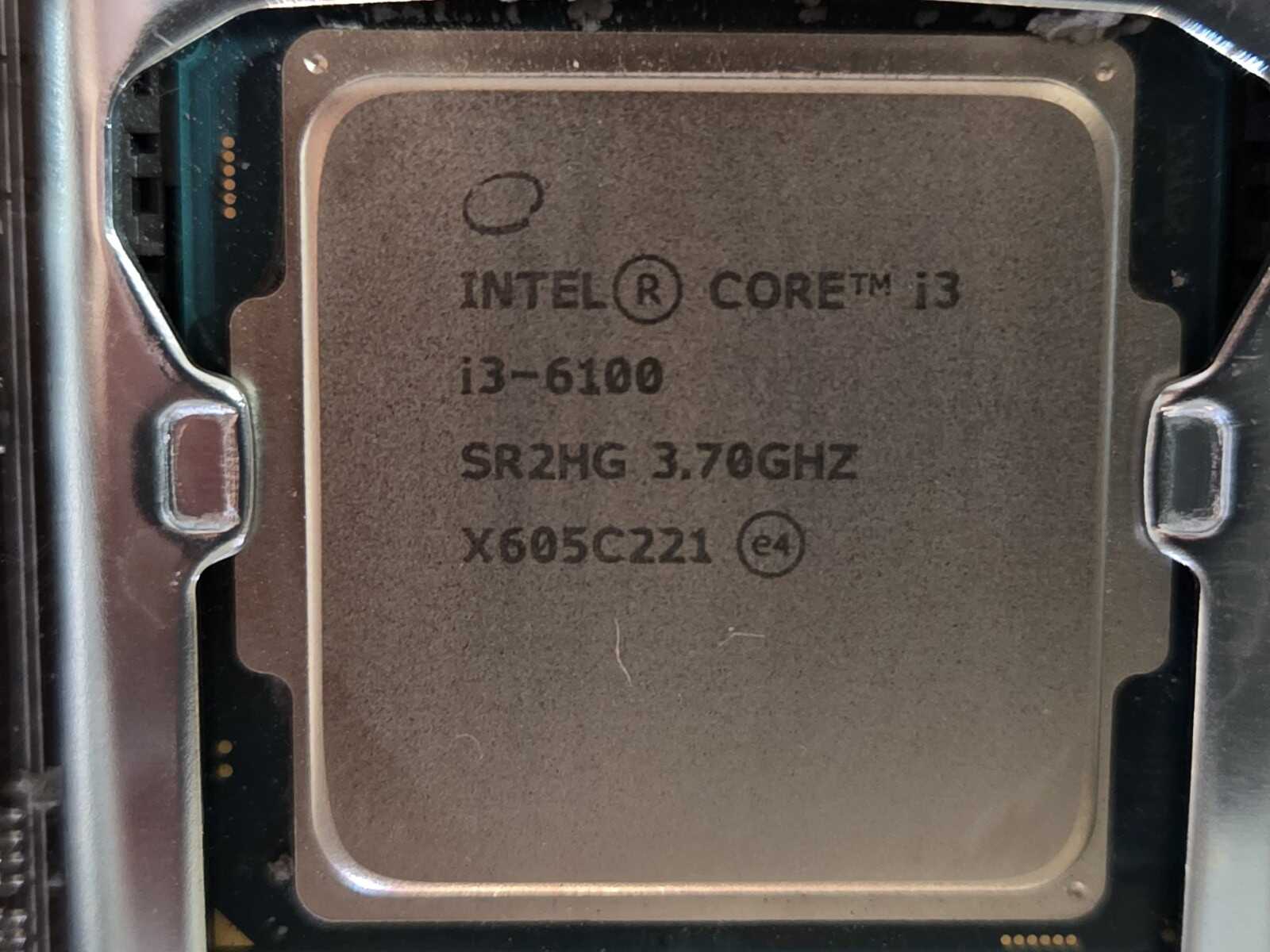

| Processor | Intel Core i3-6100, spec code SR2HG, batch code X605C221 |
| Architecture | 6th generation Skylake, 14 nm, launched Q3 2015 |
| Cores and threads | 2 cores, 4 threads |
| Base frequency | 3.70 GHz |
| Cache | 3 MB Intel Smart Cache |
| TDP | 51 W |
| Integrated graphics | Intel HD Graphics 530 |
| Processor memory support | DDR4-1866/2133, DDR3L-1333/1600 at 1.35 V |

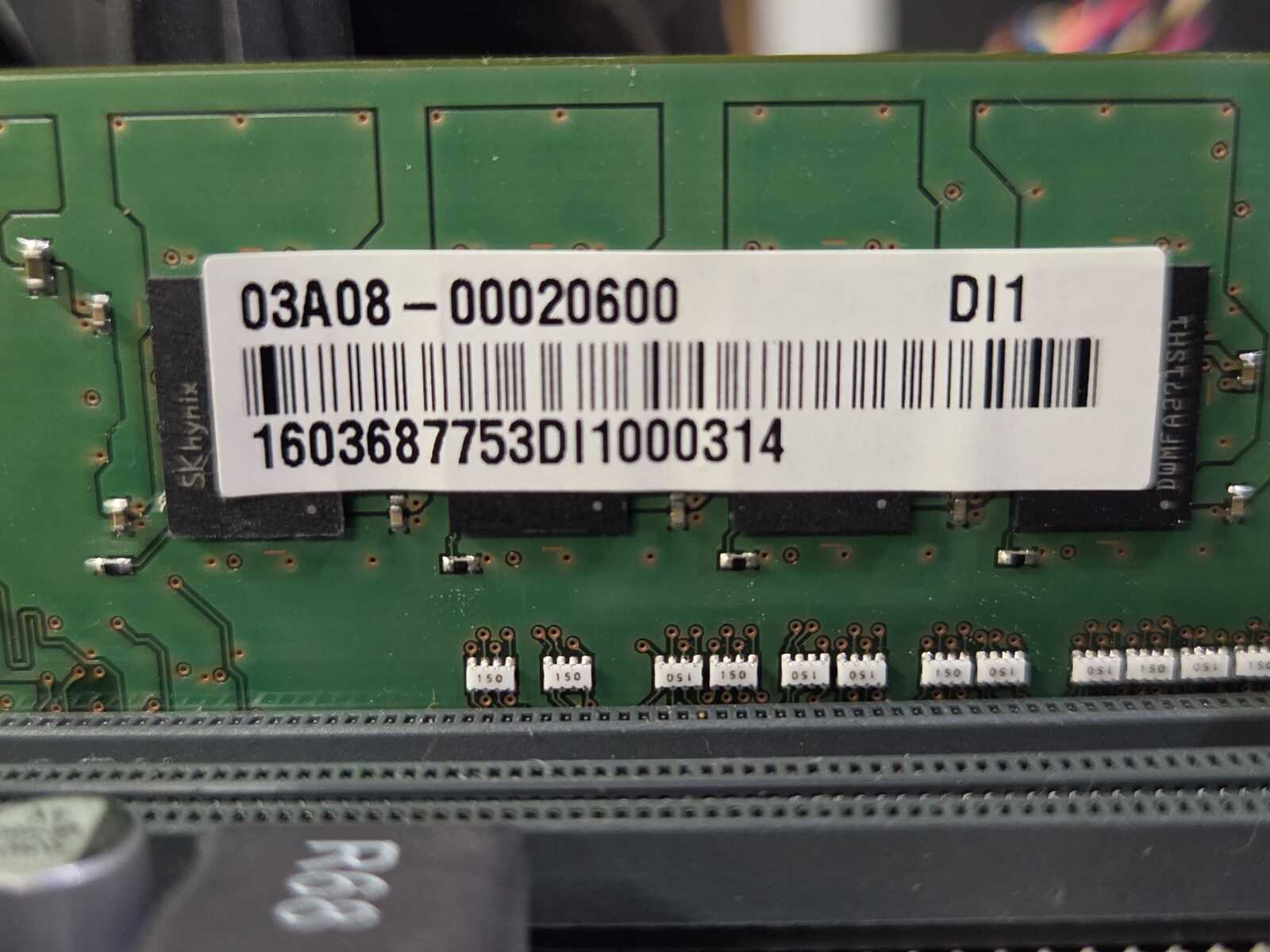

| Memory | 8GB DDR4-2133 PC4-17000, 288-pin non-ECC unbuffered UDIMM, 1.2 V, SK hynix HMA41GU6AFR8N, ASUS part 03A08-00020600 |

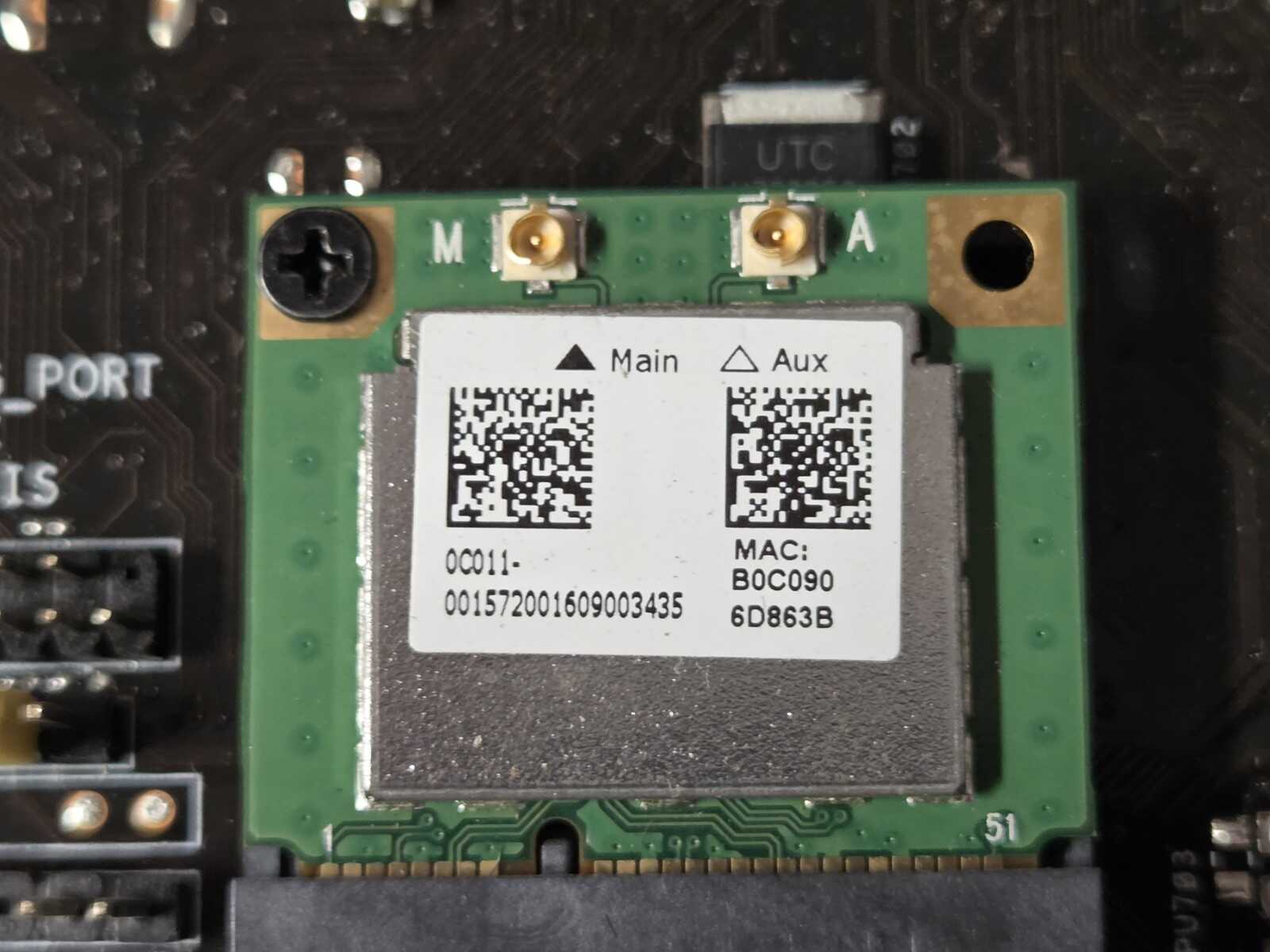

| Wireless | Realtek RTL8821AE, 802.11a/b/g/n/ac plus Bluetooth 4.0, PCIe half mini card, ASUS part 0C011-00157200 |

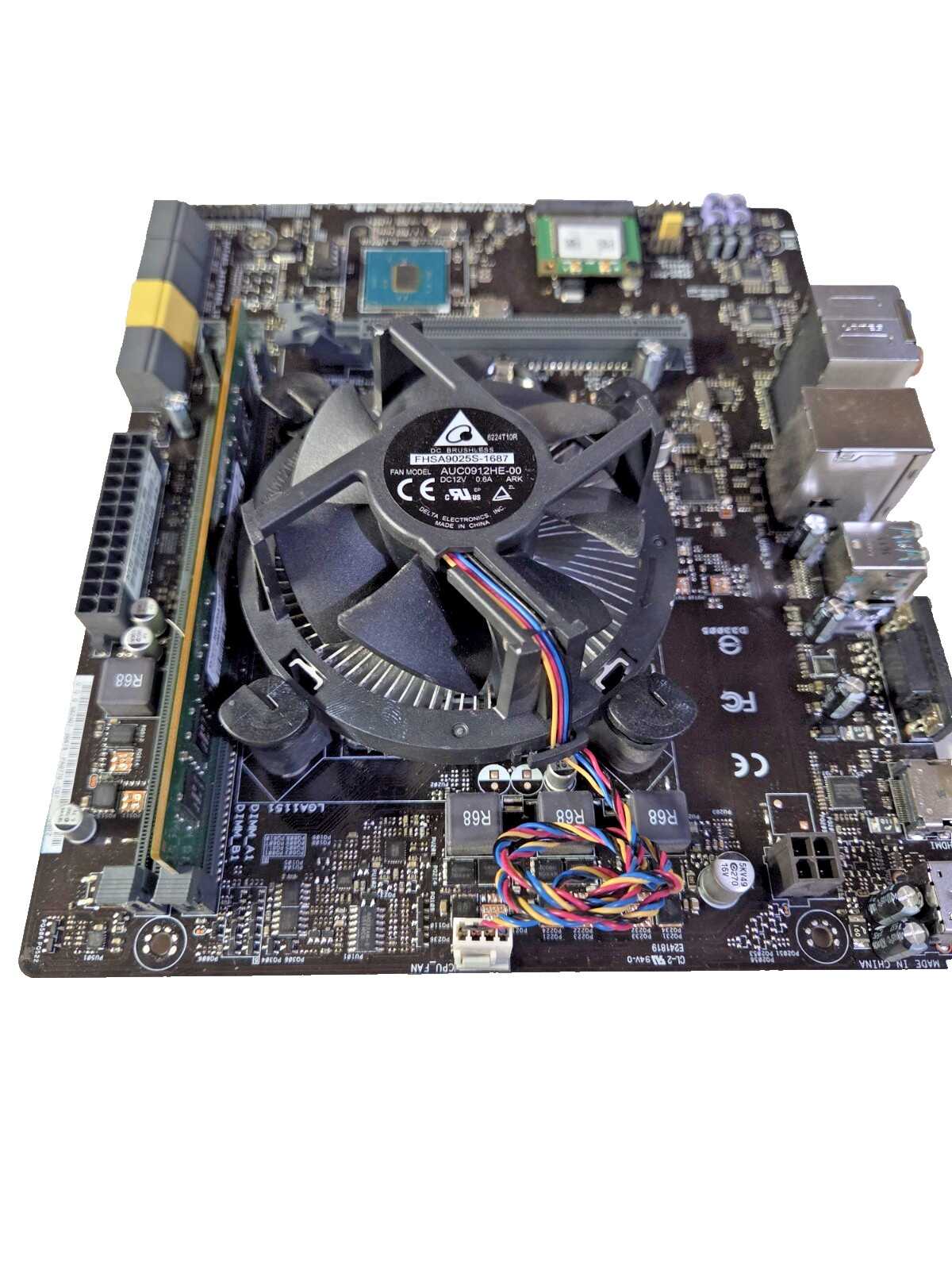

| Cooler | Delta Electronics AUC0912HE-00, 92 mm 4-wire PWM fan, aluminum fin stack with copper core, push-pin mount |

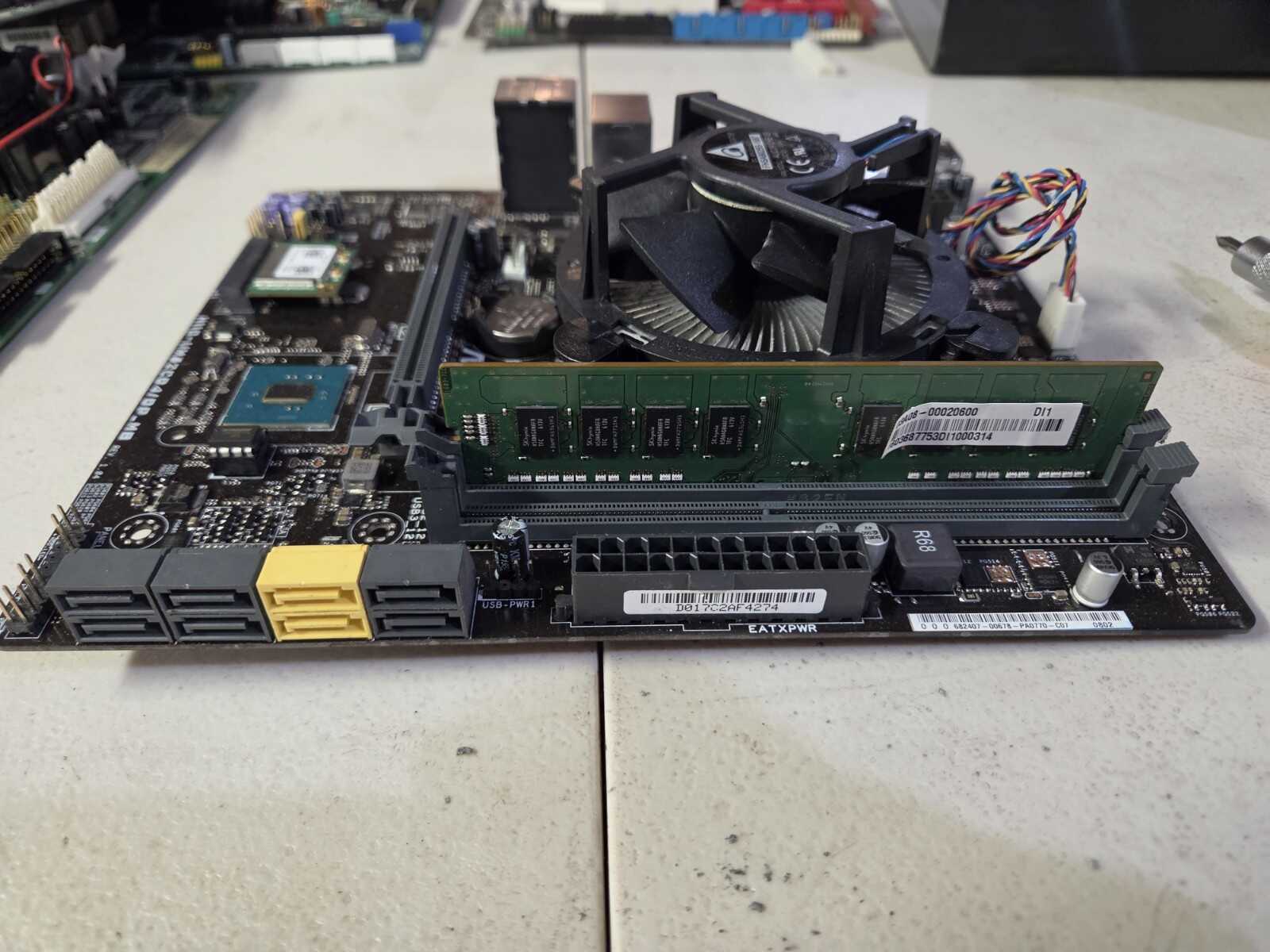

ASUS H110-I/M32CD4/DP_MB Rev. 1.04 motherboard
Intel Core i3-6100 SR2HG processor, installed in the socket
8GB DDR4-2133 DIMM, installed
ASUS OEM CPU cooler with Delta 92 mm PWM fan, installed
Realtek RTL8821AE 802.11ac plus Bluetooth 4.0 mini PCIe card, installed
CR2032 CMOS coin cell
Not included:
I/O shield
WiFi antennas or antenna leads
PCH heatsink
Second DDR4 DIMM
SATA cables, power supply, storage drives, graphics card, case
Drivers media, manual, retail packaging
Operating system or license
Fits any case with micro ATX standoffs and a rear panel opening. Requires an ATX power supply providing both a 24-pin main connector and a 4-pin ATX12V connector. Video output is through the processor graphics using the rear HDMI or VGA port, or through a discrete card in the PCIe 3.0 x16 slot. Memory is DDR4 UDIMM only; DDR3 and DDR3L modules do not fit this board. The WLAN card requires antennas, which are not supplied.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships in a 20 x 20 x 8 in box at approximately 6 lb with packing. Board is packed in an antistatic bag and suspended in foam or bubble; the cooler stays fitted to the board and is supported so it cannot load the socket in transit.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 4.0000 lbs |
|---|---|
| Dimensions | 14 × 14 × 6 in |
| SOCKET TYPE | LGA 1151 |
| COMPATIBLE CPU BRAND | Intel |
| NUMBER OF MEMORY SLOTS | 2 |
| INPUT/OUTPUT PORTS | Ethernet (RJ-45) |
| NUMBER OF CPU CORES | 2 |
| MPN | |
| MOST SUITABLE FOR | Casual Computing |
| MEMORY TYPE | DDR4 SDRAM |
| MOTHERBOARD BRAND | ASUS |
| FORM FACTOR | MicroATX |
| UNIT TYPE | Unit |
| MODEL | H110-I/M32CD4/DP_MB Rev. 1.04 with Intel |
| FEATURES | On-Board Audio |
| Condition | |
| Condition Description |
