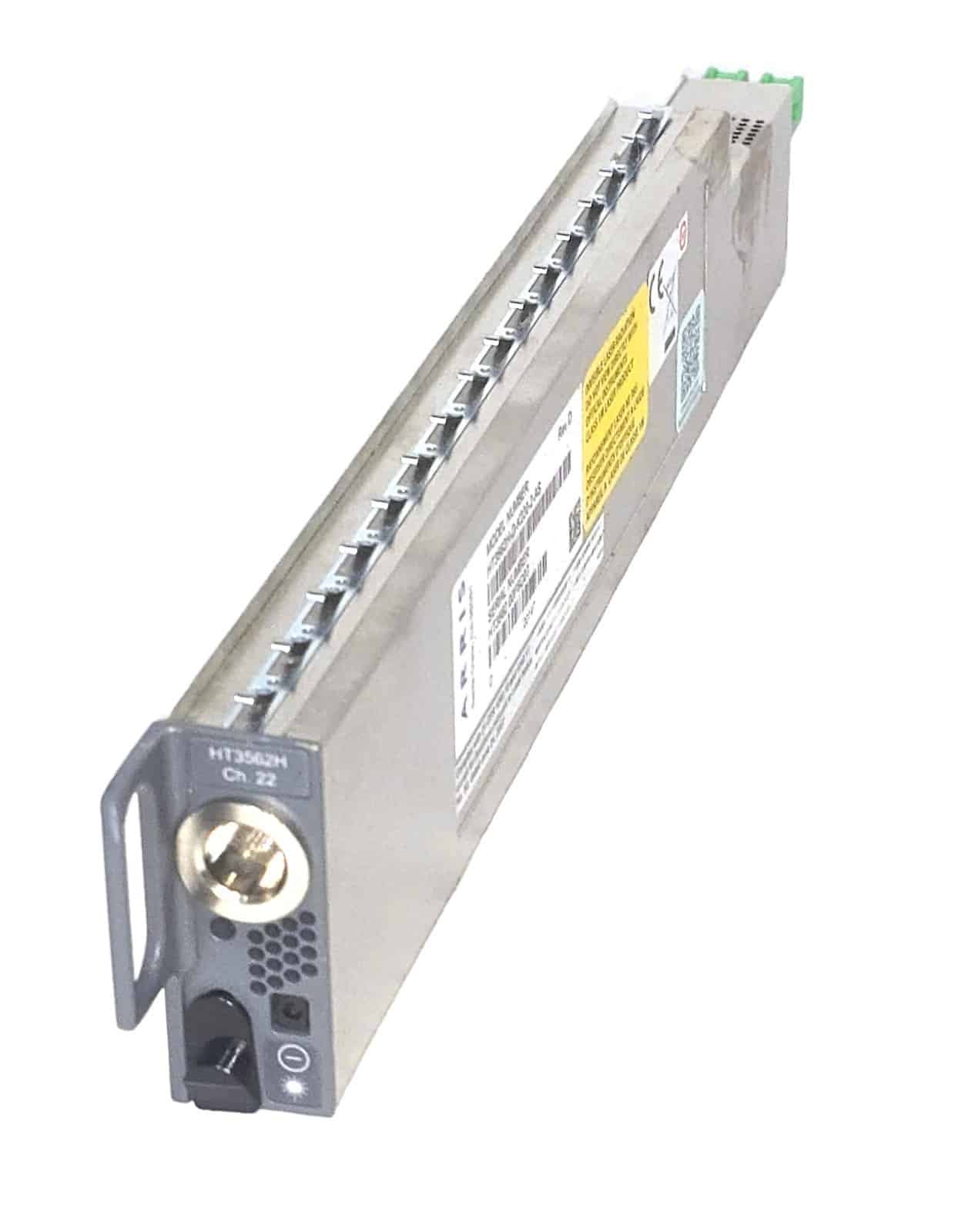

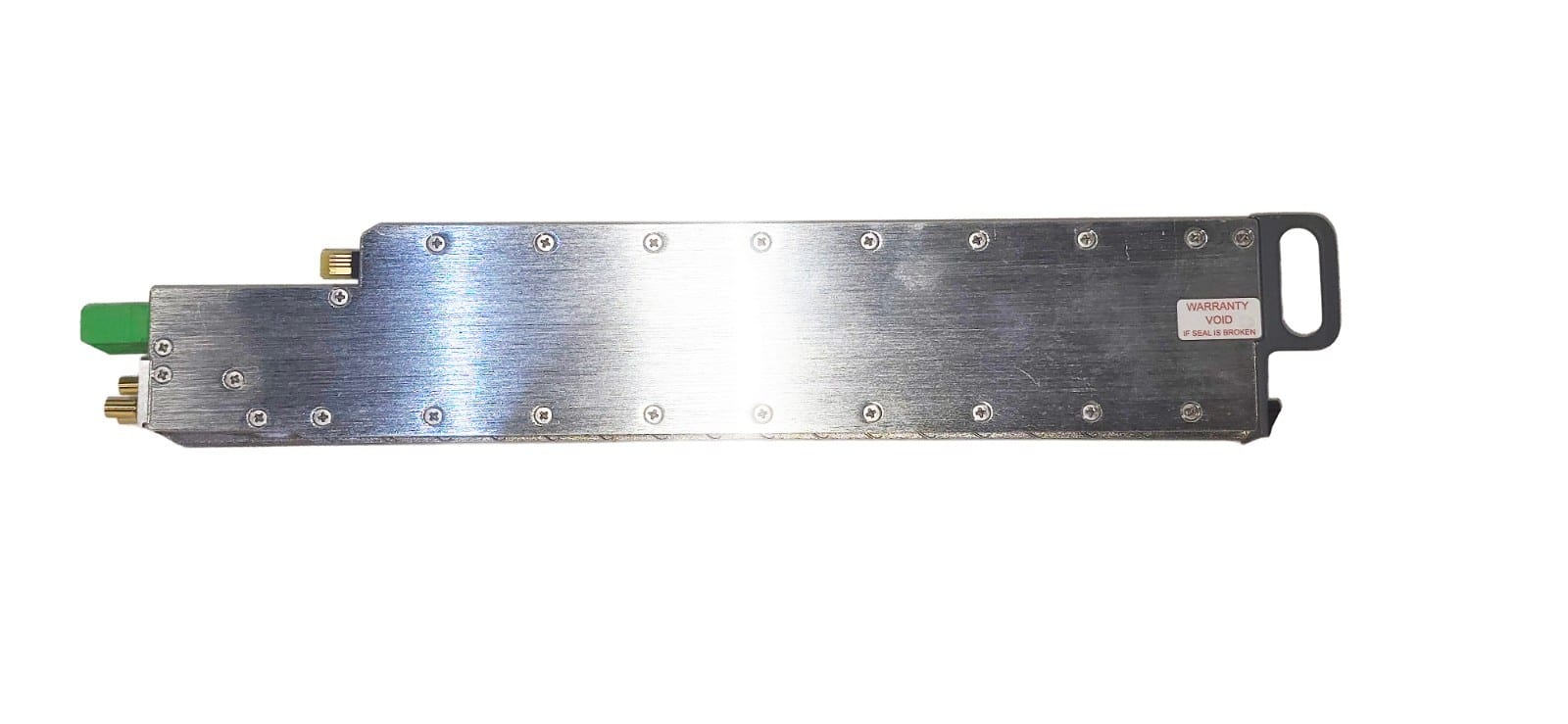

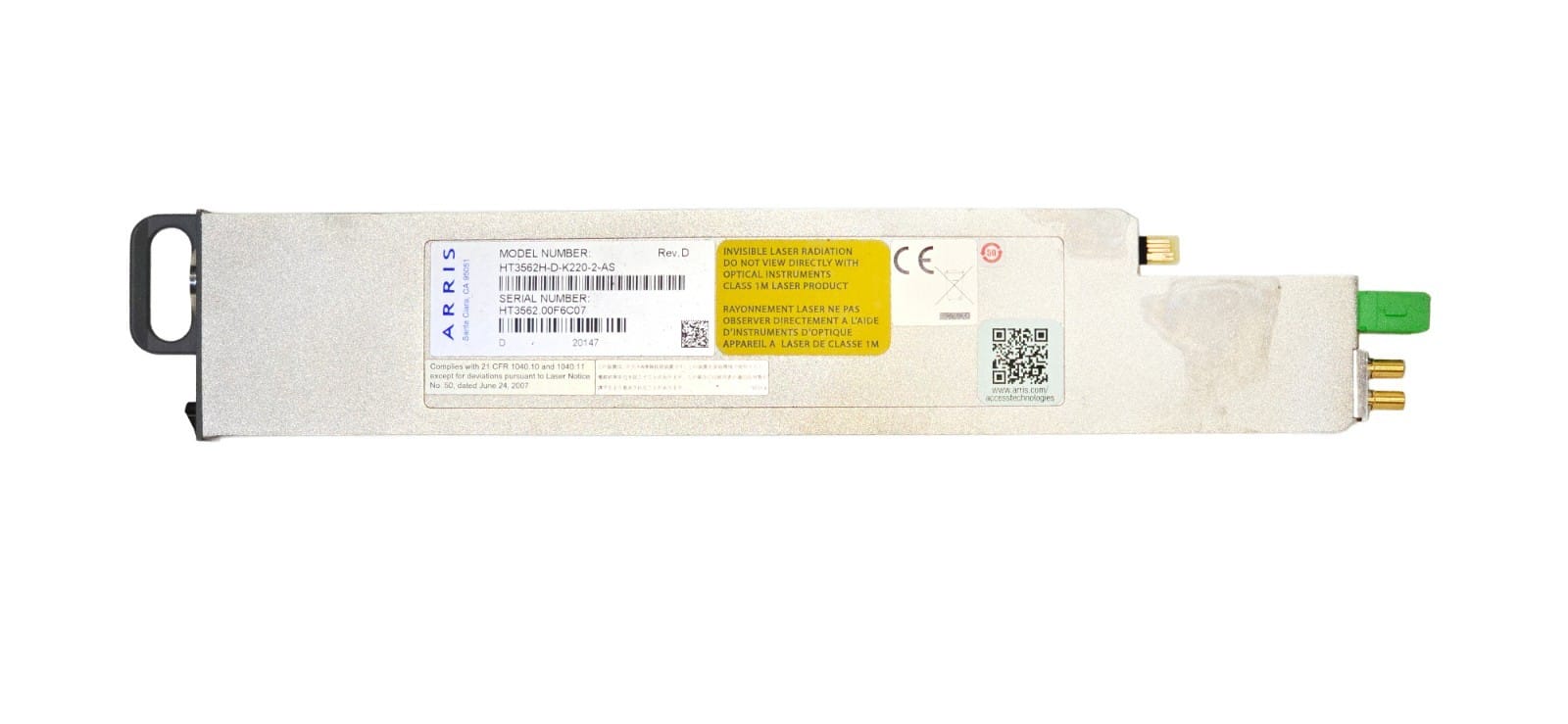

Arris HT3562H-D-K220-2-AS Ch. 22 Double‐Density Full Spectrum DWDM-Transmitter

The ARRIS HT3562H Series Double‐Density Full Spectrum DWDM-Transmitter System provides high performance and a high rack density forward path transmission solution for Cable TV service providers.

The high density packaging design allows up to 4 HT3562H series high performance transmitters plus a CC3008 Communications Control Module to be stacked vertically and contained by the CA3008 module carrier, requiring only two chassis slots of a 3 RU chassis. The compact solution supports up to 24 transmitters in a CH3000 chassis including redundant power supplies.

When installed in the chassis, the transmitters interface to a “zero‐slot” back plate, providing support for up to four HT3562H series transmitters with no additional rack space required for optical multiplexing.

Features:

• DWDM transmitter: 16 wavelengths on the ITU grid
• Manual or Automatic Gain Control (AGC) modes
• Optimized for full spectrum loading
• Analog loading up to 258 MHz plus QAM loading or all QAM loading
• Low power consumption
• High rack density: 24 transmitters per 3 RU chassis, with redundant power supplies and optical multiplexing
• Optional RF input equalization controls
• Hot plug-in / out, individually replaceable
• Front access -20 dB input test point
• Front panel laser On / Off interlock switch
• Local and remote status monitoring
