ABB SACE Tmax T3N 225 molded case circuit breaker, 3 pole, 225 A frame, fixed
thermal magnetic trip unit rated In=200 A. The unit carries a rotary handle
operating mechanism, supplied complete with the operator base, the steel extension
shaft and the door mount rotary handle with lock off provision. An auxiliary contact
(SY+1Q) is factory fitted and wired out to a connector. The plate carries full DC
ratings, 250 V DC on two poles and 251 to 500 V DC on three poles in an ungrounded
system, alongside the AC ratings. Removed from a Benning inverter system.
Sold individually; two units are available.
60 Day Money Back Guarantee.
- Rotary handle operating mechanism installed, complete with shaft and door handle.
- Sold separately this accessory is a significant fraction of the breaker value.
- Auxiliary contact (SY+1Q) installed and wired out to a connector.
- Full DC rating on the plate, 250 V DC 2 pole and 251 to 500 V DC 3 pole ungrounded.
- Directly relevant to solar, battery, UPS and inverter buyers, which is the market.
- That pays a premium over the plain AC breaker.
- 50 kA at 240 V, 25 kA at 480 V interrupting.
- Pulled from an unused system, so run hours should be near zero.
- Qty 2 available, matched pair from the same system for buyers needing two.
- 2015 case date code, not an early production unit.
| Parameter | Value |
| MPN | SACE T3N 225 |
| Brand | ABB, made in Italy by ABB SACE |
| Type | T3N 225, Tmax T generation molded case circuit breaker |
| Poles | 3 |
| Frame size | 225 A |
| Rated current In | 200 A, fixed thermal magnetic, long time and instantaneous |
| AC rating | 480 to 600Y/347 V, 50/60 Hz |

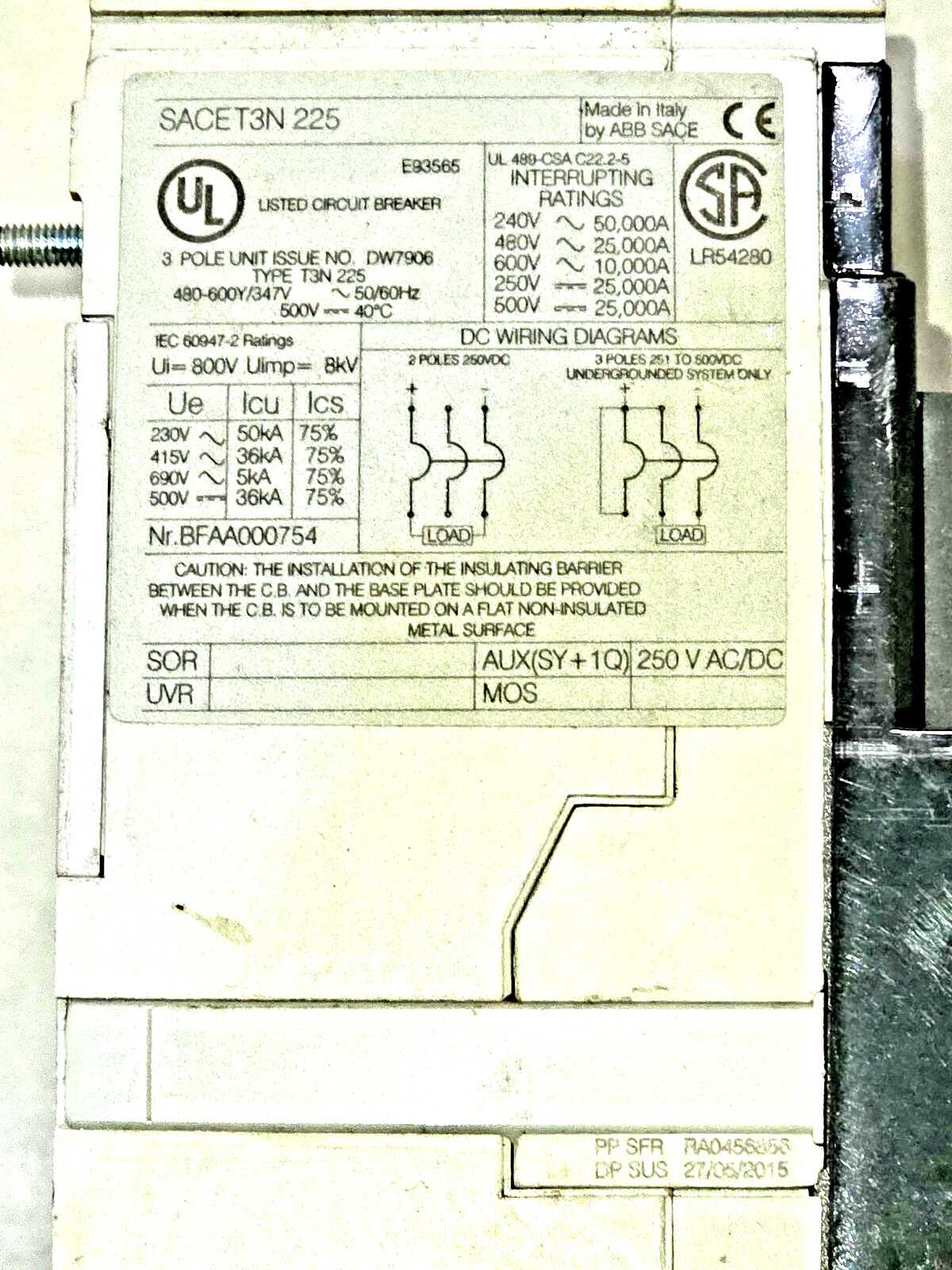

| DC rating | 500 V DC at 40 C. 250 V DC on 2 poles; 251 to 500 V DC on 3 poles, ungrounded system only |
| Interrupting rating | 50 kA at 240 V AC, 25 kA at 480 V AC, 10 kA at 600Y/347 V AC, 25 kA at 250 V DC, 25 kA at 500 V DC |
| IEC 60947-2 | Ui 800 V, Uimp 8 kV. Icu 50 kA at 230 V, 36 kA at 415 V, 5 kA at 690 V, 36 kA at 500 V DC. Ics 75 percent of Icu. |
| Approvals | UL 489 file E93565, CSA C22.2 No. 5 file LR54280, IEC 60947-2 |
| 3 pole unit issue number | DW7906 |
| Plate Nr. on the photographed unit | BFAA000754 |
| Case molding date code | 27/05/2015 |
| Fitted accessories per plate | AUX (SY+1Q) 250 V AC/DC. SOR, UVR and MOS not fitted. |
| Breaker body dimensions | 1 x 5.9 x 2.8 in, 105 x 150 x 70 mm (ABB data sheet) |
| Breaker body weight | 5 lb, 1.6 kg (ABB data sheet) |
| Terminal wire range for this catalog build | 14 AWG to 300 kcmil, copper or aluminum |
| Current ABB catalog equivalent | T3N200TW, superseded by SACE Tmax XT3N 225 |

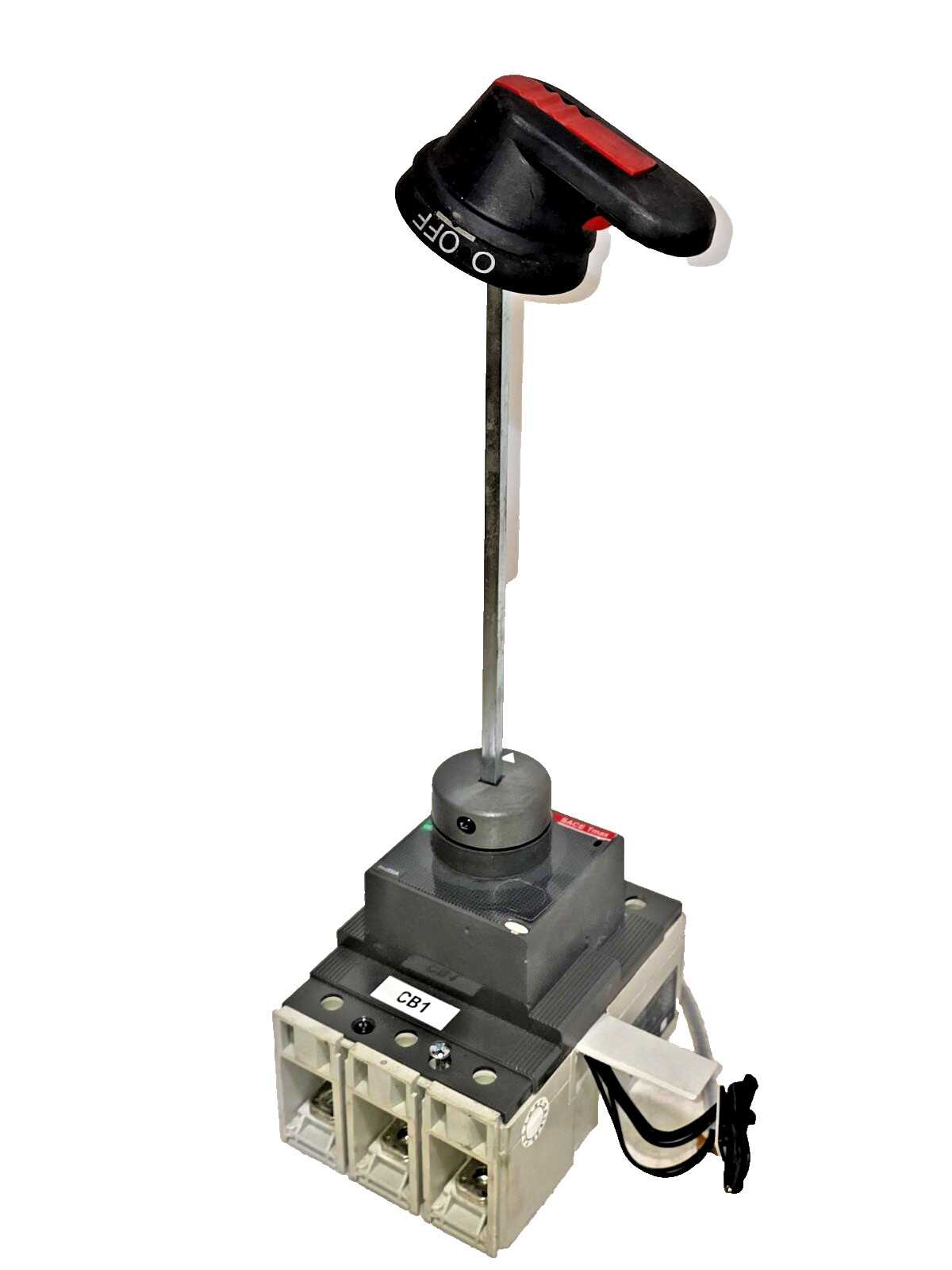

ABB SACE T3N 225 circuit breaker, 3 pole, In=200 A, one unit

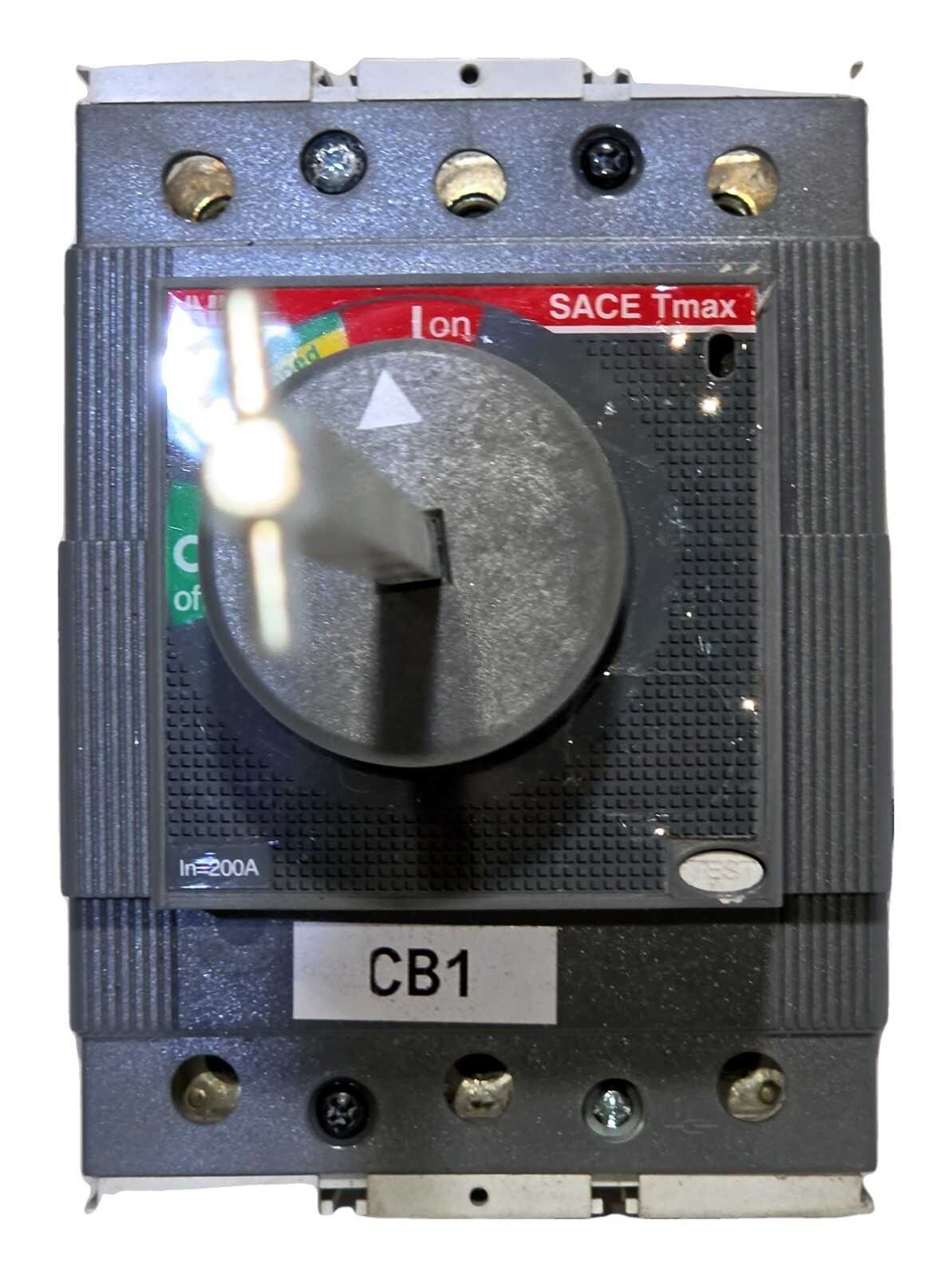

Rotary handle operating mechanism: operator base, steel extension shaft, door mount
rotary handle with lock off provision
Auxiliary contact (SY+1Q) fitted, with its flying leads and connector
Terminal shrouds and phase barriers as pictured
Not included:
Enclosure, panel, door plate, mounting base or hardware
Line and load conductors
Shunt trip (SOR), undervoltage release (UVR) and motor operator (MOS): not fitted
Original ABB packaging or documentation
Fits ABB Tmax T3 frame applications. Trip rating is fixed at 200 A and cannot be
changed in the field. The extension shaft is cut to the depth of the original panel,
so the door mount handle fits enclosure depths at or under that length; the shaft can
be shortened but not lengthened. The auxiliary contact voltage class is set to the
25 to 250 V band on the side label. For DC service at 251 to 500 V DC all three
poles must be placed in series and the system must be ungrounded, per the plate
wiring diagram. When mounting on a flat non insulated metal surface, the plate
requires an insulating barrier between the breaker and the base plate.
