Description
|
Zombie Components LLC
|
Sylmar, California |

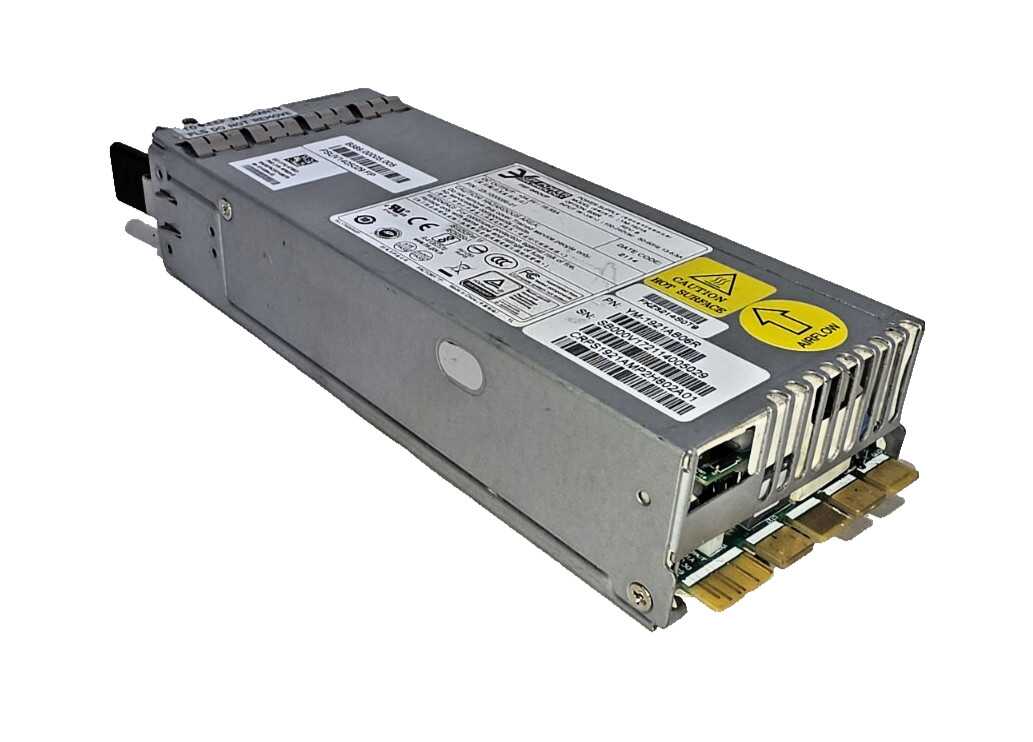

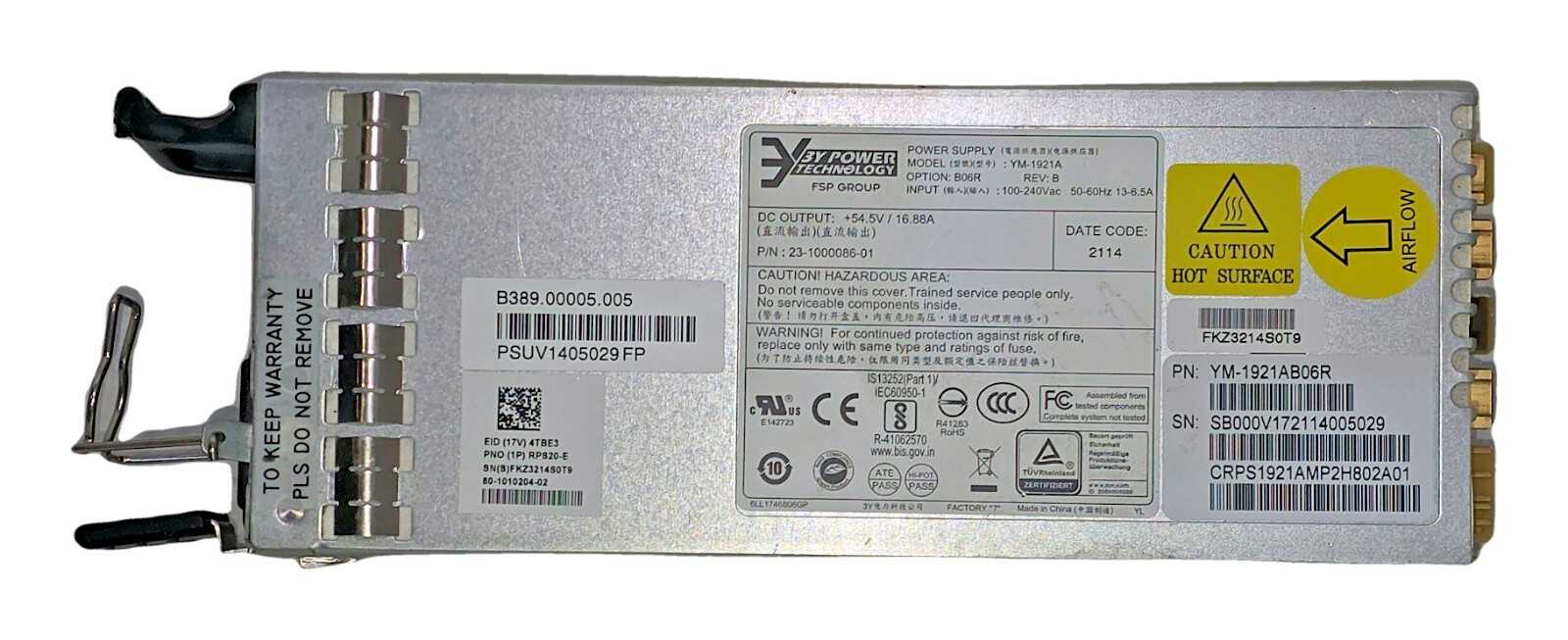

3Y Power Technology (FSP Group) YM-1921AB06R hot swap power supply module. 100 to 240
VAC in, plus 54.5 V DC out at 16.88 A, 920 W. CRPS 1U form factor with a gold card edge
output connector. The same module is the Ruckus and Brocade RPS20-E, the 920 W AC PoE
supply for the ICX 7150 Z-Series, and is also used as the Edgecore AS4610-54P supply.
The 54.5 V rail is a PoE rail, not a 12 V server rail. Pulled from working equipment.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | YM-1921AB06R |
| Brand | 3Y Power Technology (FSP Group) |
| Model | YM-1921A, option B06R, rev B |

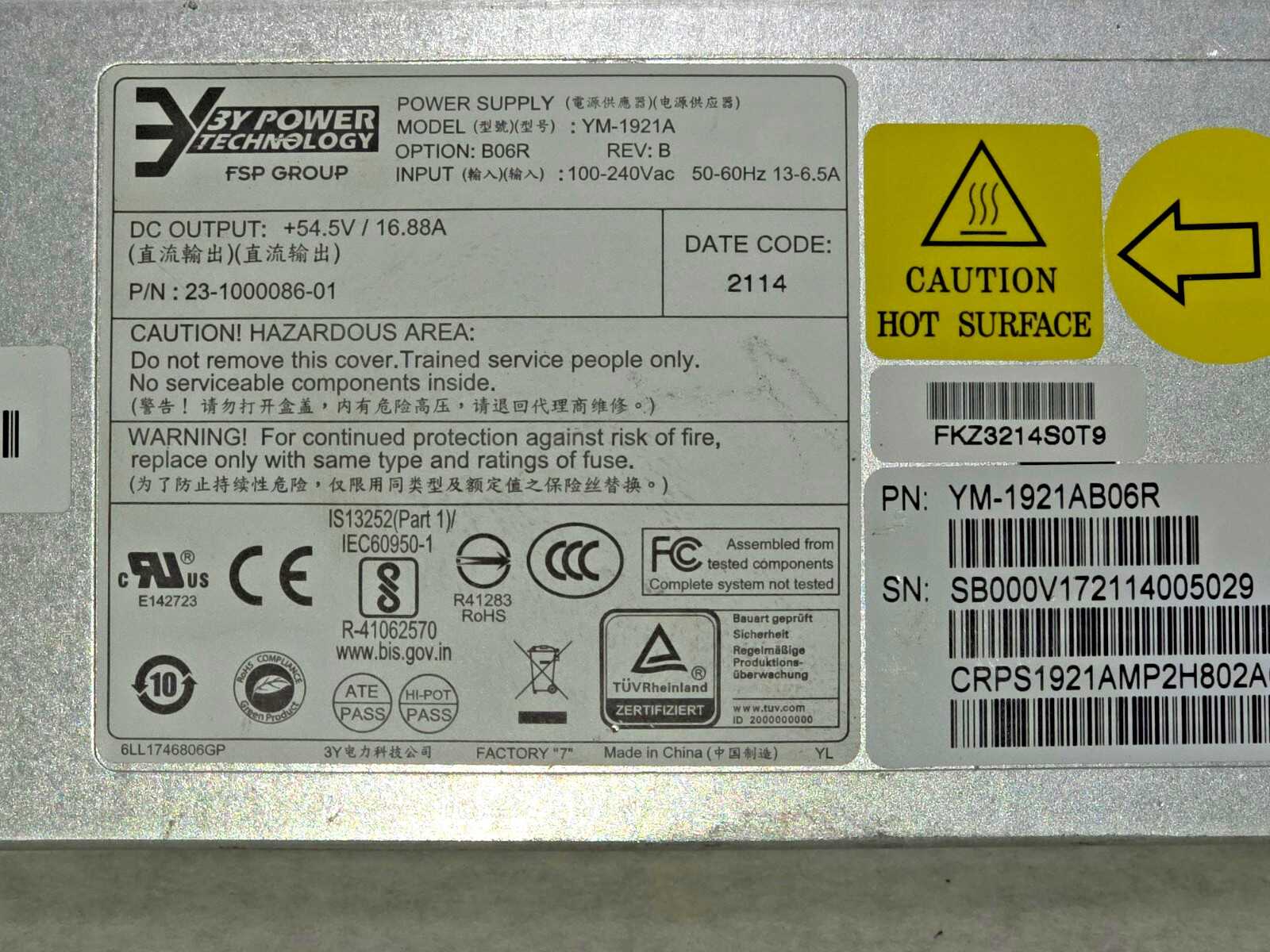

| OEM part marking | RPS20-E, 80-1010204-02 |
| 3Y internal part number | 23-1000086-01 |
| CRPS code | CRPS1921AMP2H802A01 |
| Input | 100 to 240 VAC, 50 to 60 Hz, 13 to 6.5 A |
| Output | plus 54.5 V DC, 16.88 A, 920 W |
| Form factor | CRPS 1U hot swap module, 73.5 x 40 x 185 mm (2.9 x 1.6 x 7.3 in) per the CRPS standard |
| Output connector | gold plated card edge |

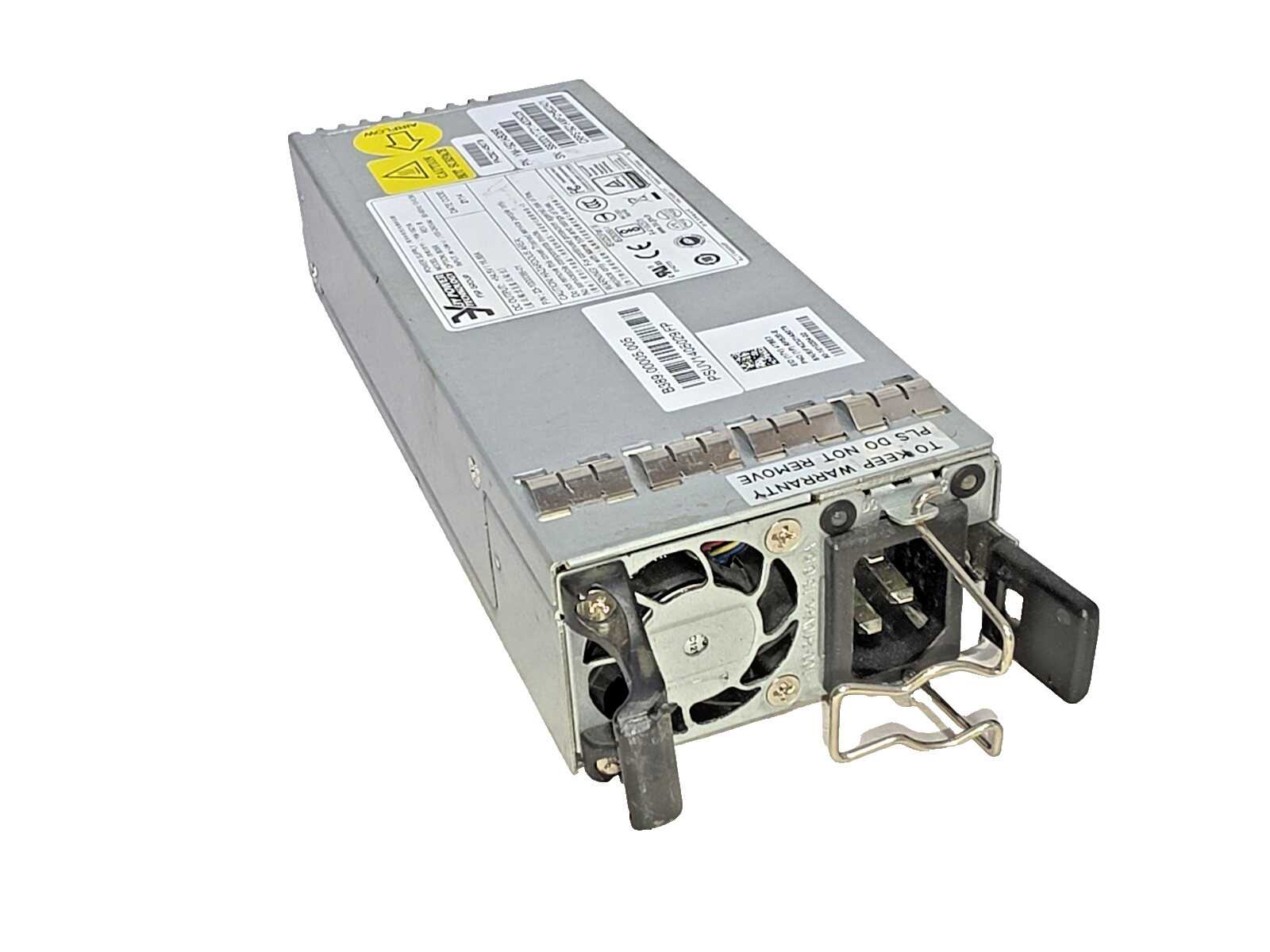

| AC inlet | IEC 60320 appliance inlet with wire cord retainer |
| Cooling | internal fan. The nameplate airflow arrow points toward the AC inlet face. |
| Compliance | UL E142723, CE, CCC, TUV Rheinland, RoHS, IEC 60950-1, IS13252 Part 1, BIS R-41062570 |
| Date code | 2114 |
| Origin | Made in China |
One 3Y Power YM-1921AB06R 920 W power supply module.
Not included:
AC power cord.
Switch, chassis, blanking panel or filler.
Mounting rails or hardware.
Documentation, software or license.
Ruckus and Brocade ICX 7150-48ZP Z-Series switches as the RPS20-E, up to two per switch
for redundancy or an expanded PoE budget. Edgecore AS4610-54P. Other equipment that
accepts a CRPS 1U module on a 54.5 V rail. This is the front to back airflow variant.
Confirm your chassis takes a 54.5 V CRPS module and that the airflow direction matches
your installation before ordering. The module needs a CRPS backplane to start and is not
a standalone bench supply. Supply your own AC cord to match the inlet.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships double boxed from Sylmar, California in a 12 x 7 x 6 in box at approximately 3 lb
gross. Multiple units combine into one box.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 3.0000 lbs |
|---|---|
| Dimensions | 12 × 7 × 6 in |
| Brand | |
| TYPE | Power Module |
| Color | Silver |
| MODEL | YM-1921A |
| MPN | |
| Condition | |
| Condition Description |
