TECO-Westinghouse DHP0154 15HP 254T ODP Motor 230/460V 1770RPM

TECO-Westinghouse DHP0154 15HP 254T ODP Motor 230/460V 1770RPM

Name: TECO-Westinghouse DHP0154 15HP 254T ODP Motor 230/460V 1770RPM
SKU: 127074217638_30FF
Availability: InStock

Original price was: £184.79.Current price is: £147.83.

New – Open box TECO-Westinghouse DHP0154 15HP 254T ODP Motor 230/460V 1770RPM 60 DAY MONEY BACK GUARANTEE

1 in stock

SKU: 127074217638_30FF Category: General Purpose Motors

Description

ZOMBIE COMPONENTS

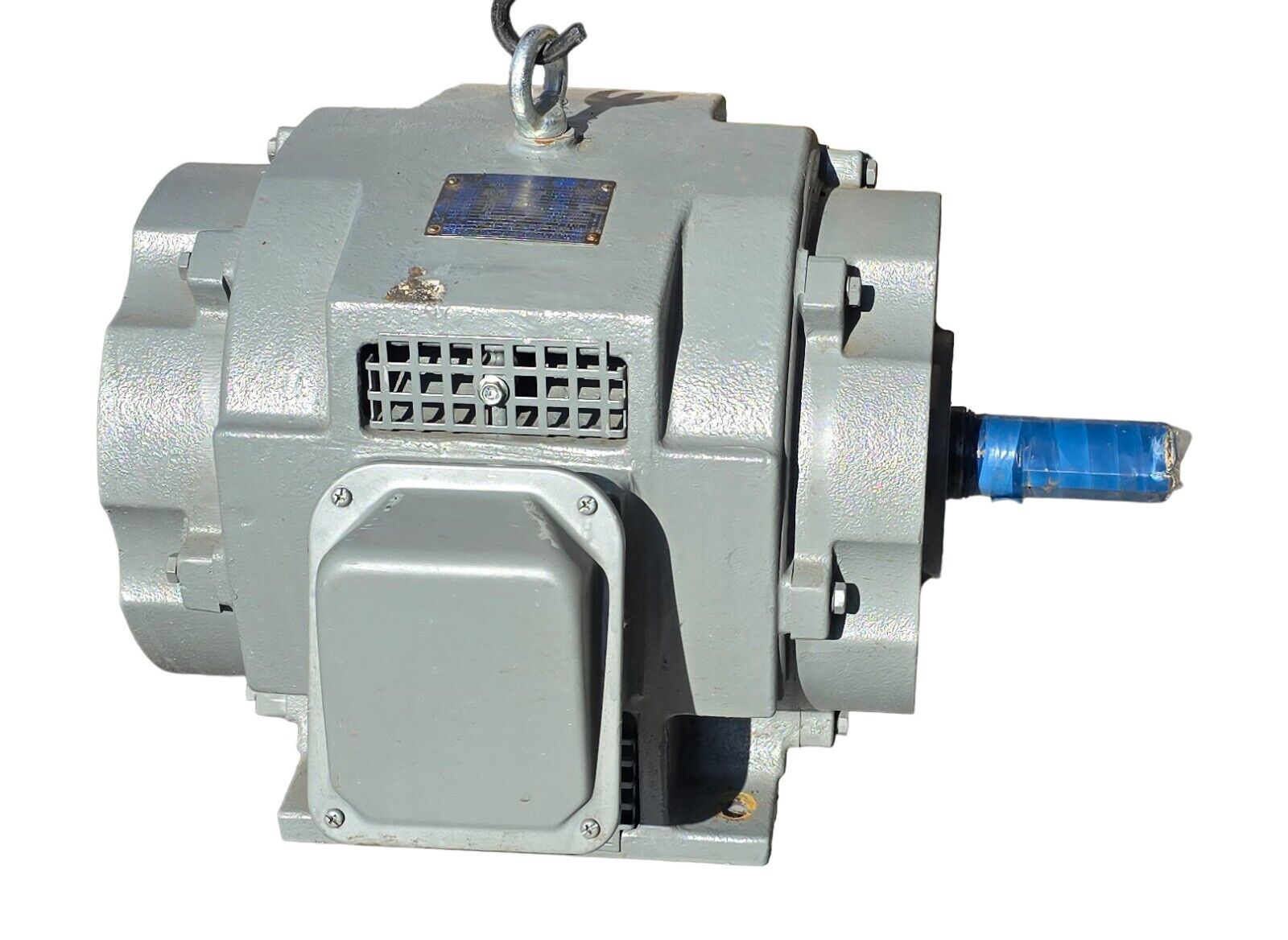

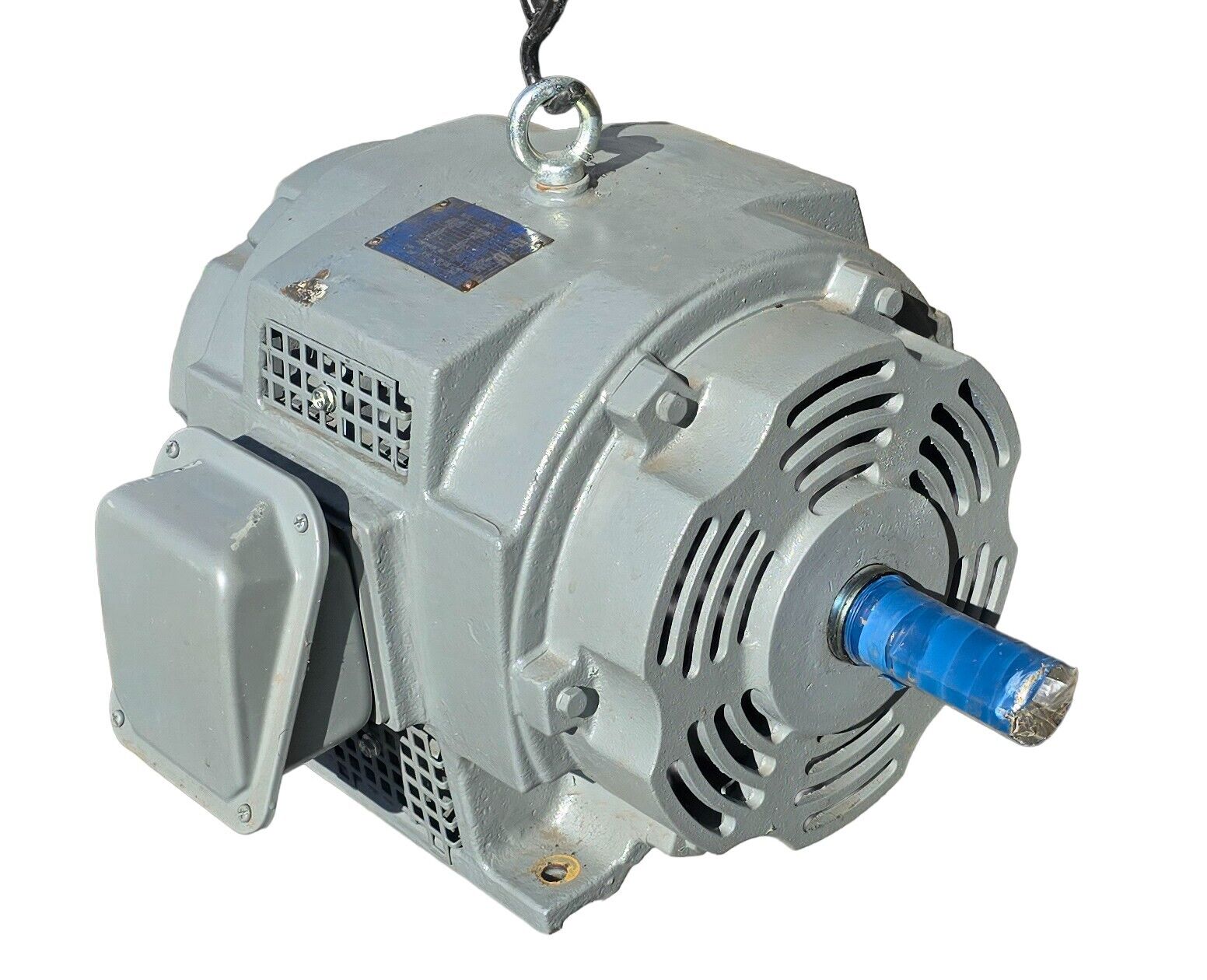

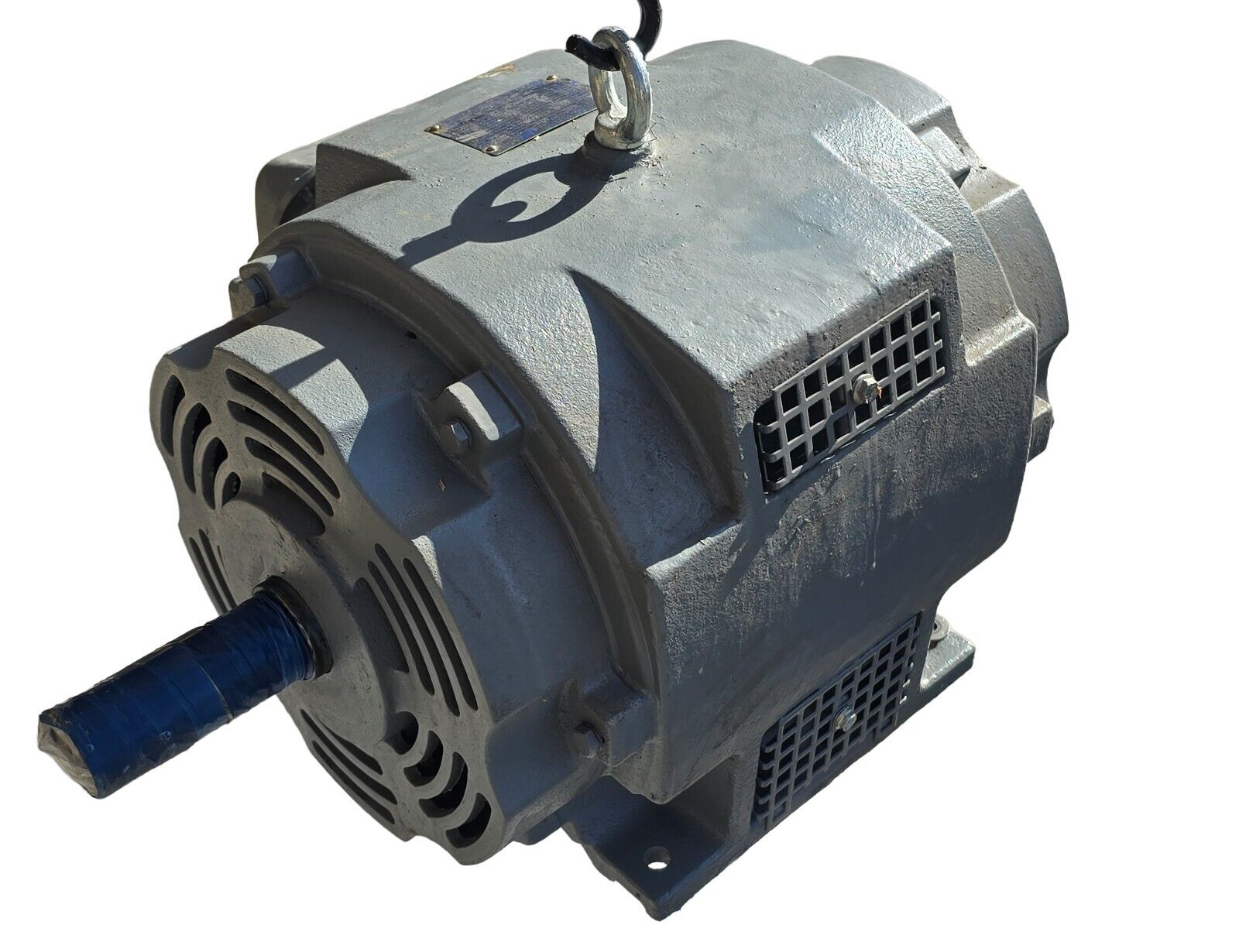

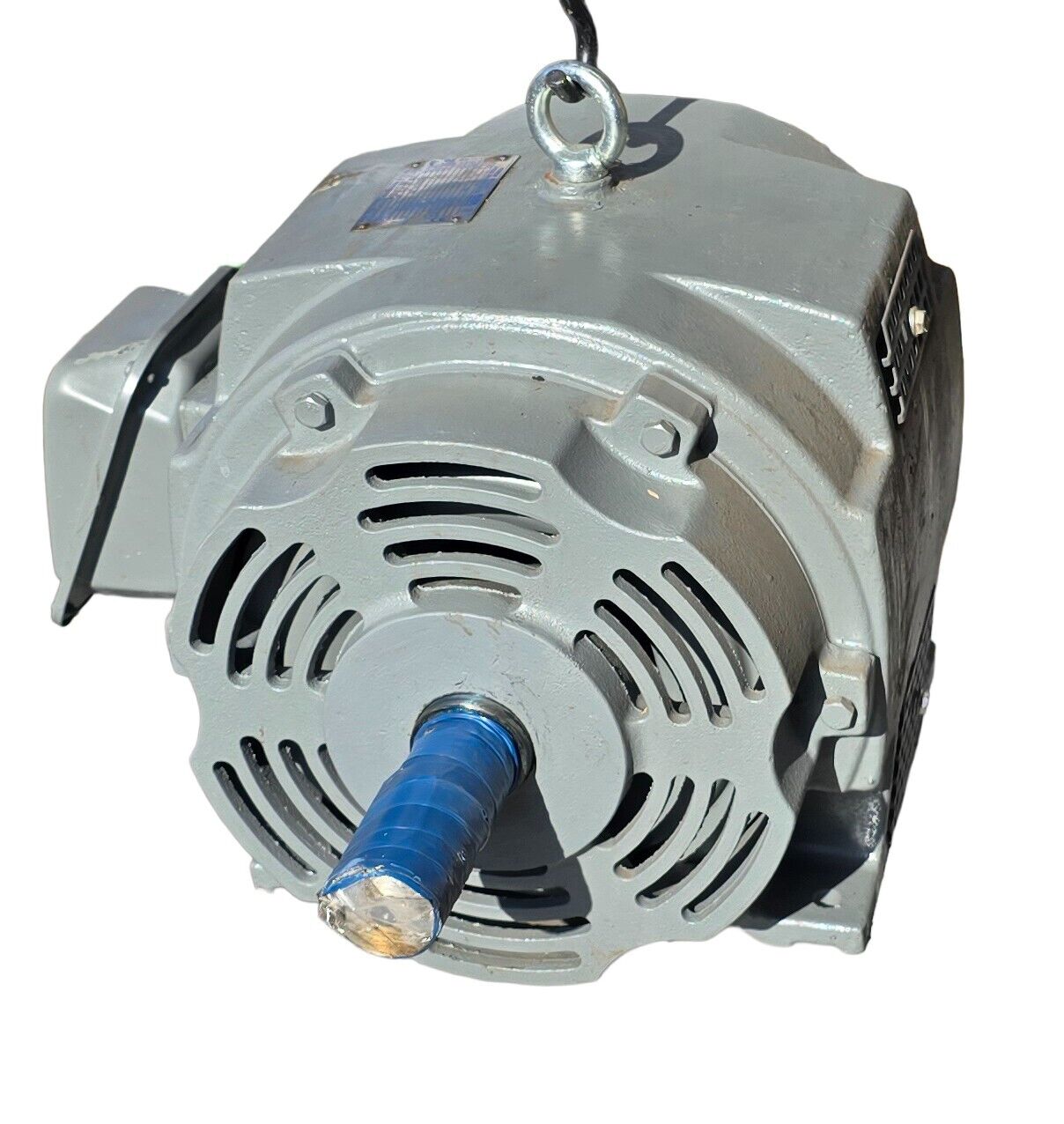

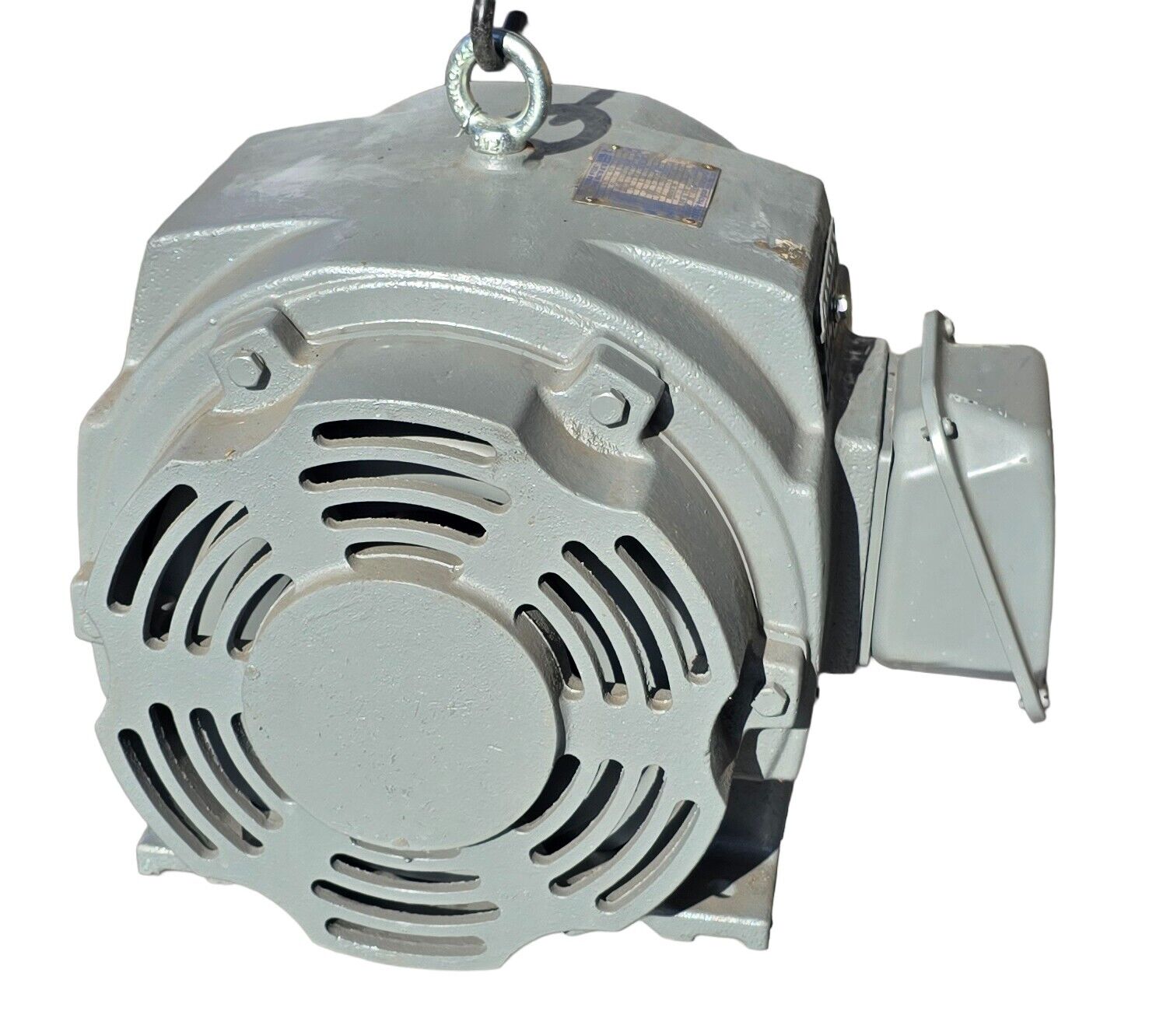

TECO-Westinghouse DHP0154 15HP 254T ODP Motor 230/460V 1770RPM

TECO-Westinghouse DHP0154 – 15 HP 3-Phase Premium Efficiency Induction Motor

This listing is for a brand new TECO-Westinghouse DHP0154 15 HP 3-phase induction motor, built for high performance and durability in demanding industrial environments. The DHP series meets or exceeds NEMA Premium® efficiency standards, ensuring lower operating costs and improved system reliability.

Ideal for general-purpose applications, pumps, compressors, fans, and conveyors. The motor is inverter-duty rated and ready for use with VFD systems.

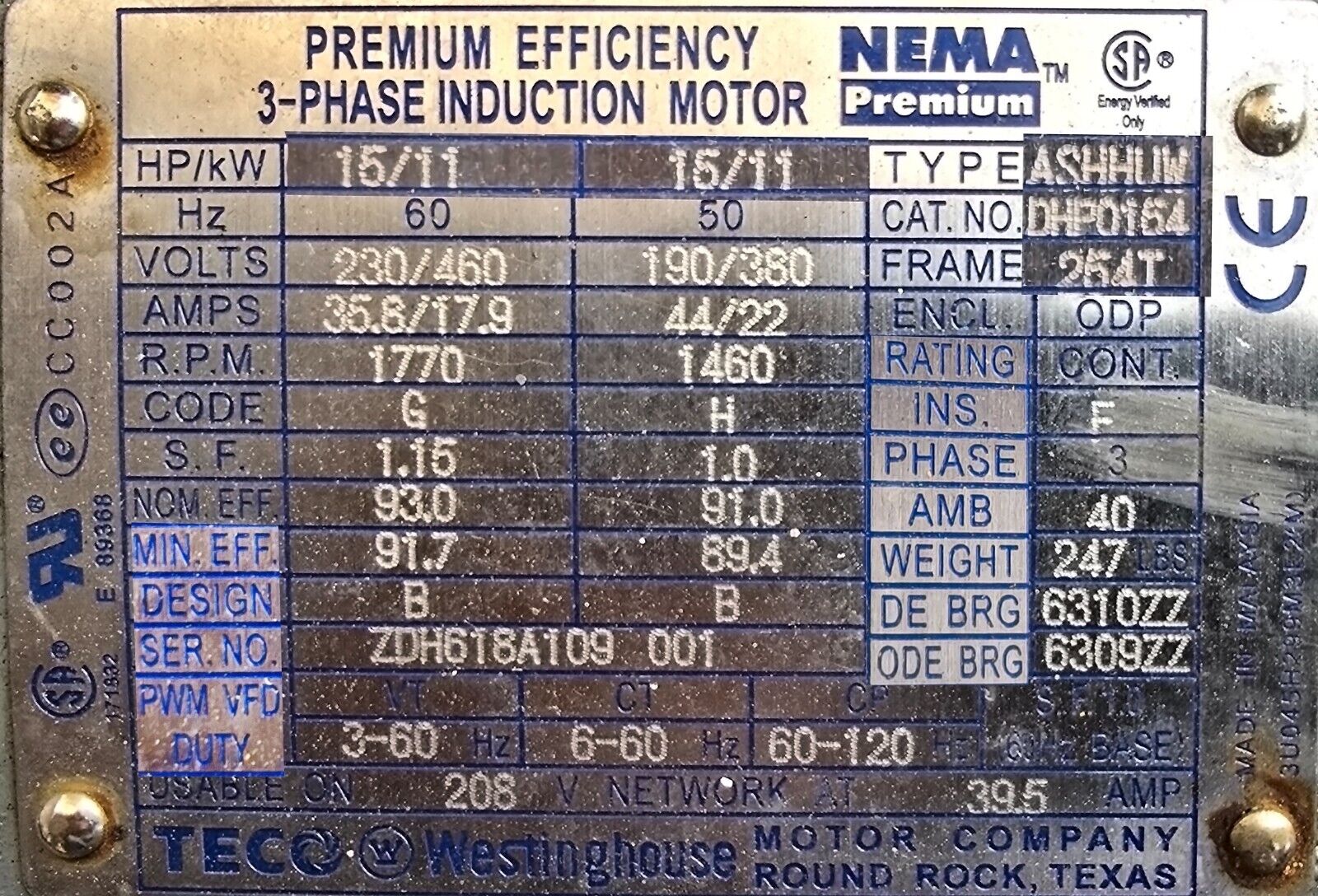

Specifications

Attribute	Value
Model	DHP0154
Horsepower	15 HP (11 kW)
Voltage	230/460 V
Frequency	60 Hz
Phase	3-Phase
Full Load Amps	35.8 A @ 230V / 17.9 A @ 460V
Base RPM	1770 RPM
Frame Size	254T
Enclosure Type	ODP (Open Drip Proof)
Mounting	Foot Mount (Standard T-frame)
NEMA Design	B
Insulation Class	F
Service Factor	1.15
Efficiency (Nominal)	93.0%
Efficiency (Minimum)	91.7%
Bearing Type	DE: 6310ZZ / ODE: 6309ZZ
Reversible	Yes
PWM Inverter Duty	Yes
Weight	247 lbs
Shaft Diameter	1.625 in (Standard for 254T)

Features

Premium efficiency for reduced energy costs
Inverter-ready for VFD applications
Cast iron frame and end bells for rugged environments
NEMA standard dimensions – easy drop-in replacement
Made in USA by TECO-Westinghouse

LOCAL PICKUP OR FREIGHT – BUYERS CHOICE. WE WILL PACKAGE ON PALLET FOR CARRIER OF YOUR CHOOSING

WE SHIP WORLD WIDE!

Ideal for general-purpose applications, pumps, compressors, fans, and conveyors. The motor is inverter-duty rated and ready for use with VFD systems.

Specifications

Attribute	Value
Model	DHP0154
Horsepower	15 HP (11 kW)
Voltage	230/460 V
Frequency	60 Hz
Phase	3-Phase
Full Load Amps	35.8 A @ 230V / 17.9 A @ 460V
Base RPM	1770 RPM
Frame Size	254T
Enclosure Type	ODP (Open Drip Proof)
Mounting	Foot Mount (Standard T-frame)
NEMA Design	B
Insulation Class	F
Service Factor	1.15
Efficiency (Nominal)	93.0%
Efficiency (Minimum)	91.7%
Bearing Type	DE: 6310ZZ / ODE: 6309ZZ
Reversible	Yes
PWM Inverter Duty	Yes
Weight	247 lbs
Shaft Diameter	1.625 in (Standard for 254T)

Features

Premium efficiency for reduced energy costs
Inverter-ready for VFD applications
Cast iron frame and end bells for rugged environments
NEMA standard dimensions – easy drop-in replacement
Made in USA by TECO-Westinghouse

LOCAL PICKUP OR FREIGHT – BUYERS CHOICE. WE WILL PACKAGE ON PALLET FOR CARRIER OF YOUR CHOOSING

Additional information

Weight	300 lbs
Dimensions	48.00 × 42.00 × 20.00 in
ACTUAL RATED INPUT VOLTAGE	230/460 V
RATED/FULL-LOAD TORQUE	~44 lb-ft (calculated
FULL LOAD AMPS	35.8/17.9 A
INVERTER/VECTOR DUTY RATING	PWM Inverter Duty Rated
RATED LOAD (HP)	15 HP
IEC FRAME SIZE	254T
NEMA DESIGN LETTER	Design B (General Purpose)
AC FREQUENCY RATING	50/60 Hz
ENCLOSURE TYPE	OPEN DRIP PROOF
BASE RPM	1770
AC MOTOR TYPE	Induction/Asynchronous
SHAFT DIAMETER	1.625 in
MPN	DHP0154
INSULATION CLASS	F (Max 311°F)
MOUNTING TYPE	Foot-Mounted
Brand	Westinghouse
REVERSIBLE/NON-REVERSIBLE	Reversible
CURRENT TYPE	AC
SERVICE FACTOR	1.15
MODEL	DHP0154
NOMINAL RATED INPUT VOLTAGE	230/460
AC PHASE	Three Phase
NEMA FRAME SUFFIX	T
Condition	New – Open box
Condition Description	* 60 DAY MONEY BACK GUARANTEE *
