Description

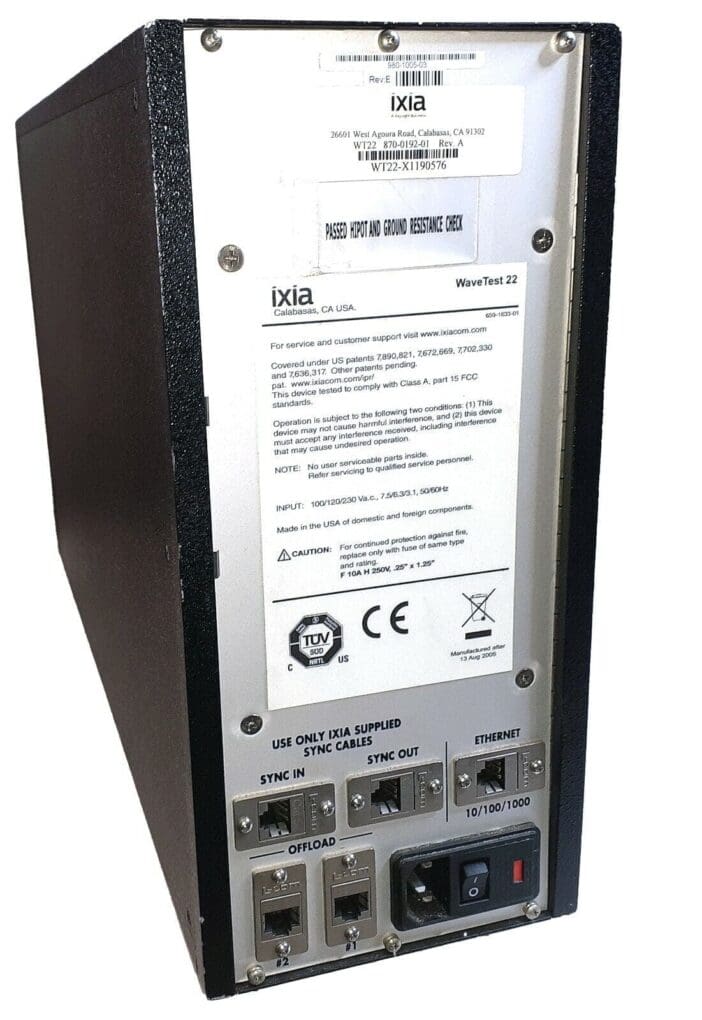

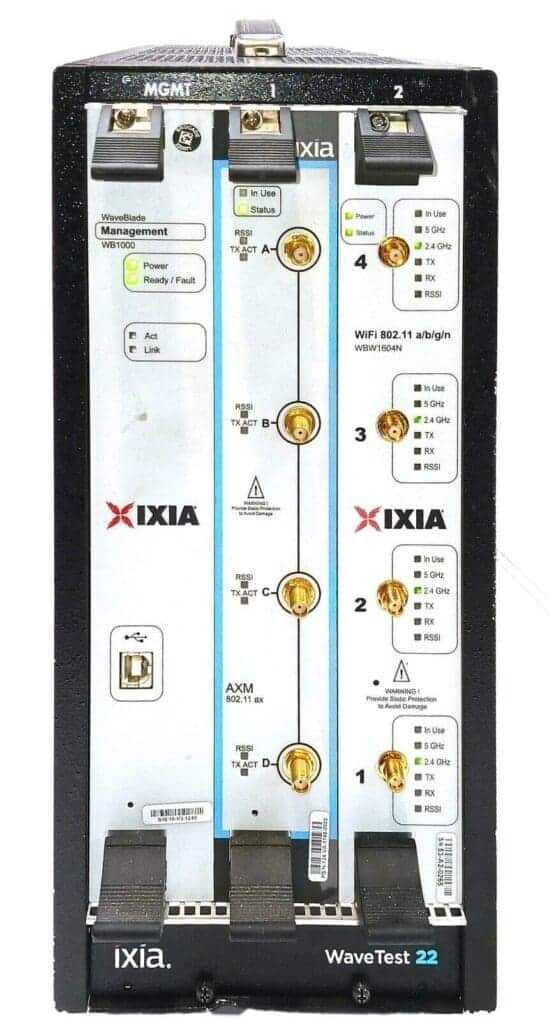

IXIA WAVETEST 22 CHASSIS with Management module + WBE 1604 + AXM 802.11
The IxVeriWave Ethernet Server WaveBlade provides a complete Layer 2-7 test product to evaluate the functionality and performance of Ethernet-based networking products. Designed for testing network infrastructure devices such as access points, broadband home gateways, controllers, switches, and routers the Ethernet WaveBlade integrates traffic generation and analysis capabilities on a single platform.
Each Ethernet WaveBlade port generates fully interleaved, multi-protocol IP traffic from hundreds of independent Ethernet clients or servers at wire-speed. A line-card that fits into the IxVeriWave WT90 and WT20 chassis, WaveBlade Ethernet interworks seamlessly with the WaveBlade Wi-Fi 802.11n and WaveBlade WiFi 802.11a/b/g line-cards to provide the essential tools needed to complete functional and large scale testing. While interworking with the Wi-Fi WaveBlades offers unique Wireless LAN (WLAN) infrastructure testing capabilities, WaveBlade Ethernet cards can also be used for testing of Ethernet-only networks and devices.
| WBE1104 | WBE1101 | WBE1604 | WBE1601 | |
|---|---|---|---|---|
| Connector type | RJ45 | |||
| Number of ports per WaveBlade | 4 | 1 | 4 | 1 |
| Maximum ports per chassis | 36 | 9 | 36 | 9 |
| Ethernet PHY rates | 10/100/1000 Mbps | |||
| Capture buffer (per port) | 256 MB | |||
| Number of clients / subscribers (per WaveBlade) | 2,000 | 500 | 2,000 | 500 |
| Number of interleaved flows (per WaveBlade) | 4,000 | 1,000 | 4,000 | 1,000 |
| Transmit capability | Wire-speed hardware frame generation with timestamps, sequence numbers, data integrity signature, and flow group Identifiers | |||
| Receive capability | Wire-speed frame filtering, data integrity, and sequence checking, capture, real-time latency measurement on each flow | |||
| User defined field modifier (per flow) | Increment or decrement by user-defined step; up to 256 bytes from start of frame | |||
| Frame length control | Fixed, increment by user-defined step or automatic | |||
| Statistics and rate counters | Link State, Line Speed, Frames Sent, Signature Valid Frames Received, Signature Error Frames Received, Bytes Sent/Received, Fragments Received, Undersize, Oversize, VLAN Tagged Frames, Per User Priority QoS counters, FCS errors, Bad Sequence Errors, Bad Payload Checksum, ARP, DHCP and Ping requests and replies, IP/ICMP/UDP/TCP checksum errors, IP Multicast packets, Sent/Received IP Packets | |||
| Flow analysis | Real-time statistics to track up to 131,072 flows | |||
| Time-stamp accuracy | 50 ns resolution | |||
| IPv4, UDP, TCP | Hardware checksum generation | |||
| IPv6 |
| |||
ATTENTION PLEASE!
IXIA CLIENT SOFTWARE:The software provided on all Ixia items is the server software only. The server software has ixserver and iexplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.
You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account. We offer a selection of these applications to our customers at no charge but the selection is incomplete. We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.
In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.
<
Additional information
| Weight | 13.60777110 lbs |
|---|---|
| Dimensions | 24 × 16 × 10 in |
| Brand | |
| Condition | |
| Condition Description | |
| MODEL | WAVETEST 22 |
| MPN | |
| PROTOCOL S ANALYZED | 802.11 |
