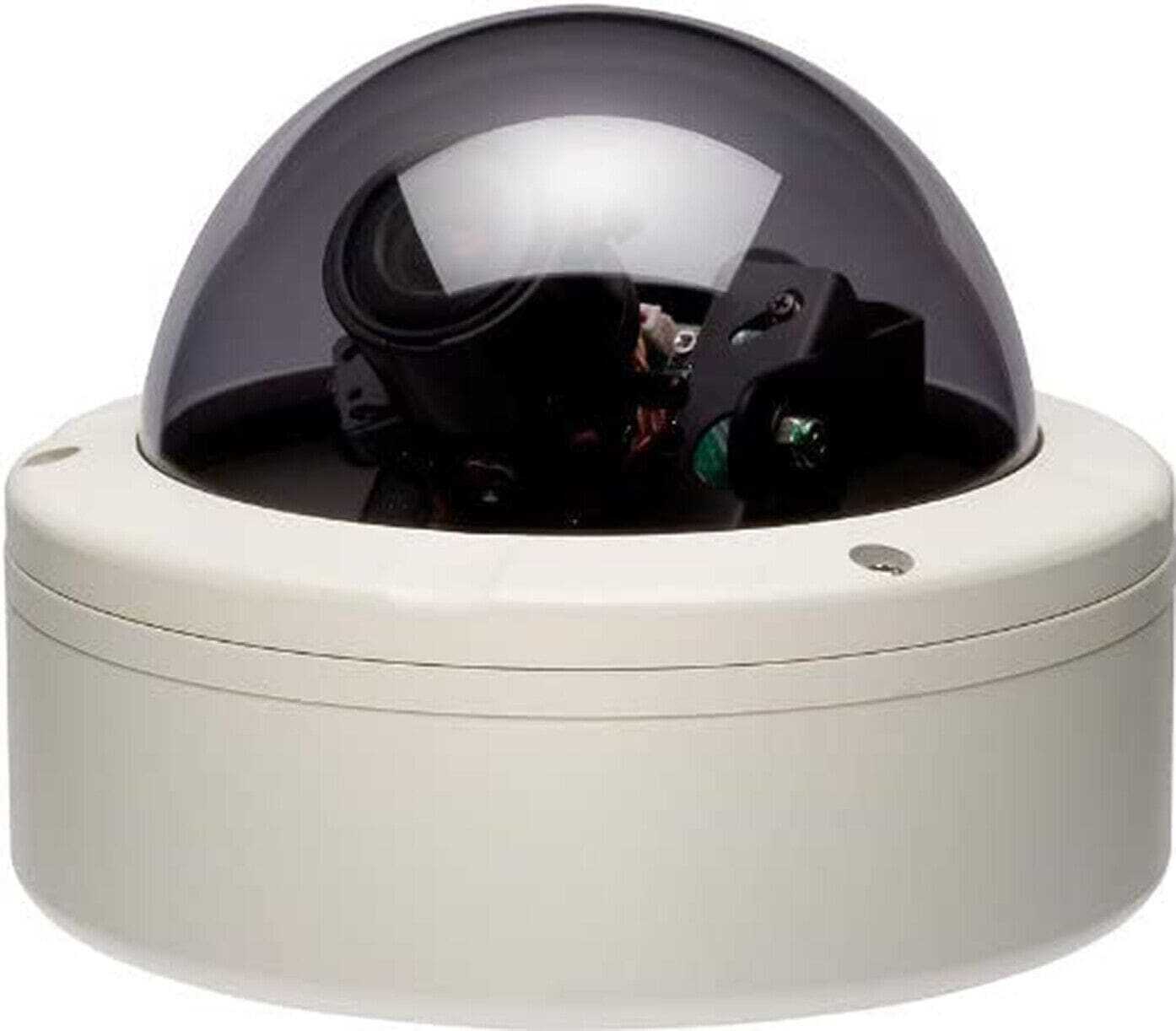

- VTD-VPH412: With 3.7-12mm Varifocal Lens
- 0.7 Lux / F1.2 (AGC On)
- 480 TV Lines Resolution
- 3-Axis Camera Mount Adjustment
- Compact 5″ Diameter Dome May Be Surface or Semi Flush Mounted (Adapter Included)
- Vandal & Weather Resistant
- Dual Voltage: 12VDC / 24VAC
VTD-VPH SERIES |
Image Device1/3″ High Resolution Super HAD Color CCD |
Effective Pixels768 x 494 |
Resolution480 TV Lines |
Minimum IlluminationStandard Cameras: 0.7 Lux / F1.2 (AGC On) Day/Night Cameras: 0.03 Lux / F1.2 (AGC On) With Day/Night Function |
S/N RatioMore than 48dB (AGC off) |
Electronic Shutter1/60 to 1/100,000 Sec. |
AGCBuilt-In (On) |
LensVTD-VPH3.6: Color Camera With 3.6mm Fixed Iris Lens VTD-VPH266: Color Camera With 2.6-6mm Varifocal Lens VTD-VPH412: Color Camera With 3.7-12mm Varifocal Lens VTD-VPH922: Color Camera With 9-22mm Varifocal Lens VTD-VPH266DN: Day/Night Color Camera With 2.6-6mm Varifocal Lens VTD-VPH412DN: Day/Night Color Camera With 3.7-12mm Varifocal Lens VTD-VPH922DN: Day/Night Color Camera With 9-22mm Varifocal Lens |
Video OutputComposite: 1.0 Vp-p / 75 Ohm |
White BalanceAuto White Balance (AWB) |
Power SourceDual Voltage: 12VDC / 24VAC |
Weight750 g. / 26.46 Oz. / 1.65 Lbs. |
Dimensions160mm x 99mm / 6.29″ x 3.89” (D x H) |
ConstructionAluminum/Tin Base – Polycarbonate Bubble |
IP RatingIP66/68 |
Operation Temperature14° ~ 122° Fahrenheit |
