Vitek Vtd-hd2x8rt 10-Channel Hybrid Dvr With DVD Writer (4 TB)
£369.58
Out of stock
SKU: 124245358388_A5DC Category: Surveillance DVRs & NVRs
Description
ZOMBIE COMPONENTS

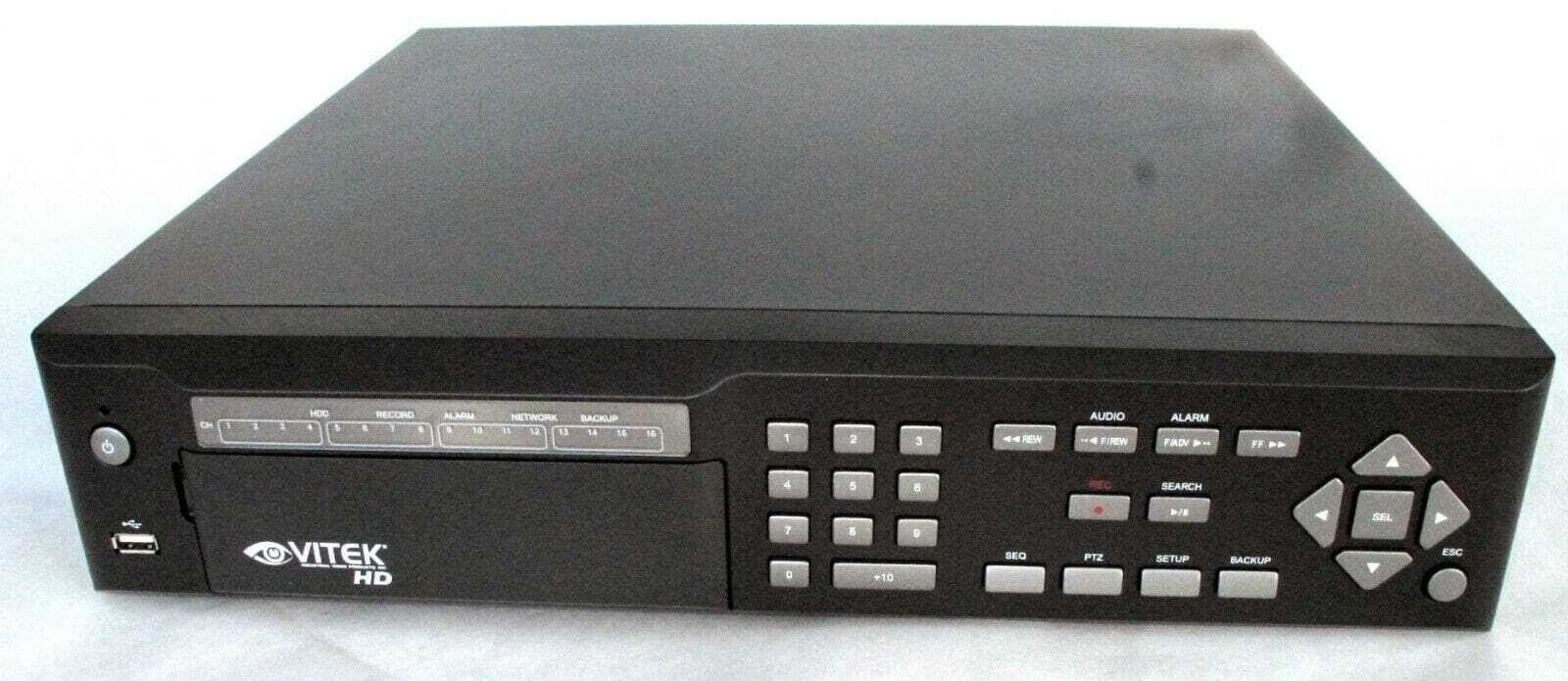

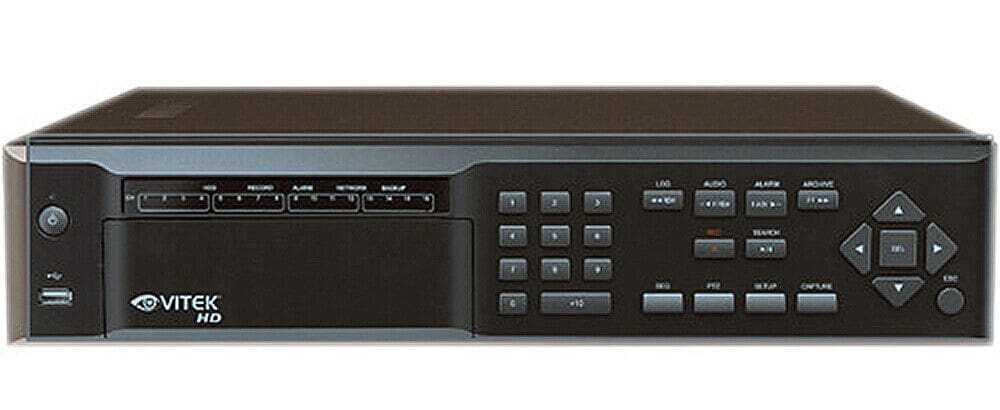

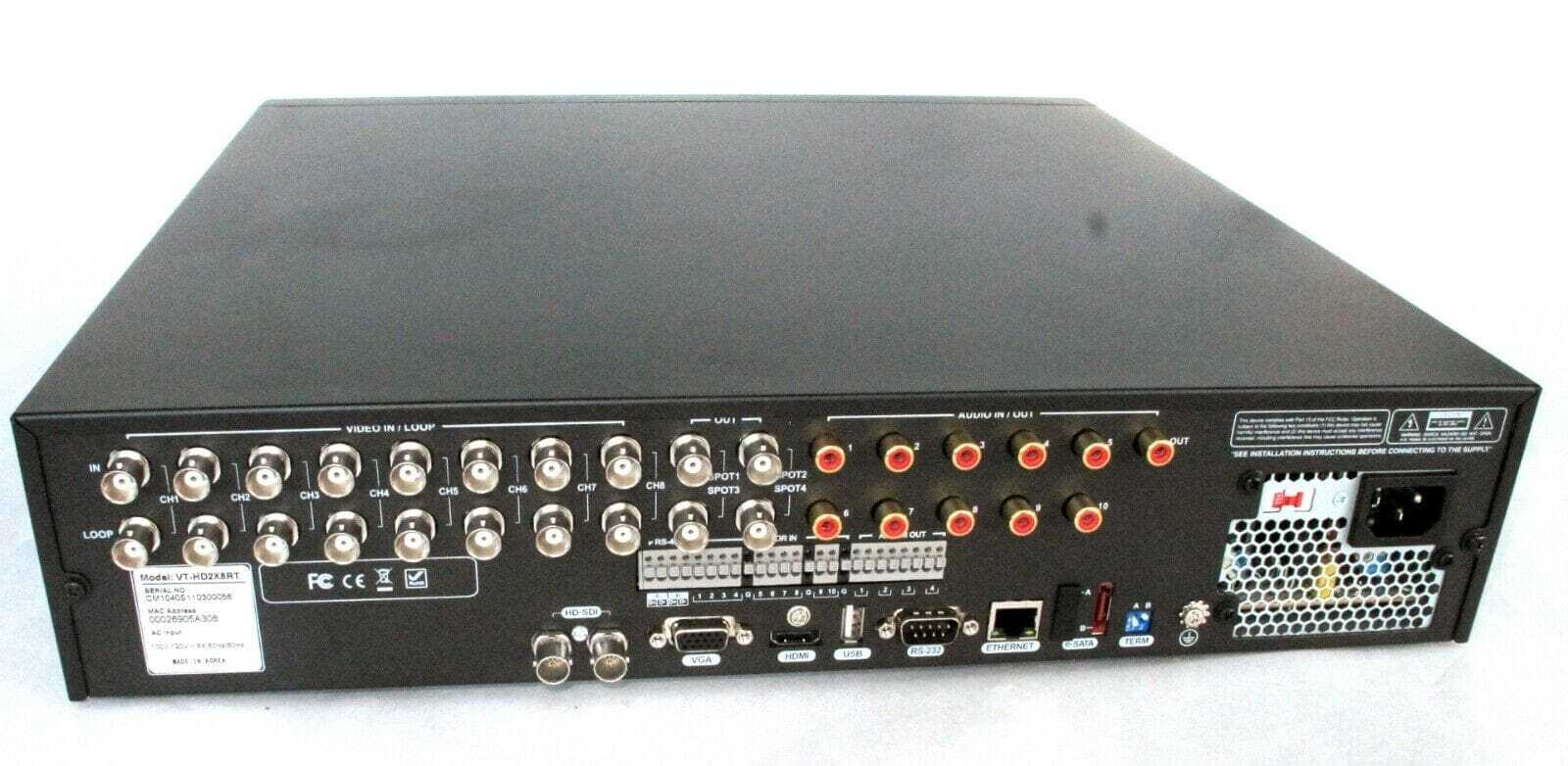

Vitek VTD-HD2x8RT 10-channel Hybrid DVR with DVD Writer (4 TB)
The Vitek VT-HD2x8RT 10-channel Hybrid DVR with DVD Writer (4 TB) takes the lead in CCTV video recording with its innovative hybrid technology, which enables simultaneous HD recording (on 2 channels) as well as full D1 resolutions (8 channels).
With the Quadplex operation, you can simultaneously record, play back, network, and back up video footage. Watermarking authenticates the recorded videos, thus thwarting any attempts to tamper or replicate footage. You can leave the DVR to record continuously, or manually configure it to record when it detects motion. Keeping track of high-risk areas during peak hours is simplified with the DVR's scheduled recording mode, which can be programmed to record at a specific time or date.
The DVR supports PTZ cameras via the RS485 port. You can back up or archive data via the network, USB ports, ODD, or an external HDD. Thanks to DDNS support, setting up a remote connection is quick and easy. With a built-in web server, the DVR allows browser-based video management including remote viewing, backup, and PTZ controls.
Hybrid Recording
Records real-time footage at HD (1080p / 720p) and full D1 resolutions, simultaneously
2 Channels for HD resolution and 8 channels for D1 resolution
H.264 Compression
Quadplex Operation
Simultaneously record, play back, network, and back up video footage
Ample Storage
Storage capacity of 4 TB
Watermarking
For authentication purposes
Prevents recorded videos from being copied and tampered
Recording Modes
Supports continuous, schedule, motion, sensor, and manual
PTZ camera Support
PTZ cameras are supported via the RS485 port
Search Modes
Searches for recordings by timeline, event, archive, log, or specific time
Data Backup
Back up or archive your videos through USB devices, the built-in DVD writer, an external HDD, or via network
Compatibility
Built-in web server and client software for browser-based video management including live, search, backup, and PTZ operations
Compatible with IOS (iPhone) and Android running 3G smartphones for remote surveillance and controlling of the DVR
Transmission
Lossless video transmission over coaxial cable
Connection and Control
Simple plug and play, point-to-point connection from camera to DVR
Can be controlled via an IR remote control, mouse (option), or a keyboard controller
| Vitek VTD-HD2X8RT Specs | DESC |
| Video Input / Resolution | 2 CH HD CCTV 720p / 1080p + 8 CH D1 (Hybrid) |
| Video Loss Check | Yes |
| Main Monitor Output | 1 HDMI |
| Sub TC Generator | 1 VGA |
| Spot | 2 BNC |
| Audio Input / Output | 10 CH Input & 1 CH Output |
| Audio Codec | G.726 (ADPCM) |
| Alarm Sensor Input | 16 CH (NC / NO Selectable) |
| Alarm Out | 1CH out (by Sensor, Motion detection and Video Loss) |
| Recording Compression Method | H.264 |
| Recording Multi Operation | Quadplex (Playback, Recording, Backup, Network) |
| Recording Resolution | 720p / 1080p: 1920 x 1080, 1280 x 720, 640 x 360 / D1: 704 x 480, 704 x 240, 352 x 240 |
| Recoding Quality Grade | 5 Levels |
| Recording Mode | Continuous, Schedule, Motion, Sensor, Manual |
| Motion Detection | Setup by Grid |
| Pre Recording | Min. 1 Minute before an Event |
| Post Recording | Max. 1 Hour after an Event |
| Playback Multi Decoding | 1, 4 |
| Playback Speed | X2, 4, 16 and 32 |
| Search Modes | Timeline, Event, Archive, Log, Specific Time |
| HDD Interface | Serial ATA |
| Max HDD Size | 4 TB |
| Internal HDD | 4 Terabyte HDD (4000 GB) |
| External Storage | 1 eSATA |
| File System | NaFS2 |
| Backup Format | JPEG, AVI and NaFS |
| Backup Media | USB, ODD, External HDD, Network |
| Raid | RAID 0 / 1 / 5 / 6 / JBOD |
| Menu Display | GUI (Graphic User Interface) |
| Input Method | IR Remote Control, Mouse (Option), Keyboard Controller |
| Console & POS (Serial Port) | 1 RS-232C (D-sub 9 pin) |
| PTZ & Keyboard control | 2 RS-485 |
| Dynamic DNS | Free DDNS |
| Streaming | RTP, RTSP |
| Protocols | HTTP, DDNS, NTP |
| Network Interface | 10/100/1000 Base TX Ethernet (RJ45 1EA) |
| Dual Network Streaming | H.264 CIF 120 fps |
| Web Viewer | Live, Search, Backup, PTZ |
| 3G Mobile Viewer | Live, Search / PTZF (Option) |
| Client Software | Live, Search, Backup, PTZ |
| Multi Sites Monitoring Software | Live, Search, Backup, PTZ |
| DLS (Day Light Saving) | Yes |
| Internal Beep | By Alarm, Motion, Video Loss, HDD Error |
| Multi-Language | Yes |
| Software Upgrade | By USB Flash Drive, Network Remote Upgrade (TBD) |
| NTP (Network Time Protocol) | Yes |
| Watermarking | Yes |
| Digital Zoom | Yes |
| Remote Setup | Yes |
| Operating Conditions | 32 to 104° F (0 to 40° C), Humidity 20 to 80% |
| Power | AC 100-127 V / 200-240 V, 5-60 Hz, 280 W |
| Net/Gross Weight | 13.2 lb (6 kg) / 20.9 lb (9.5 kg) |
| Unit Dimension (W x D x H) | 16.4 x 17 x 3.9″ (417 x 432 x 99 mm ) |
WE SHIP WORLD WIDE!
Hybrid Recording
Records real-time footage at HD (1080p / 720p) and full D1 resolutions, simultaneously
2 Channels for HD resolution and 8 channels for D1 resolution
H.264 Compression
Quadplex Operation
Simultaneously record, play back, network, and back up video footage
Ample Storage
Storage capacity of 4 TB
Watermarking
For authentication purposes
Prevents recorded videos from being copied and tampered
Recording Modes
Supports continuous, schedule, motion, sensor, and manual
PTZ camera Support
PTZ cameras are supported via the RS485 port
Search Modes
Searches for recordings by timeline, event, archive, log, or specific time
Data Backup
Back up or archive your videos through USB devices, the built-in DVD writer, an external HDD, or via network
Compatibility
Built-in web server and client software for browser-based video management including live, search, backup, and PTZ operations
Compatible with IOS (iPhone) and Android running 3G smartphones for remote surveillance and controlling of the DVR
Transmission
Lossless video transmission over coaxial cable
Connection and Control
Simple plug and play, point-to-point connection from camera to DVR
Can be controlled via an IR remote control, mouse (option), or a keyboard controller
| Vitek VTD-HD2X8RT Specs | DESC |
| Video Input / Resolution | 2 CH HD CCTV 720p / 1080p + 8 CH D1 (Hybrid) |
| Video Loss Check | Yes |
| Main Monitor Output | 1 HDMI |
| Sub TC Generator | 1 VGA |
| Spot | 2 BNC |
| Audio Input / Output | 10 CH Input & 1 CH Output |
| Audio Codec | G.726 (ADPCM) |
| Alarm Sensor Input | 16 CH (NC / NO Selectable) |
| Alarm Out | 1CH out (by Sensor, Motion detection and Video Loss) |
| Recording Compression Method | H.264 |
| Recording Multi Operation | Quadplex (Playback, Recording, Backup, Network) |
| Recording Resolution | 720p / 1080p: 1920 x 1080, 1280 x 720, 640 x 360 / D1: 704 x 480, 704 x 240, 352 x 240 |
| Recoding Quality Grade | 5 Levels |
| Recording Mode | Continuous, Schedule, Motion, Sensor, Manual |
| Motion Detection | Setup by Grid |
| Pre Recording | Min. 1 Minute before an Event |
| Post Recording | Max. 1 Hour after an Event |
| Playback Multi Decoding | 1, 4 |
| Playback Speed | X2, 4, 16 and 32 |
| Search Modes | Timeline, Event, Archive, Log, Specific Time |
| HDD Interface | Serial ATA |
| Max HDD Size | 4 TB |
| Internal HDD | 4 Terabyte HDD (4000 GB) |
| External Storage | 1 eSATA |
| File System | NaFS2 |
| Backup Format | JPEG, AVI and NaFS |
| Backup Media | USB, ODD, External HDD, Network |
| Raid | RAID 0 / 1 / 5 / 6 / JBOD |
| Menu Display | GUI (Graphic User Interface) |
| Input Method | IR Remote Control, Mouse (Option), Keyboard Controller |
| Console & POS (Serial Port) | 1 RS-232C (D-sub 9 pin) |
| PTZ & Keyboard control | 2 RS-485 |
| Dynamic DNS | Free DDNS |
| Streaming | RTP, RTSP |
| Protocols | HTTP, DDNS, NTP |
| Network Interface | 10/100/1000 Base TX Ethernet (RJ45 1EA) |
| Dual Network Streaming | H.264 CIF 120 fps |
| Web Viewer | Live, Search, Backup, PTZ |
| 3G Mobile Viewer | Live, Search / PTZF (Option) |
| Client Software | Live, Search, Backup, PTZ |
| Multi Sites Monitoring Software | Live, Search, Backup, PTZ |
| DLS (Day Light Saving) | Yes |
| Internal Beep | By Alarm, Motion, Video Loss, HDD Error |
| Multi-Language | Yes |
| Software Upgrade | By USB Flash Drive, Network Remote Upgrade (TBD) |
| NTP (Network Time Protocol) | Yes |
| Watermarking | Yes |
| Digital Zoom | Yes |
| Remote Setup | Yes |
| Operating Conditions | 32 to 104° F (0 to 40° C), Humidity 20 to 80% |
| Power | AC 100-127 V / 200-240 V, 5-60 Hz, 280 W |
| Net/Gross Weight | 13.2 lb (6 kg) / 20.9 lb (9.5 kg) |
| Unit Dimension (W x D x H) | 16.4 x 17 x 3.9″ (417 x 432 x 99 mm ) |
