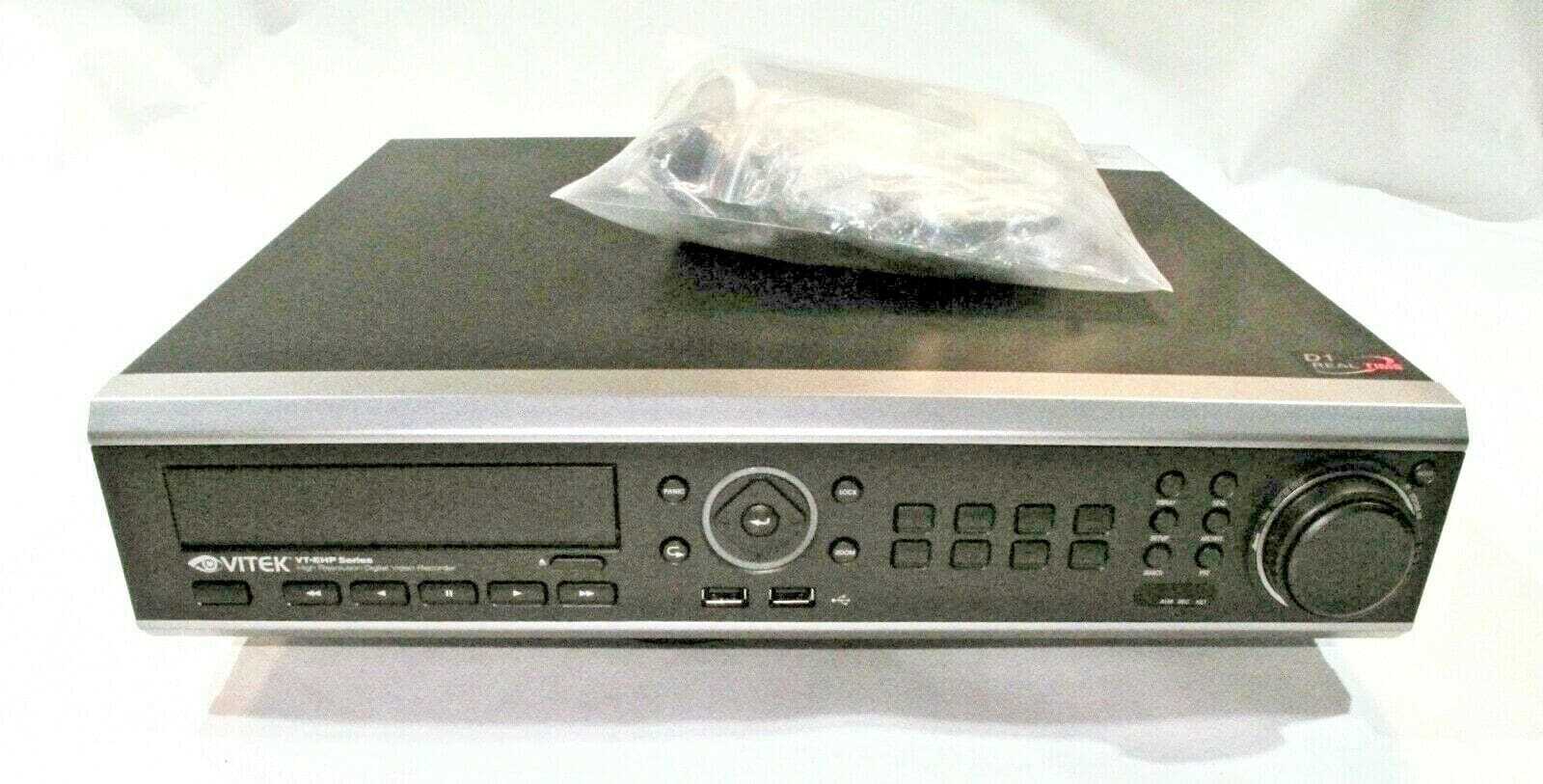

Vitek Vt-EHP8 8 Channel Premium h.264 D1 Digital Video Recorder
£203.27
Out of stock
Description
VITEK VT-EHP16 16 CHANNEL PREMIUM H.264 D1 DIGITAL VIDEO RECORDER
- 16 Video Inputs with 1 Main & 4 Spot outputs
- 16 Video Inputs with 1 Main, 4 Spot, and 1080P HDMI outputs
- H.264 Compression
- 4 Alarm Inputs / 1 Relay Out
- Up to 480fps Live Display & 480fps Recording
- Built-in Point-of-Sales support
- Built-in Data Redundancy
- Remote Viewing over a LAN or Internet
- Free Applications for iPhone, iPad, iTouch and Droid Devices
- 500GB to 8TB Internal Storage Options (up to 8TB @ 4x2TB)
- Email Event Notification with Snapshot
- CMS Central Management Software (Included)
- MAC Client Software (Included)
- Control locally via Front Panel, USB Mouse or with the Included IR Remote control
- PTZ Control over RS-485
Video Input 16 Channels
Video Compression H.264 Codec
IPS (Display /Recording) 480 / 480
Operating System Linux
Operation Mode Pentaplex
Video Output HDMI – 1 1080P (1920 x 1080)
BNC Output Monitor: 1 Composite (BNC) / Spot: 4 Composite (BNC)
Spit-Screen Live: 1,4,6,8,9, 16, SEQ / Playback: 1, 4, 9, 16
Audio In/Out 4 Line In (RCA) / 1 Line Out (RCA), CODEC : G.711 (64Kbps)
Storage Up to 4 Internal HDD (SATA) + Internal DVD-RW
Archive CD/DVD-RW / USB Device / Network
USB Port 2 Front + 1 Rear
System Control Front Panel, USB Mouse, Included IR Remote Control
Network TCP/IP, HTTP, DHCP (DDNS)
RJ-45 Ethernet Port 10M/100M/1Gbps
Search Calendar, Event
Playback Rate 480 fps @ 704×480
PTZ 2 – RS-485 – Supports most of PTZ protocols with up to 255 Presets
Point of Sale (POS) YES
Motion Area Setting Adjustable Grid (16 x 12)
Recording Resolution Setting By each camera for different resoultion setting(CIF/2CIF/D1)
Recording Quality Control 4 Levels (Low/Standard/High/Highest)
Recording Schedule By hour, by day, by recording mode, By alarm, By Ch
Panic RecordOverrides all other recording settings to provide the best quality recording
Pre-recording Max. 5 seconds
Post-recording Max. 180 seconds
Player Backup player, Window Media Player and HDD PC Viewer E-mail notification
E-mails to specific users to notify events System Configuration
Full setup configuration over network Bandwidth limit
YES: Adjustable by User
Two-Way Audio YES
Power 12V Adaptor, 3.3A, 100~220VAC, 50~60Hz
Operating Temperature 32° ~ 104°F (0° ~ 40°C)
Humidity 10 ~ 90% NC
Case Form Factor 2U
Dimensions 17″ x 4” x 18”
WE SHIP WORLD WIDE!
- 16 Video Inputs with 1 Main & 4 Spot outputs
- 16 Video Inputs with 1 Main, 4 Spot, and 1080P HDMI outputs
- H.264 Compression
- 4 Alarm Inputs / 1 Relay Out
- Up to 480fps Live Display & 480fps Recording
- Built-in Point-of-Sales support
- Built-in Data Redundancy
- Remote Viewing over a LAN or Internet
- Free Applications for iPhone, iPad, iTouch and Droid Devices
- 500GB to 8TB Internal Storage Options (up to 8TB @ 4x2TB)
- Email Event Notification with Snapshot
- CMS Central Management Software (Included)
- MAC Client Software (Included)
- Control locally via Front Panel, USB Mouse or with the Included IR Remote control
- PTZ Control over RS-485
Video Input 16 Channels
Video Compression H.264 Codec
IPS (Display /Recording) 480 / 480
Operating System Linux
Operation Mode Pentaplex
Video Output HDMI – 1 1080P (1920 x 1080)
BNC Output Monitor: 1 Composite (BNC) / Spot: 4 Composite (BNC)
Spit-Screen Live: 1,4,6,8,9, 16, SEQ / Playback: 1, 4, 9, 16
Audio In/Out 4 Line In (RCA) / 1 Line Out (RCA), CODEC : G.711 (64Kbps)
Storage Up to 4 Internal HDD (SATA) + Internal DVD-RW
Archive CD/DVD-RW / USB Device / Network
USB Port 2 Front + 1 Rear
System Control Front Panel, USB Mouse, Included IR Remote Control
Network TCP/IP, HTTP, DHCP (DDNS)
RJ-45 Ethernet Port 10M/100M/1Gbps
Search Calendar, Event
Playback Rate 480 fps @ 704×480
PTZ 2 – RS-485 – Supports most of PTZ protocols with up to 255 Presets
Point of Sale (POS) YES
Motion Area Setting Adjustable Grid (16 x 12)
Recording Resolution Setting By each camera for different resoultion setting(CIF/2CIF/D1)
Recording Quality Control 4 Levels (Low/Standard/High/Highest)
Recording Schedule By hour, by day, by recording mode, By alarm, By Ch
Panic RecordOverrides all other recording settings to provide the best quality recording
Pre-recording Max. 5 seconds
Post-recording Max. 180 seconds
Player Backup player, Window Media Player and HDD PC Viewer E-mail notification
E-mails to specific users to notify events System Configuration
Full setup configuration over network Bandwidth limit
YES: Adjustable by User
Two-Way Audio YES
Power 12V Adaptor, 3.3A, 100~220VAC, 50~60Hz
Operating Temperature 32° ~ 104°F (0° ~ 40°C)
Humidity 10 ~ 90% NC
Case Form Factor 2U
Dimensions 17″ x 4” x 18”
