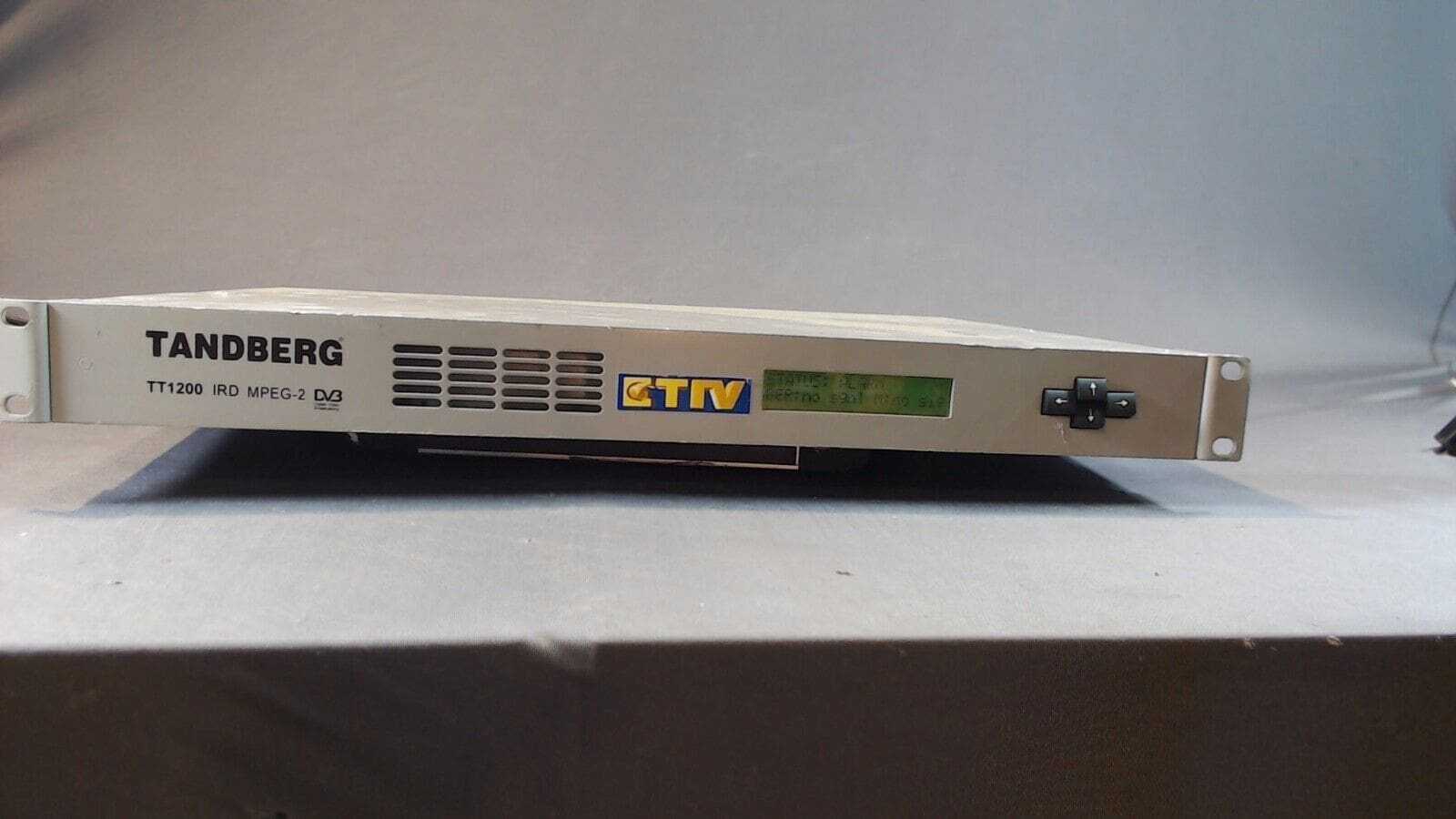

Tandberg TT1200 Mpeg-2 Dvb Satellite Receiver Decoder

Supporting a wide range of Conditional Access systems, robust and reliable in operation, the TANDBERG TT1200 is the industry reference for professional Integrated Receiver Decoders. Proven and cost-effective, the TT1200 meets the needs of professional operators of analogue and digital networks receiving MPEG-2/DVB signals with QPSK or DVB ASI input.

INPUTS DVB QPSK Demodulator Connector: F type (female), 75 ohm • Frequency range: 950 – 2150 MHz • Symbol rates: 2 – 30.5 Mbaud • LNC power: 13V, 18V or off • 22 kHz tone DVB ASI input Connector: BNC (female) Analog video output – Composite PAL/NTSC/SECAM Connectors: 2 x BNC (female) Audio Output Connectors: Mini XLR, balanced (male) • One balanced analogue audio pair • Optionally two additional audio pairs Asynchronous RS-232 data output with data rates up to 115.2 kbit/s Connector: 9-pin D type DVB ASI output (optional) Connector: BNC (female) OUTPUTS FEATURES Automatic selection of PAL/SECAM/NTSC Complete DVB PSI/SI processing PSI/SI disable for non-DVB signal handling Flexible VBI handling • Transcoding of DVB teletext, reinserted in PAL and SECAM outputs (VBI) • Wide Screen Signalling (WSS) and Video Programming System (VPS), DVB TM 1952 • Test Signal (VITS) generation • Closed Captioning (NTSC) DVB Subtitling, ETS 300 743 Teletext subtitling Auto selection of language for audio, subtitling and teletext Flexible CA handling • Conax • Irdeto • Mediaguard • Nagravision • Viaccess • Fixed Key scrambling • Signal protection Software upgradable on site Configurable alarm relay CONTROL Front panel keypad and LCD RS-232 Remote Control Protocol RELAY RS422 RS232 RS485 SMARTCARD ASI OUT PHYSICAL AND POWER Input voltage 100 – 240 Vac -48 Vdc (optional) Cooling Integrated fan, units may be stacked on top of each other Dimensions (W x D x H) 483 x 342 x 44mm (19 x 13.5 x 1.73 inches) Height 1RU ENVIRONMENTAL CONDITIONS Temperature In use: 0°C to +45°C Storage: -20°C to +70°C Relative humidity 5 – 95% COMPLIANCE CE marked in accordance with Low Voltage Directive (LVD) 73/23/EEC and EMC directive 89/
