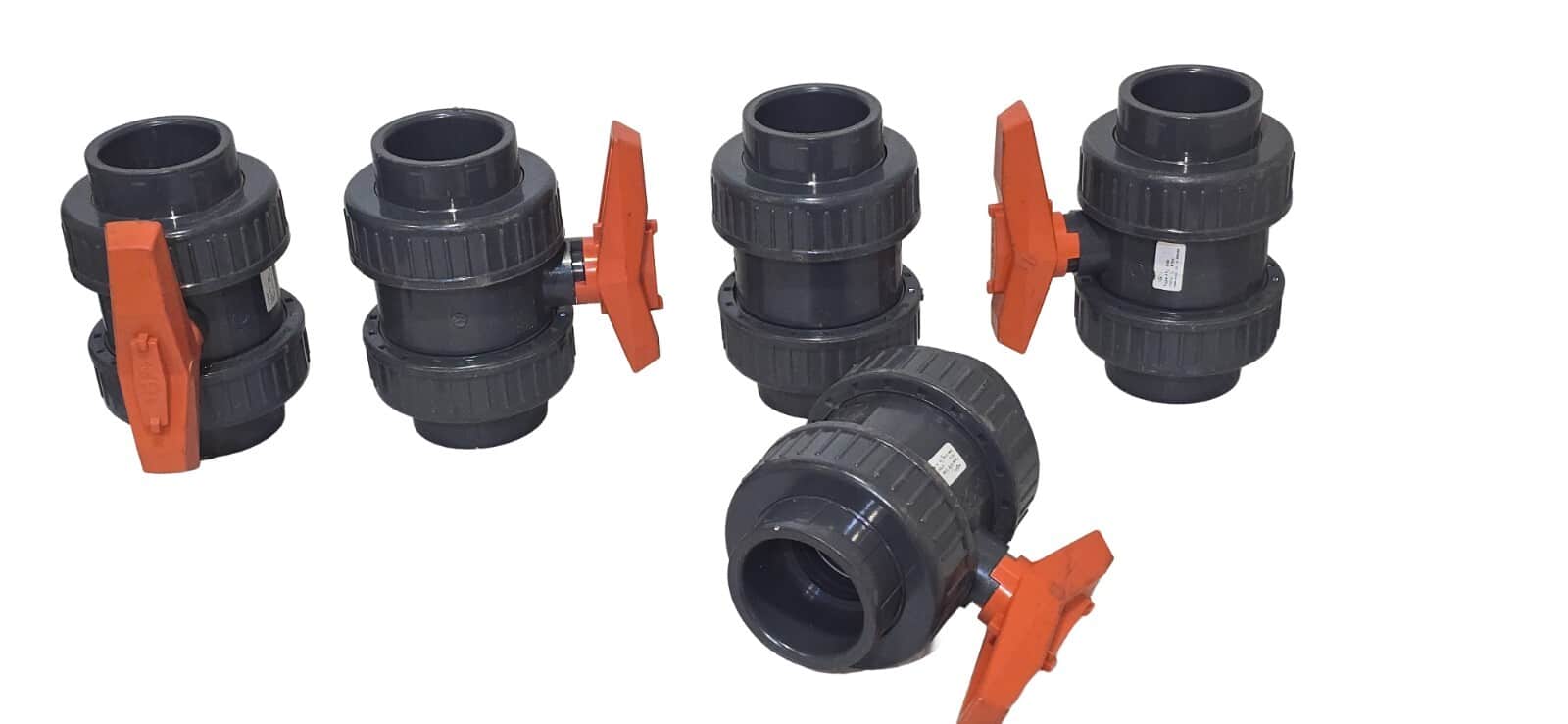

LOT OF 5 +GF+ Ball valve type 375 PVC-C solvent cement sockets metric 163375507

EPDM SEAL D 63, DN 50, SIZE 2, PN 16, kv-value (△p=1bar) 3100

Product description The Ball Valve Type 375 is an affordable manual ball valve that was developed specially for use in water applications or with non-critical chemicals. Its construction ensures simple maintenance and hence a long service life. Its compact construction makes possible simple installation into and removal from the piping system. Function The ball valve uses a rotating ball with a hole through it that allows straight-through flow in the open position and shuts off flow when the ball is rotated 90º to block the flow passage. This valve is used primarily for open/close functions and also for throttling services.

Applications

• Water treatment

• Non-critical chemicals Benefits/features

• Manual valve for water applications and non-critical media

• Ergonomic hand lever with integrated tool for removing/adjusting the union bushing

• Simple maintenance and long service life

• Simple installation and removal due to compact construction

• PTFE ball seat

• Double o-ring on the stem

• Very compact "Z" dimension

• Wide range from 16mm to 110mm and from 1/2" to 4"

Flow media Non-solid, neutral and non-aggressive media. The chemical resistance depends on the selected valve material
