- Up to 64 channel IP cameras can be connected
- Up to 12 MP high-definition live view, storage and playback
- Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected

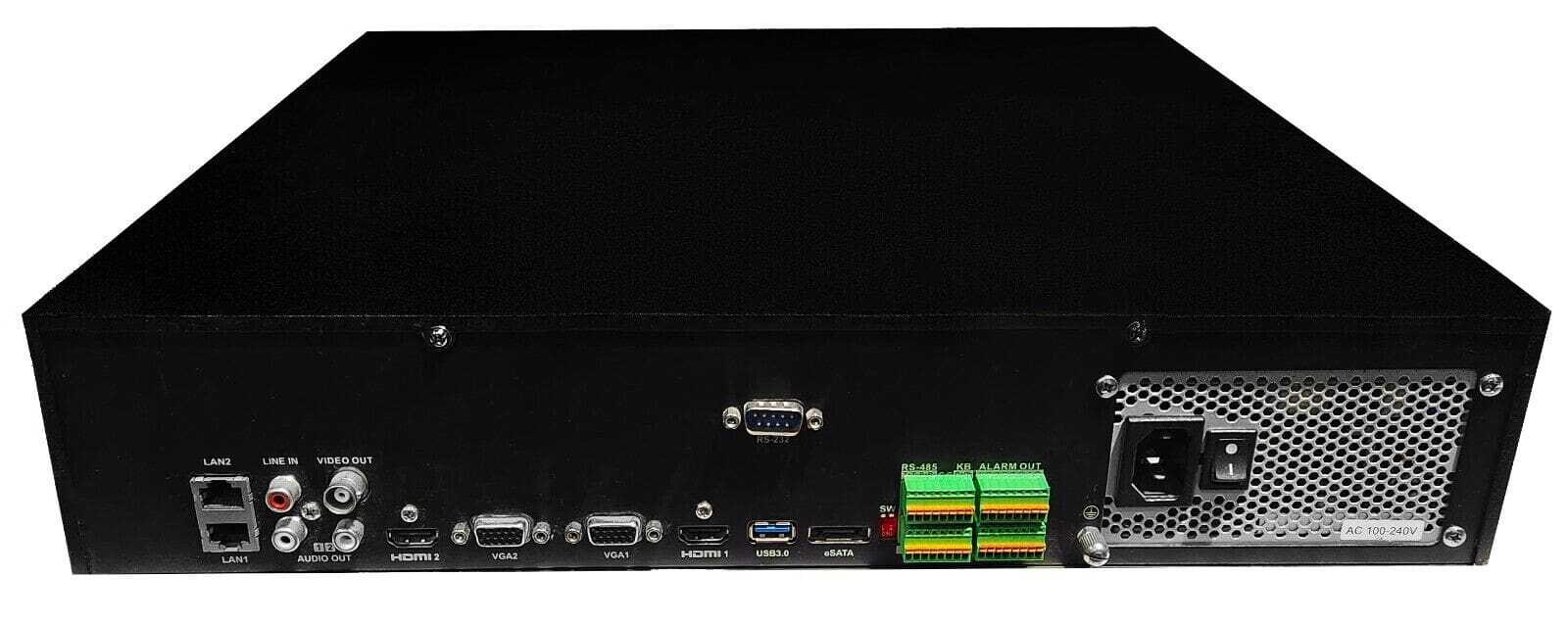

- 2 HDMI (different source) and 2 VGA (different source) interfaces

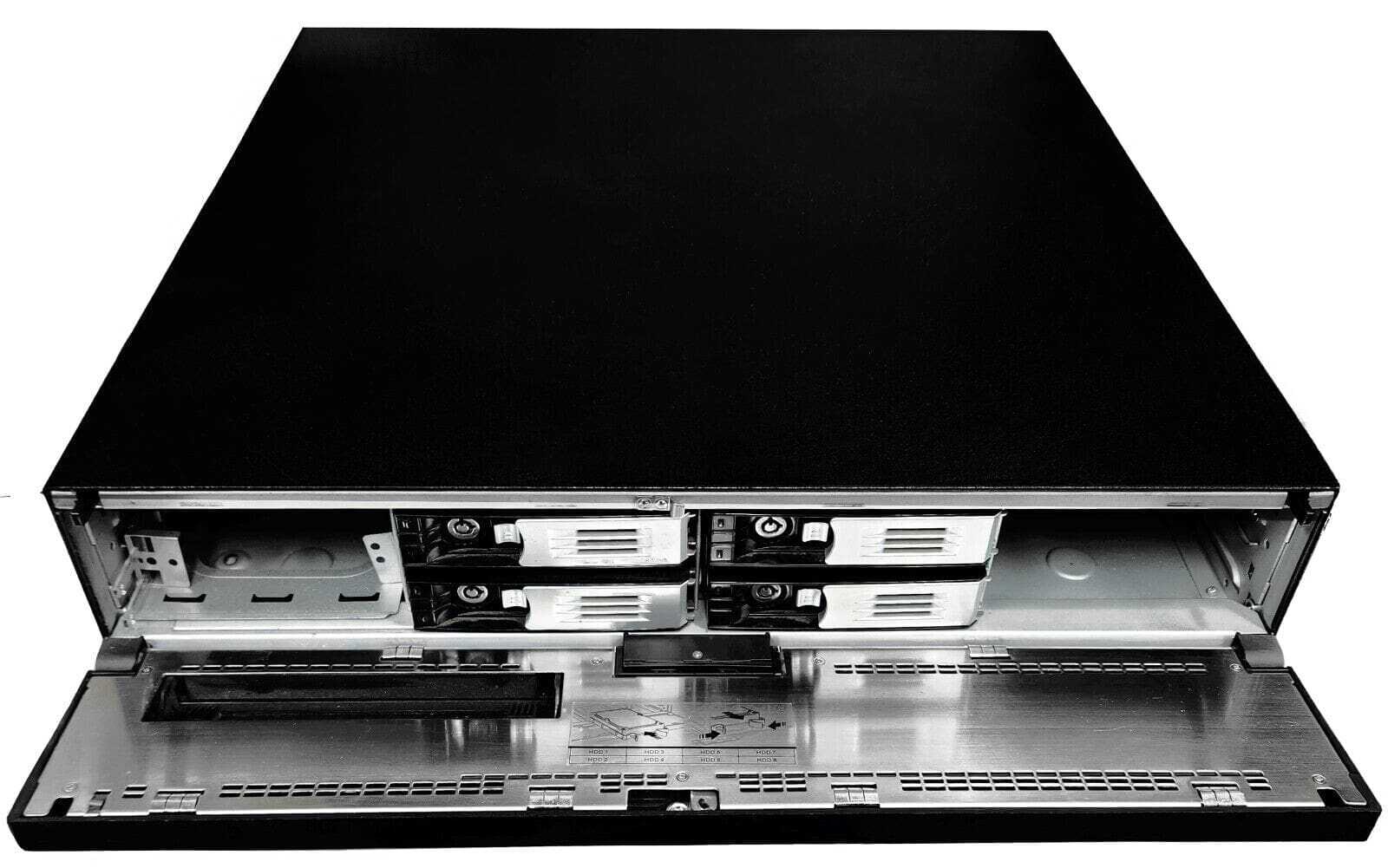

- 8 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Video Compression | |
Video Compression | H.265, H.264, H.265+, H.264+ MPE4 |
Video/Audio input & output IP Video Input | 64 Ch. IP 320 Mbps bit rate input max, 200 if raid is enabled |
Video Output | 2 HDMI, 2 VGA |
Audio Input/Output | 1/2 |
Two-way Audio | 1/1 |
Real-time recording resolution | 30fps @ Up to 12 Megapixels |
HDMI Output Resolution | 4K (3840 x 2160/60Hz) |
VGA Output Resolution | 1080P, 60Hz |
RAID | Support RAID 0, 1, 5, 10 |
Decoding Synchronous Playback | 16 ch @ 1080p |
Alarm Input/ Output | 16/4 |
General Network Interface | 2 RJ45 10M/100M/1000M adaptive Ethernet Interface |
Internal SATA | 8 SATA interfaces up to 12TB each |
eSATA | 1 eSATA |
USB interface | 2 x USB2.0, 1 x USB3.0 |
Chassis | 19-inch rack-mounted 2U |
Power Supply | 100 ~ 240VAC |
MAX Power Consumption | 200W |
Dimensions (W x D x H) | 17.52″W × 18.5″D × 3.54″H |
Weight | 22 lbs |
