Description

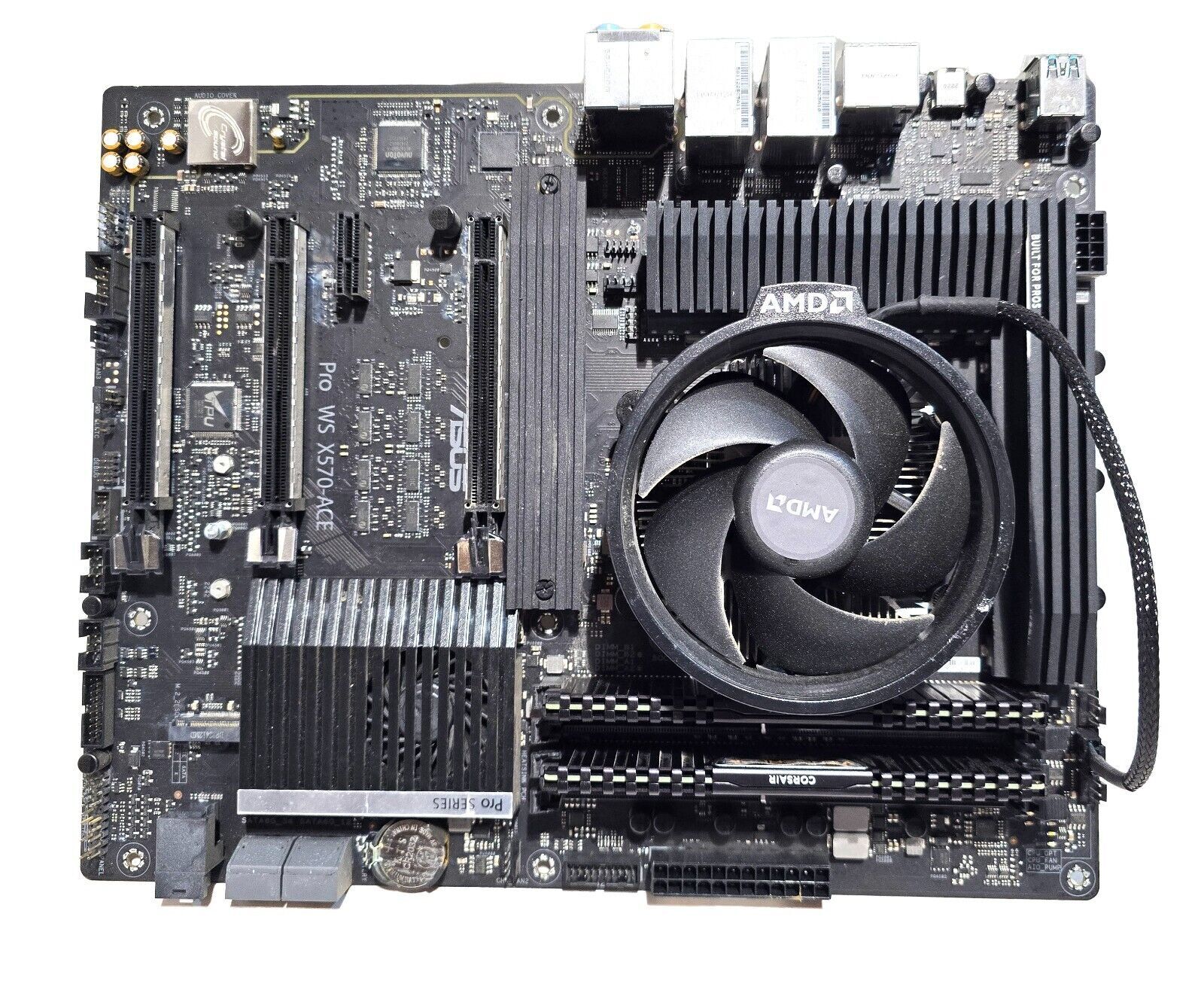

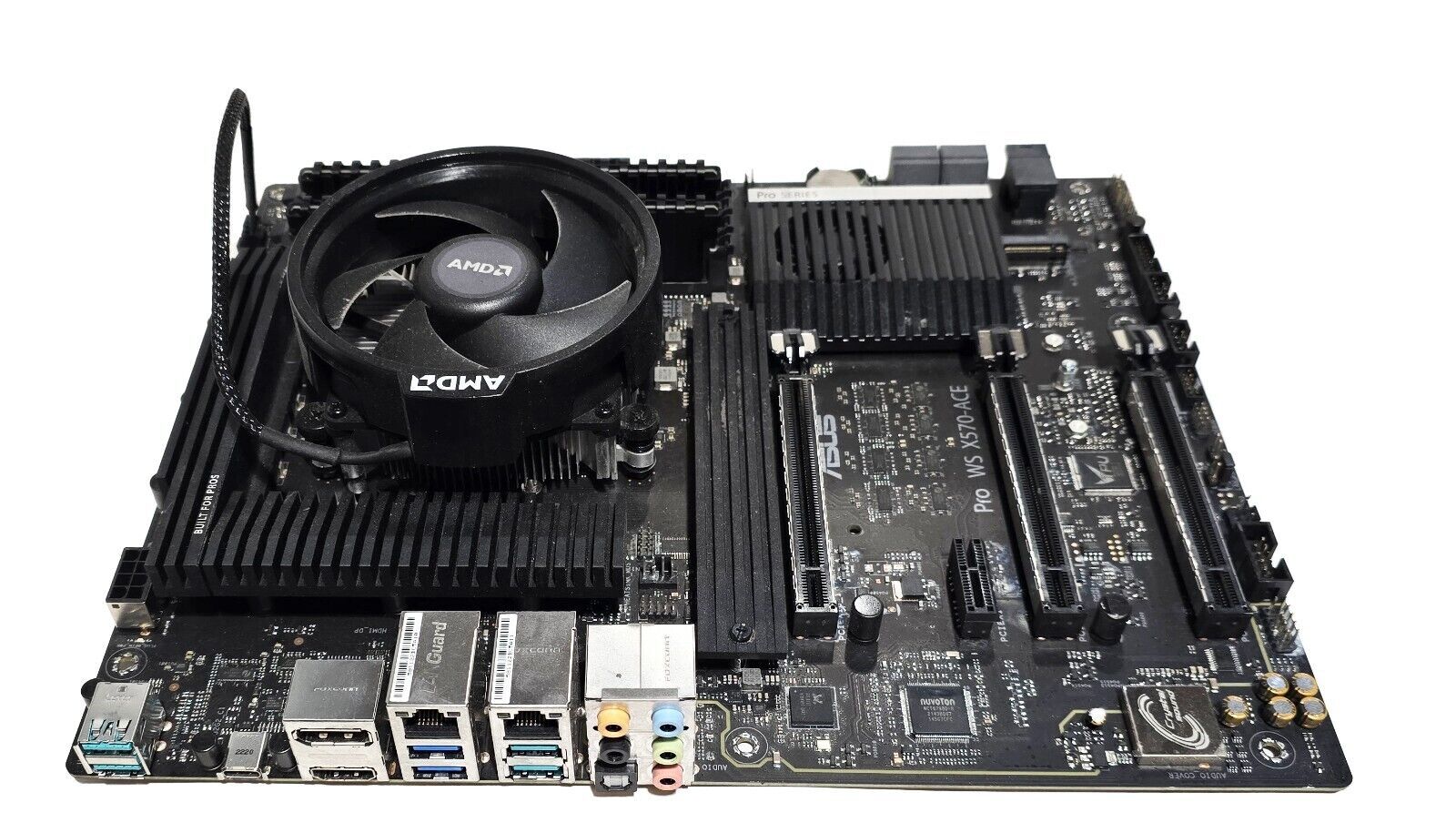

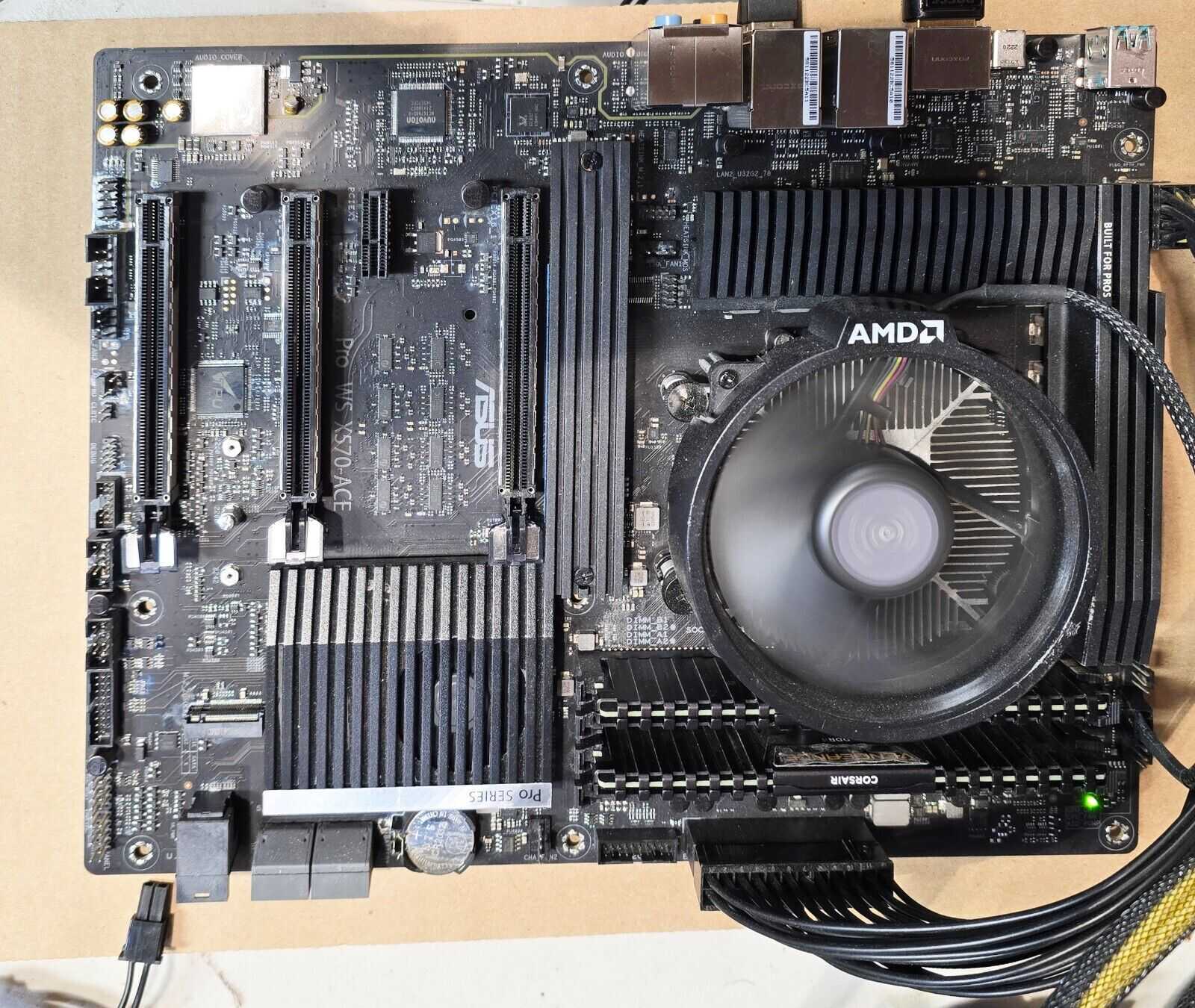

Upgrade your computing experience with this ASUS AMD AM4 PRO WS X570-ACE Motherboard. This motherboard is designed to cater to your needs, whether you’re into casual computing, graphic design, or gaming. With its Socket AM4 and compatibility with AMD CPUs, you can be assured of optimal performance. This motherboard has four memory slots and supports DDR4 SDRAM, with a total capacity of 32GB. It also has various input/output ports, including Optical S/PDIF Out, DisplayPort, HDMI, and Ethernet (RJ-45). The ASUS AMD AM4 PRO WS X570-ACE Motherboard also features on-board audio, multi-GPU support, and dual LAN, making it a versatile choice for any user.
General Specifications:
- Form Factor: ATX
- Chipset: AMD X570
- Socket: AM4
- Supported Processors: AMD Ryzen 2nd and 3rd Generation, AMD Ryzen 5000 Series
Memory:
- Memory Slots: 4 x DIMM
- Memory Type: DDR4
- Maximum Memory: 128GB
- Memory Speeds: Up to 4400 MHz (OC)
Expansion Slots:
- PCIe x16 Slots: 2 x PCIe 4.0/3.0 x16 (supports x16, x8/x8 configurations)
- PCIe x1 Slots: 1 x PCIe 4.0/3.0 x1
Storage:
- M.2 Slots: 3 x M.2 (Key M)
- 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIe 4.0 x4 mode)
- SATA Ports: 4 x SATA 6Gb/s
Networking:
- Ethernet:
- 1 x Intel® I211-AT Gigabit LAN
- 1 x Realtek® RTL8117 (for remote management)
USB:
- Rear USB Ports:
- 3 x USB 3.2 Gen 2 Type-A
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.2 Gen 1 Type-A
- 4 x USB 2.0
- Internal USB Headers:
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0 headers
Audio:
- Audio Chipset: Realtek S1220A
- Audio Channels: 8-channel High Definition Audio
Miscellaneous:
- VRM Design: 12+2 power stages
- Cooling Features:
- Active chipset heatsink
- Multiple temperature sensors
- Hybrid fan headers
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Other Features:
- ASUS Control Center Express
- ASUS 5-Way Optimization
- ASUS SafeSlot
Rear I/O Ports:
- HDMI: 1 x HDMI
- Ethernet: 2 x RJ-45 ports
- Audio Ports: 5 x Audio jacks, 1 x S/PDIF out
- USB Ports: As listed above
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 15 × 15 × 7 in |
| SOCKET TYPE | Socket AM4 |
| ITEM LENGTH | 13.5in. |
| MOST SUITABLE FOR | Casual Computing,Graphic Design,Gaming |
| MEMORY TYPE | DDR4 SDRAM |
| ITEM HEIGHT | 3.03in. |
| ITEM WIDTH | 10.75in. |
| COMPATIBLE CPU BRAND | AMD |
| Brand | |
| INPUT/OUTPUT PORTS | Optical S/PDIF Out,DisplayPort,HDMI,Ethernet (RJ-45) |
| FORM FACTOR | ATX |
| EXPANSION SLOTS | M.2,PCI Express x1,PCI Express,PCI Express x16 |
| FEATURES | On-Board Audio,Multi-GPU Support,Dual LAN,On-Board Video Chipset |
| NUMBER OF MEMORY SLOTS | 4 |
| MODEL | PRO WS X570-ACE |
| MPN | |
| Condition | |
| Condition Description | |
| UPC | 0192876322710 |
